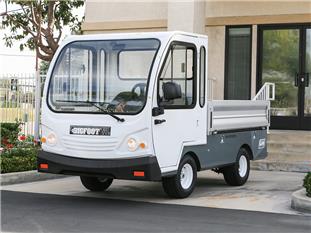

Bigfoot 3000
- Taylor-Dunn
- Electric Utility Vehicles
Key Features & Specs
Equipped with a 48 volt AC motor, our GT drive and rack and pinion steering, this vehicle travels at 18 mph with a distance up to 40 miles.
Standard features include deluxe cab, load range E tires, durable frame design, 4-wheel hydraulic brakes and heavy-duty drive train that ensures reliability and low maintenance costs.
- Dimensions: Weight: 2,265 lb (1027 kg)
- Interior: Instrumentation: Clear View Display (speed, distance, battery status, hours, input diagnostics, and fault code display), Dual USB Port, Emergency Cut-off Switch, Light Switch, Forward/Off/Reverse Selector, Reverse Buzzer, High/Low Speed Switch, Key Switch, DC/DC Converter (on with key switch) and Electric Horn
- Dimensions: Width: 57 in (145 cm)
- Chassis: Powertrain: Type: Electric Power: 115 VAC, 60 Hz Transmission: Drive: Helical Gear, Oil Bath Transaxle, GT Automotive Differential Controller: Solid State Self Diagnostic AC Speed Controller
- Dimensions: Length: 135 in (343 cm)
- Chassis: Brakes: Rear: Hydraulic Disc Front: Hydraulic disc Parking: Electric
- Interior: Seats: Driver: Black adjustable bucket seat, electrical interlock Passenger: Black Adjustable Bucket Seat
- Dimensions: Outside Turning Radius: 145 in (368 cm)
- Dimensions: Height: Less Cab: 74 in (188 cm) With Cab:
- Chassis: Frame Construction: 12 Gauge, Smooth Skin, Unitized, Fully Welded, Steel
- Chassis: Tires: Rear: 20.5 x 8 x 10, Load Range E, Pneumatic Front: 20.5 x 8 x 10 Load Range E, Pneumatic
- Performance: Tow Capacity: 10,000 lb (4535 kg)
- Performance: Speed: 18 mph (29 km/h)
- Performance: Passengers: 2
- Performance: Range: 40 miles (64 km)
- Dimensions: Hitch Height: 12.5 in (32 cm)
- Performance: Load Capacity: 3,000 lb (1,360 kg)
- Dimensions: Wheel Base: 62 in (157 cm)
- Chassis: Suspension: Rear: Multi-leaf Springs Front: Multi-leaf springs
- Dimensions: Deck: Width: 48 in (122 cm) Length: 74 in (188 cm) Height: 27.5 in (70 cm)
- Chassis: Steering: Rack and Pinion
- Chassis: Battery: Type: Eight, 260 amp-hour, 6 volt T145 System Voltage: 48V Charger: Built-in, 48V, 115 VAC/60Hz, 1 kW w/ interlock, 17 Amp SCR
