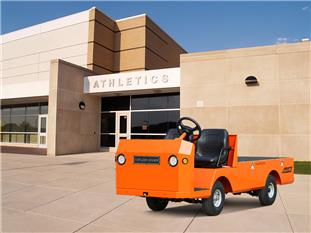

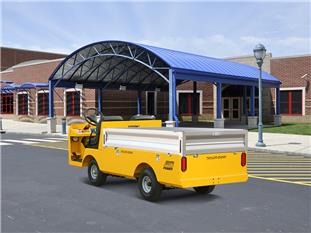

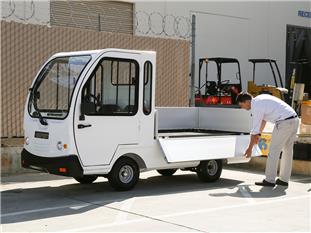

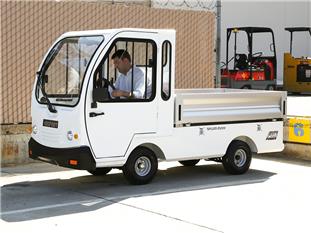

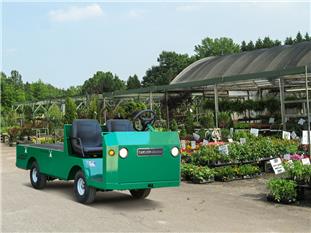

BIGFOOT
- Taylor-Dunn
- Electric Utility Vehicles
Key Features & Specs

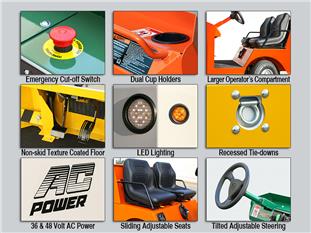

Additional standard features include our GT Drive system, 48 volt AC power, hydraulic disc brakes, regenerative braking, Smart View display, recessed tie-downs, 12 gauge smooth skin, unitized steel body, LED lighting, cupholders, and a heavy duty all gear drive train that ensures reliability and low maintenance costs. This vehicle can be configured to tow 17,500 pounds.
- Performance: Load Capacity: 3,000 lbs (1361 kg)
- Chassis: Battery: Type: Type: 210 Amp Hour, T605, 8 each, 6 volt System Voltage: 48V Charger: Built In, 48V, 115 VAC / 60 Hz, 1kW w/ Interlock, 17 Amp SCR
- Dimensions: Length: 130.5" (331 cm)
- Dimensions: Weight: 1,565 lbs (710 kg.)
- Chassis: Tires: Rear: 5.7 x 8, Load Range C, Pneumatic Front: 5.7 x 8, Load Range C, Pneumatic
- Performance: Tow Capacity: 7,500 lbs (3402 kg)
- Chassis: Suspension: Rear: Multi-Leaf Springs Front: Multi-Leaf Springs
- Interior: Instrumentation: Smart View Display, Reverse Buzzer, Forward / Off / Reverse Selector, Key Switch, Light Switch, High / Low Speed Switch, Electric Horn, Emergency Power Cut-off Switch, USB Port, DC/DC Converter
- Dimensions: Height: Less Cab: 51.5" (131 cm) With Cab: 73" (1854 mm)
- Chassis: Brakes: Rear: Hydraulic Disc Front: Parking: Y
- Interior: Seats: Driver: Black Adjustable Bucket Seat, Driver’s Seat Electrical Interlock Passenger: Black Adjustable Bucket Seat
- Dimensions: Deck: Width: 44" (1117 mm) Length: 77" (1955 mm) Height: 27.5" (698 mm)
- Chassis: Frame Construction: 12 Gauge, Smooth Skin, Unitized, Fully Welded, Steel
- Dimensions: Outside Turning Radius: 137" (3480 mm)
- Performance: Passengers: 2
- Chassis: Powertrain: Type: Electric Power: 115 VAC, 60 Hz Transmission: Helical Gear, Oil Bath Transaxle, GT Automotive Differential Drive: Controller: Solid State Self Diagnostic AC Speed Controller
- Performance: Range: 40 Miles (64 km)
- Chassis: Steering: Rack and Pinion
- Dimensions: Wheel Base: 62" (1574 mm)
- Dimensions: Width: 44" (112 cm)
- Performance: Speed: 12 mph (19.3 km/h)
