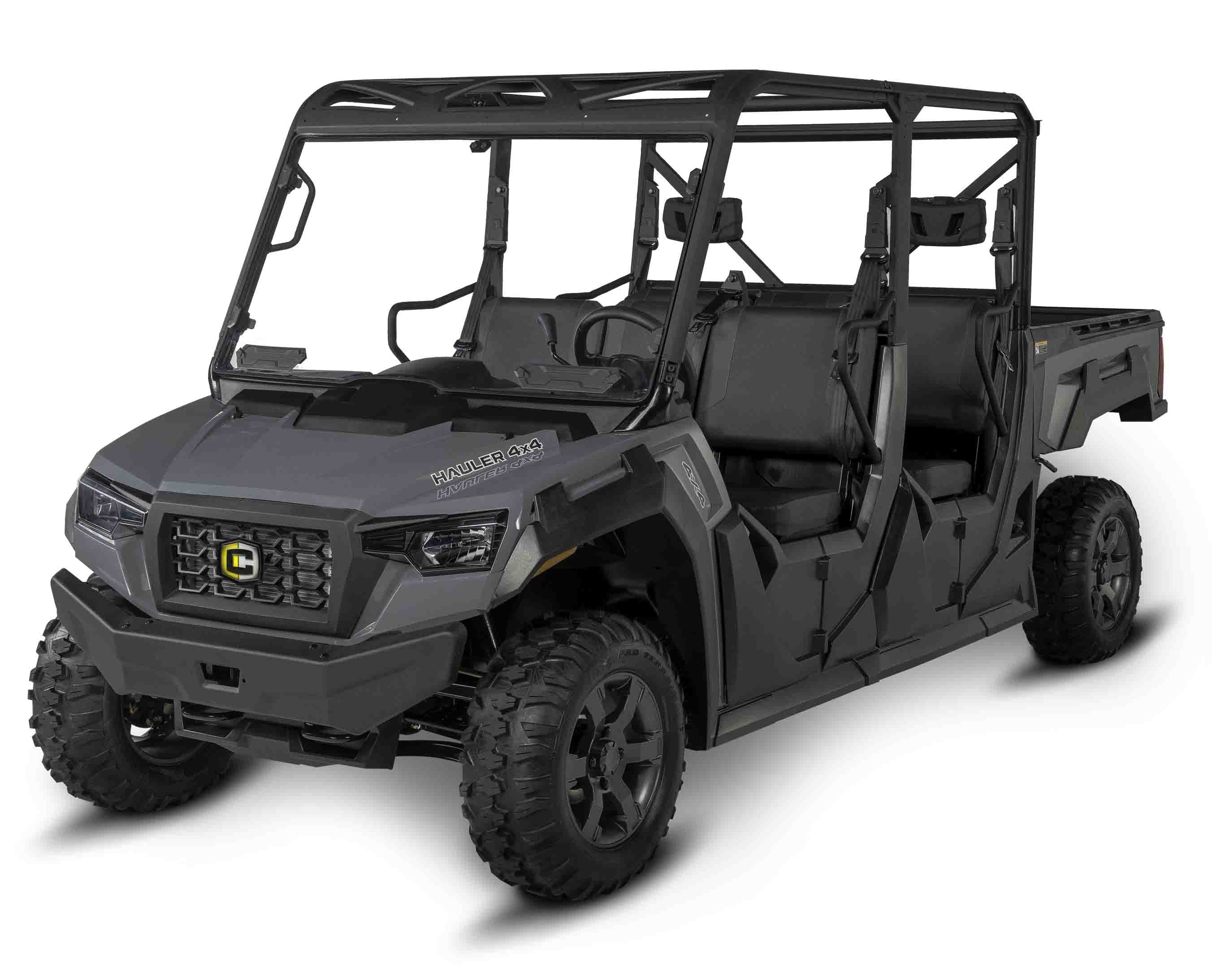

Hauler® 4x4 Crew

  • Cushman
  • Utility Vehicles

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Overview

Bring more power and durability to your job site with the new Cushman® Hauler® 4x4 series of vehicles.  Available in a quiet 50-hp gas or robust 25-hp diesel engine with a 1500-lb load capacity, these vehicles will tackle your most strenuous tasks without breaking a sweat.

Cushman equipment only available at our Concord, CA location.
  • Electronic Power Steering
  • 25-hp Diesel Engine
  • 2,000-lb Towing Capacity
  • 14.72-cu-ft Cargo Bed
  • 6-Passenger
  • 3-Passenger
  • 1,000-lb Bed Load Capacity
  • 1,500-lb Vehicle Load Capacity
  • 50-hp Gas Engine
  • + Expand All
  • - Close All
  • Model Table
      Hauler 4x4 Gas Hauler 4x4 Diesel Hauler 4x4 Crew Gas Hauler 4x4 Crew Diesel
    Power Source 50 HP, 812 cc, 4 Stroke Gas Engine 25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine 50 HP, 812 cc, 4 Stroke Gas Engine 25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine
    Valve Train 3 Cylinder DOHC 3 Cylinder 3 Cylinder DOHC 3 Cylinder
    Horsepower (KW) 50 HP, (37.3 kW) 25 HP, 1028 cc 50 HP, (37.3 kW) 25 HP, 1028 cc
    Curb Weight 1,657 lb (751.6 kg) 1,608 lb (729.4 kg) 1,931 lb (875.9 kg) 1,931 lb (875.9 kg)
  • Curb Weight: 1,657 lb (751.6 kg)
  • Frame: Welded Steel with E-Shield™ ecoat plus DuraShield™ Powder Coat
  • Body & Finish: TPO Molded in Color
  • Horsepower (KW): 50 HP, (37.3 kW)
  • Air Cleaner: 2 Stage Air Cleaner
  • Parking Brake: Parking Gear, Activated Via Shifter
  • Cargo Deck Material: Poly
  • Towing Capacity: 2000 lb (907.2 kg)
  • Overall Width: 63 in (160 cm)
  • Wheel Track: 51 in (129.5 cm)
  • Battery (Qty/Type): One 12-Volt Maintenance Free
  • Standard Color: Dynamic Charcoal
  • Cargo Deck Capacity: 14.68 cu. ft. (0.42 cu. m.)
  • Overall Height: 74 in (188 cm)
  • Drive Train: Continuously Variable Transmission (CVT)
  • Speed: 25 mph (40.2 kph)
  • Wheel Base: 85 in (215.9 cm)
  • Oil Filter: Automotive, Screw On
  • Steering: Rack and Pinion, Tilt Steering Wheel
  • Cooling System: Liquid with Fan
  • Suspension: (Front) Double A-Arm with 10 in (25.4 cm) Travel; (Rear) Double A-Arm with 9.5 in (24.1 cm) Travel
  • Electrical System: 12V, Alternator
  • Key or Pedal Start: Key
  • Gear Selection: Mechanical, Steering Column Mounted
  • Seating Capacity: 3-Person
  • Tires: 25 x 10.5 - 12 All Terrain
  • Valve Train: 3 Cylinder DOHC
  • Ground Clearance: 10.75 in (27.4 cm)
  • Fuel Capacity: 10 gal (37.9 L)
  • Overall Length: 126 in (320 cm)
  • Transaxle: 2/4WD Front, Selectable Locking Rear
  • Power Source: 50 HP, 812 cc, 4 Stroke Gas Engine
  • Service Brake: Dual Piston Front/Single Piston Rear Calipers
  • Vehicle Load Capacity: 1500 lb (680.4 kg)
  • Bed Load Capacity: 1000 lb (453.6 kg)
