Key Features & Specs

Overview

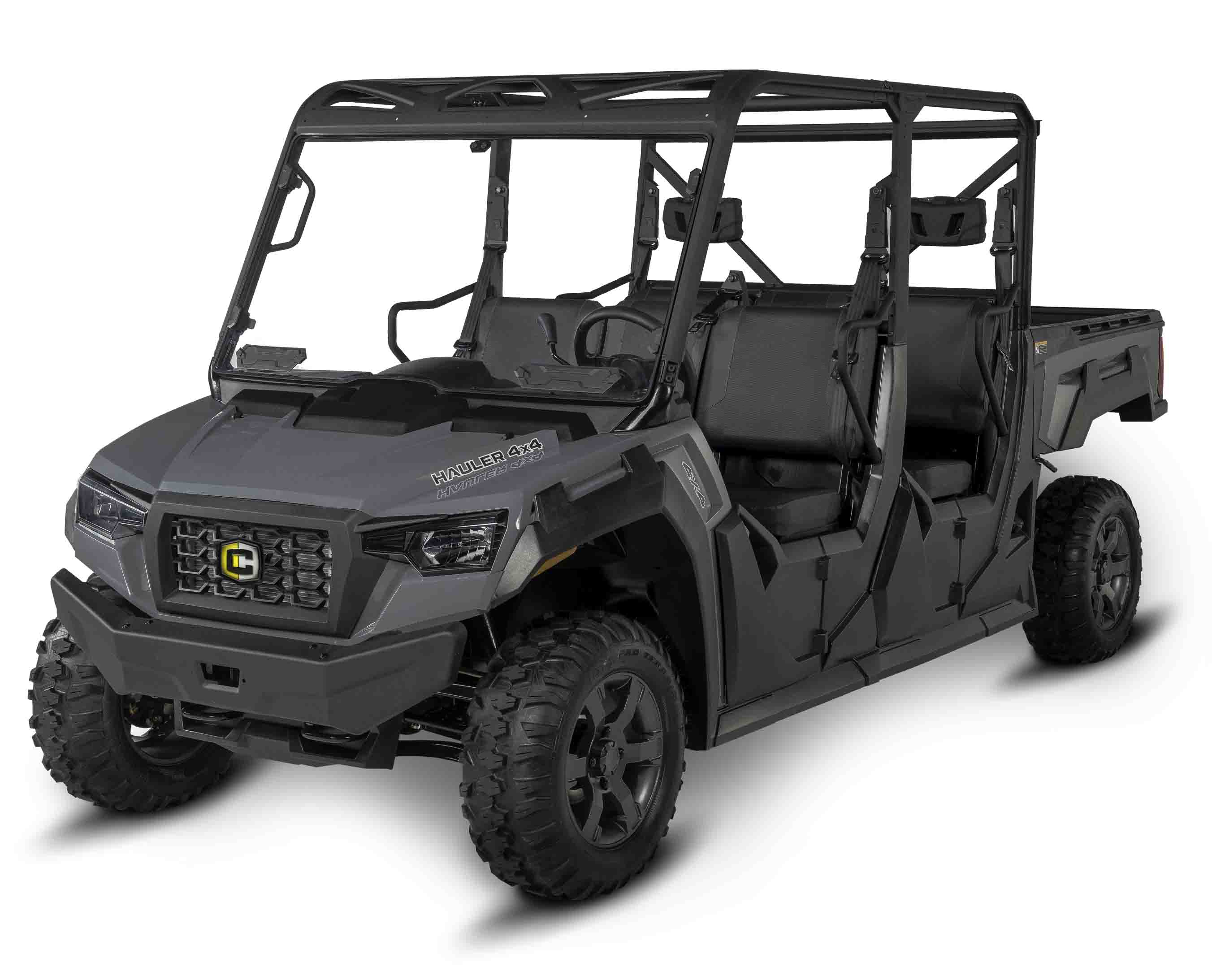

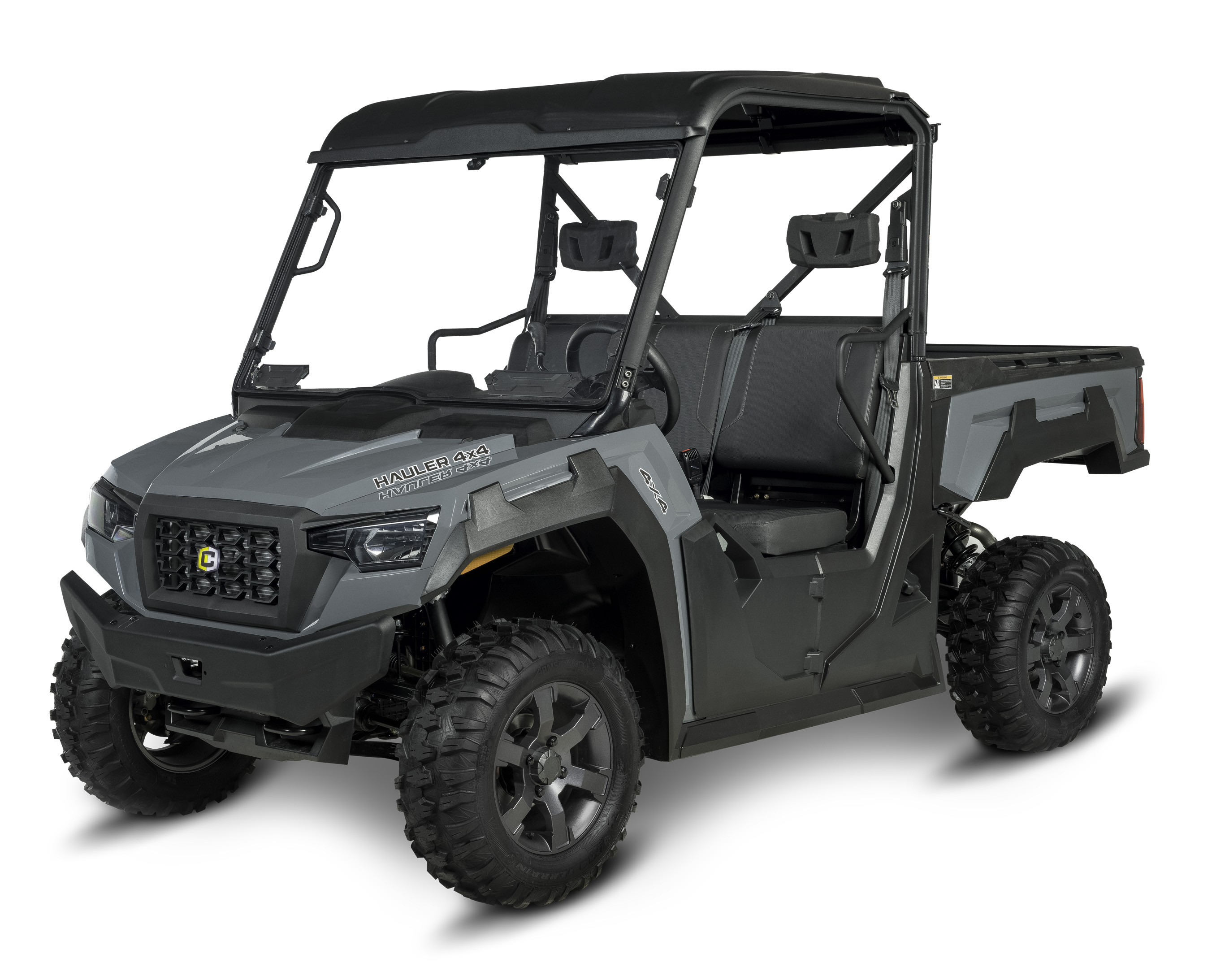

Bring more power and durability to your job site with the new Cushman® Hauler® 4x4 series of vehicles.  Available in a quiet 50-hp gas or robust 25-hp diesel engine with a 1500-lb load capacity, these vehicles will tackle your most strenuous tasks without breaking a sweat.

Cushman equipment only available at our Concord, CA location.
  • 2,000-lb Towing Capacity
  • 1,000-lb Bed Load Capacity
  • 50-hp Gas Engine
  • 14.72-cu-ft Cargo Bed
  • 3-Passenger
  • 25-hp Diesel Engine
  • 1,500-lb Vehicle Load Capacity
  • 6-Passenger
  • Electronic Power Steering
  • + Expand All
  • - Close All
  • Model Table
      Hauler 4x4 Gas Hauler 4x4 Diesel Hauler 4x4 Crew Gas Hauler 4x4 Crew Diesel
    Power Source 50 HP, 812 cc, 4 Stroke Gas Engine 25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine 50 HP, 812 cc, 4 Stroke Gas Engine 25 HP (18.6 kW), 1.03L Liquid Cooled, 3 Cylinder Diesel Engine
    Valve Train 3 Cylinder DOHC 3 Cylinder 3 Cylinder DOHC 3 Cylinder
    Horsepower (KW) 50 HP, (37.3 kW) 25 HP, 1028 cc 50 HP, (37.3 kW) 25 HP, 1028 cc
    Curb Weight 1,657 lb (751.6 kg) 1,608 lb (729.4 kg) 1,931 lb (875.9 kg) 1,931 lb (875.9 kg)
  • Seating Capacity: 3-Person
  • Tires: 25 x 10.5 - 12 All Terrain
  • Cargo Deck Capacity: 14.68 cu. ft. (0.42 cu. m.)
  • Oil Filter: Automotive, Screw On
  • Wheel Base: 85 in (215.9 cm)
  • Horsepower (KW): 50 HP, (37.3 kW)
  • Battery (Qty/Type): One 12-Volt Maintenance Free
  • Parking Brake: Parking Gear, Activated Via Shifter
  • Body & Finish: TPO Molded in Color
  • Overall Height: 74 in (188 cm)
  • Cargo Deck Material: Poly
  • Service Brake: Dual Piston Front/Single Piston Rear Calipers
  • Power Source: 50 HP, 812 cc, 4 Stroke Gas Engine
  • Fuel Capacity: 10 gal (37.9 L)
  • Wheel Track: 51 in (129.5 cm)
  • Overall Length: 126 in (320 cm)
  • Curb Weight: 1,657 lb (751.6 kg)
  • Key or Pedal Start: Key
  • Frame: Welded Steel with E-Shield™ ecoat plus DuraShield™ Powder Coat
  • Transaxle: 2/4WD Front, Selectable Locking Rear
  • Suspension: (Front) Double A-Arm with 10 in (25.4 cm) Travel; (Rear) Double A-Arm with 9.5 in (24.1 cm) Travel
  • Steering: Rack and Pinion, Tilt Steering Wheel
  • Valve Train: 3 Cylinder DOHC
  • Bed Load Capacity: 1000 lb (453.6 kg)
  • Cooling System: Liquid with Fan
  • Vehicle Load Capacity: 1500 lb (680.4 kg)
  • Standard Color: Dynamic Charcoal
  • Speed: 25 mph (40.2 kph)
  • Ground Clearance: 10.75 in (27.4 cm)
  • Air Cleaner: 2 Stage Air Cleaner
  • Overall Width: 63 in (160 cm)
  • Gear Selection: Mechanical, Steering Column Mounted
  • Towing Capacity: 2000 lb (907.2 kg)
  • Drive Train: Continuously Variable Transmission (CVT)
  • Electrical System: 12V, Alternator
