TH 5.8 MINING

Magni
Telescopic Handlers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

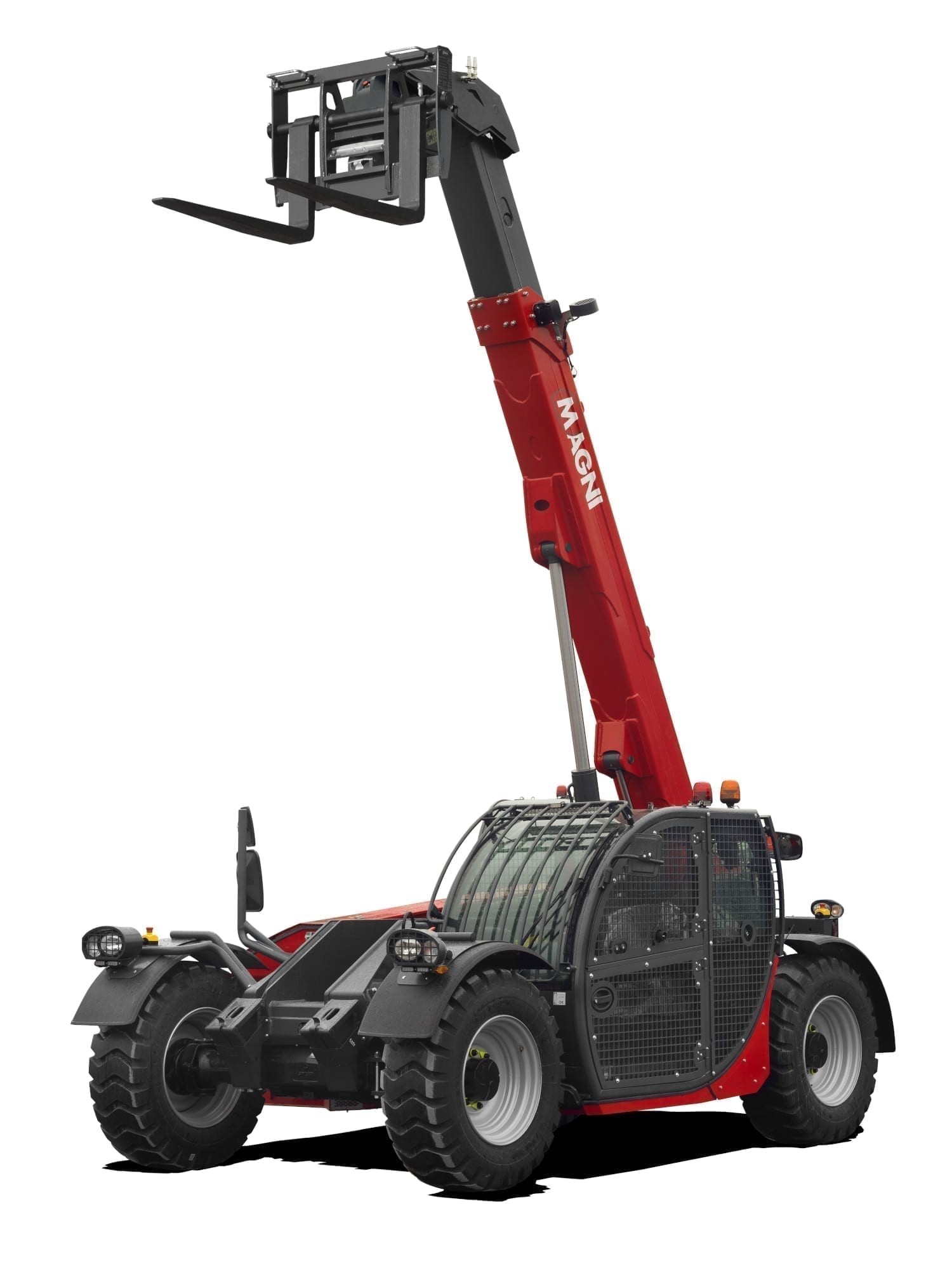

The TH 5.8 MINING is a fixed telescopic handler especially suitable for mining.

Powered by a Deutz 55 kW engine, it can safely reach a height of 7.60 m on rough terrain thanks to its 4-wheel drive.

The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

THIS MODEL FEATURES ALSO FEATURES AS STANDARD:

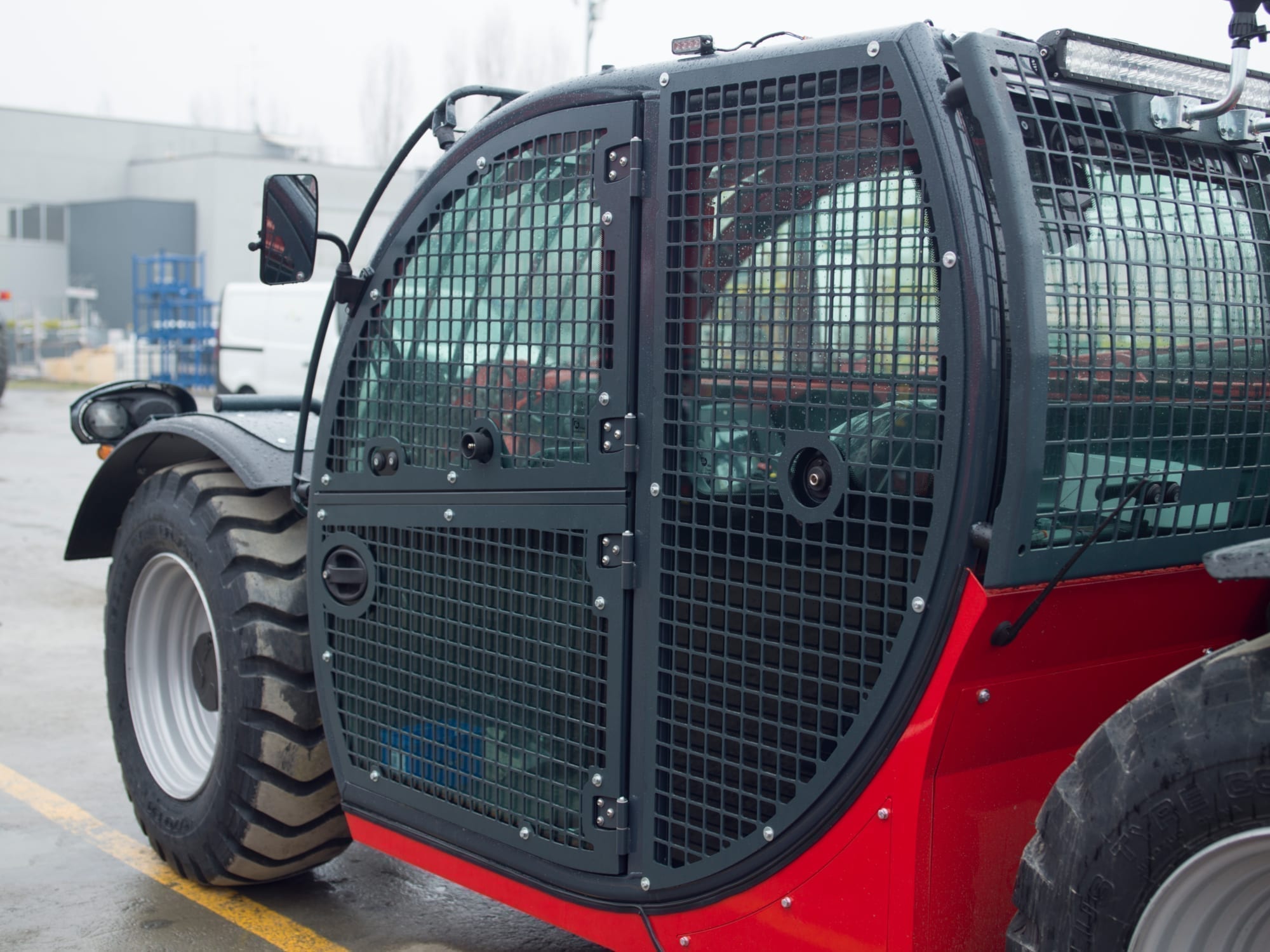

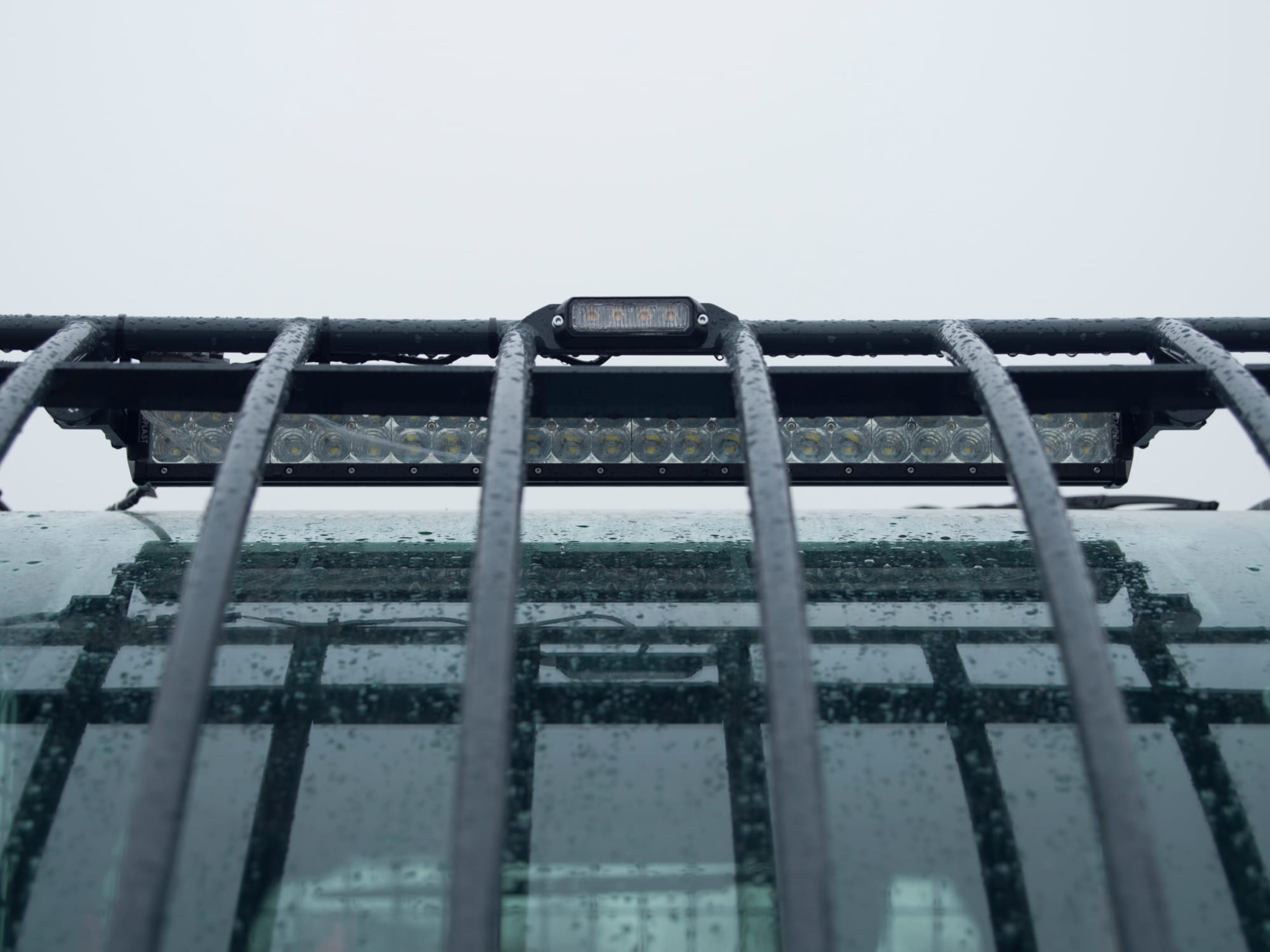

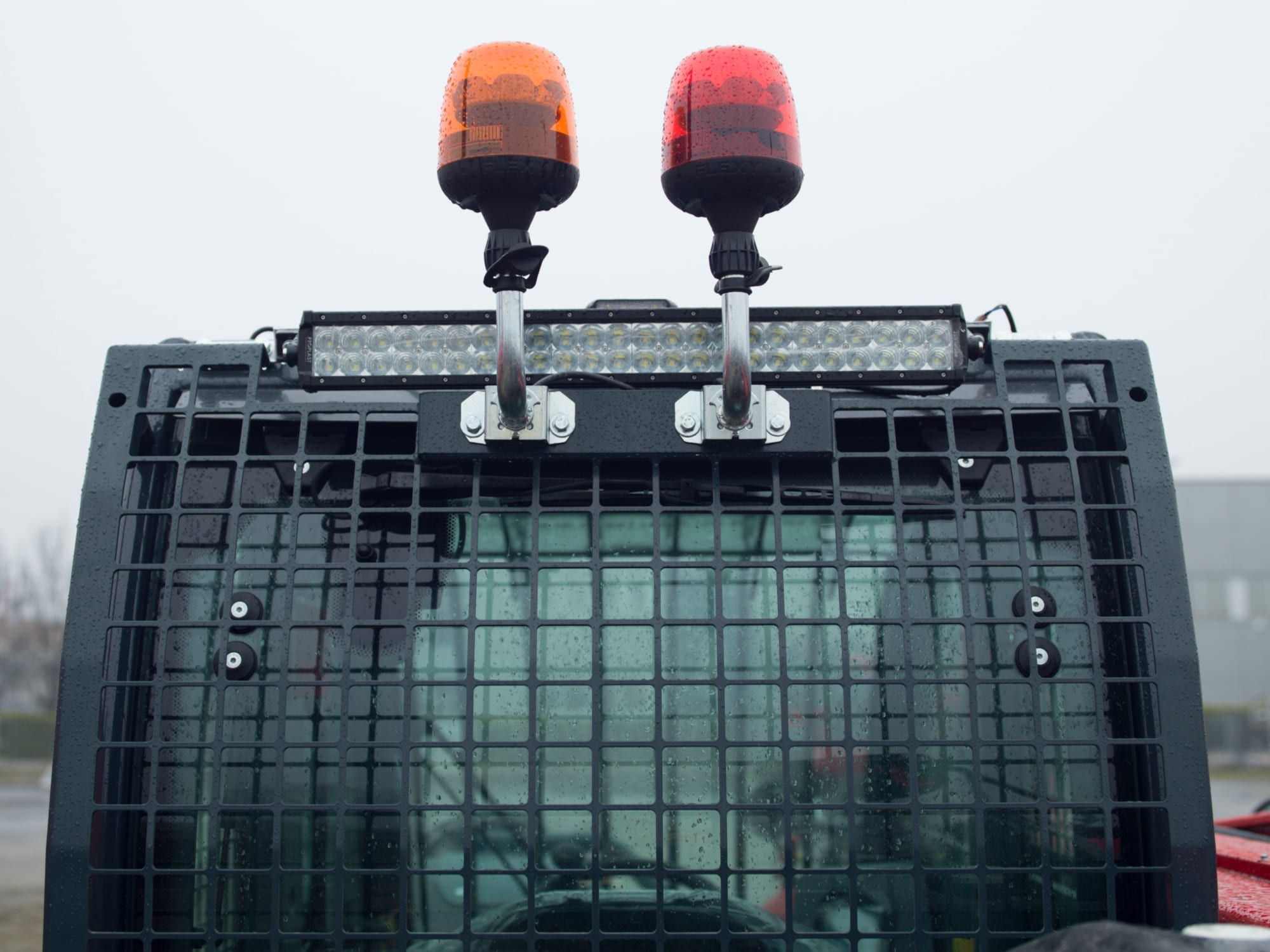

-Cab and light protection

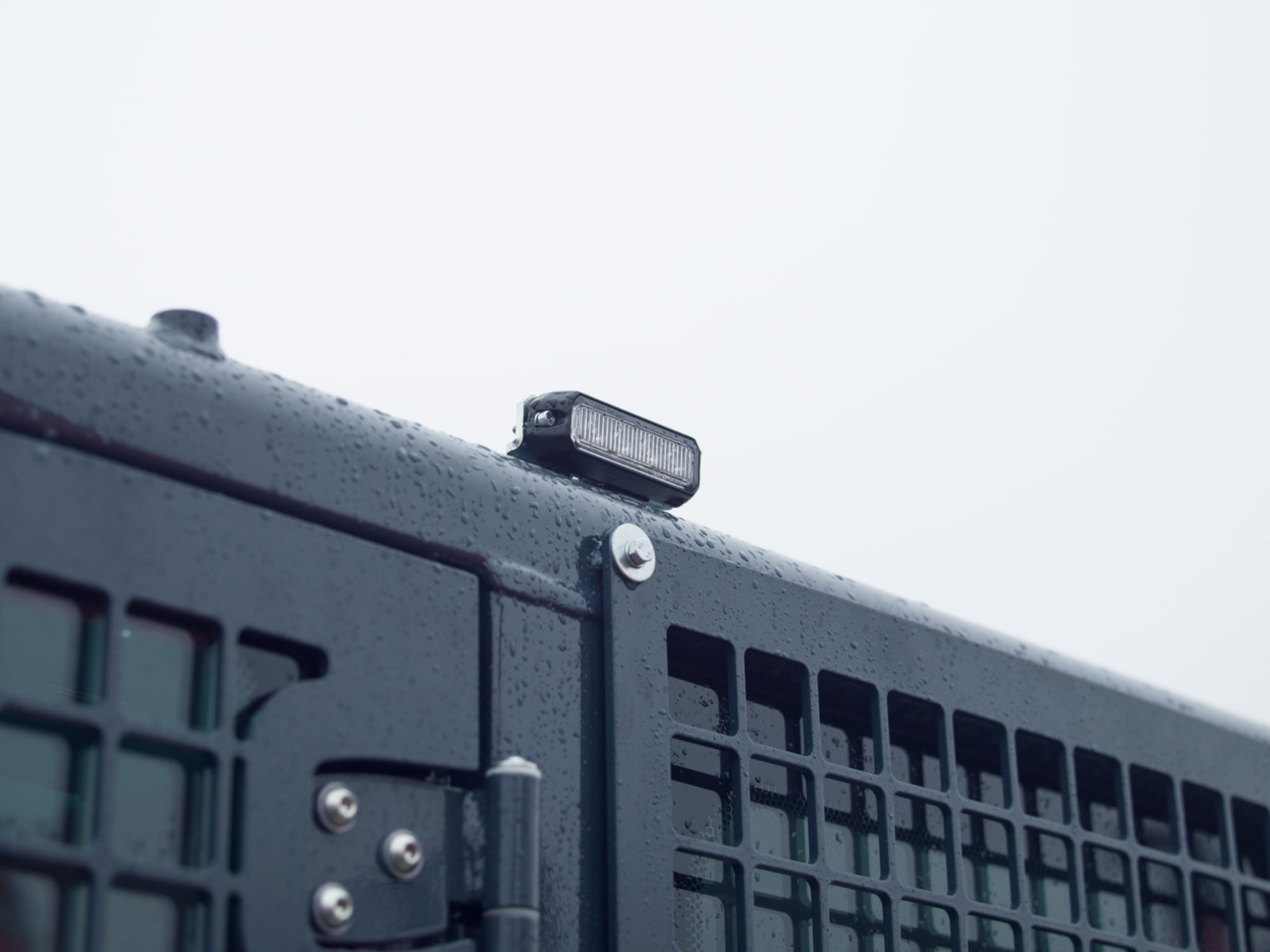

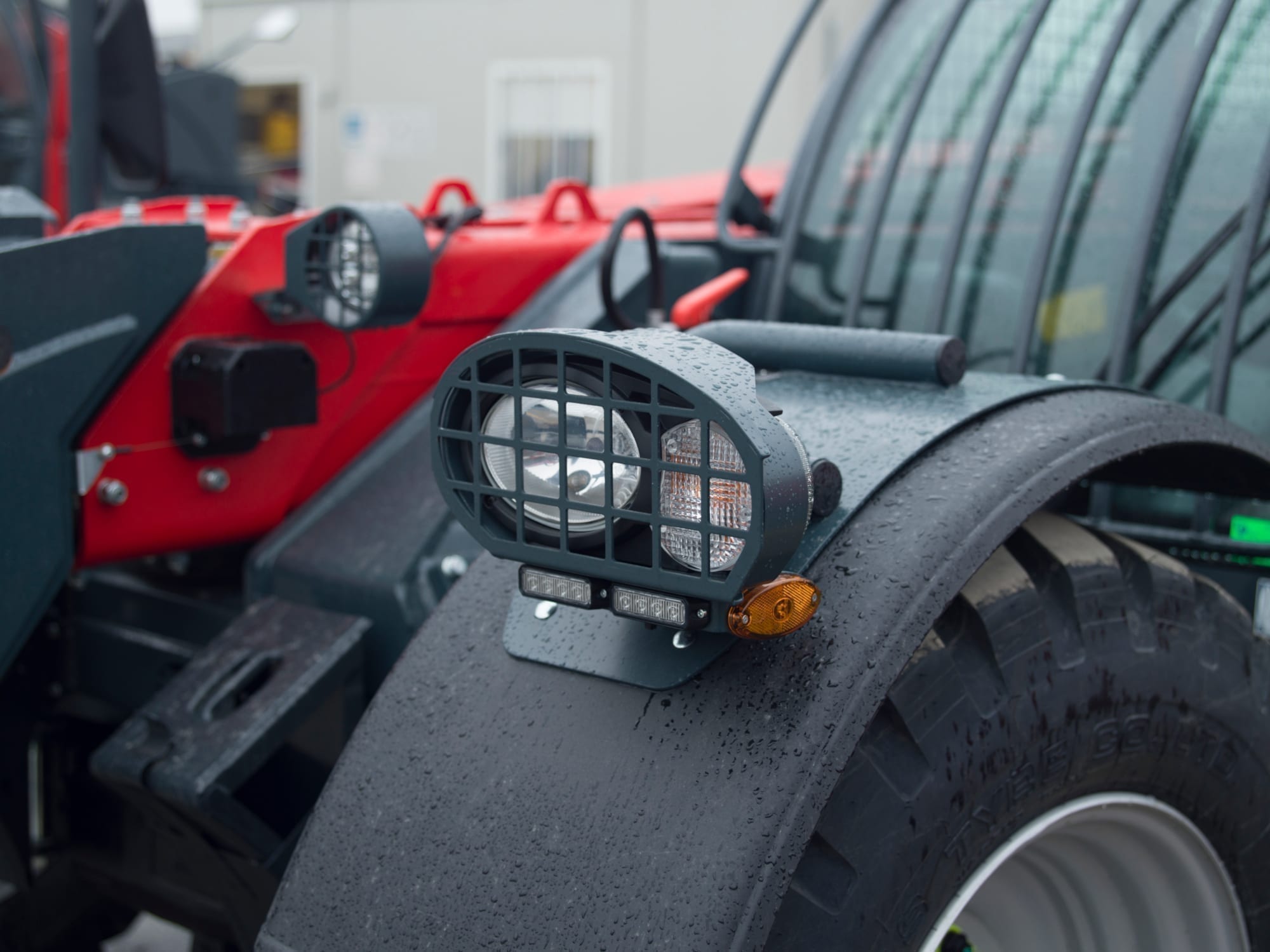

– LED working lights on the cab and the boom for greater visibility

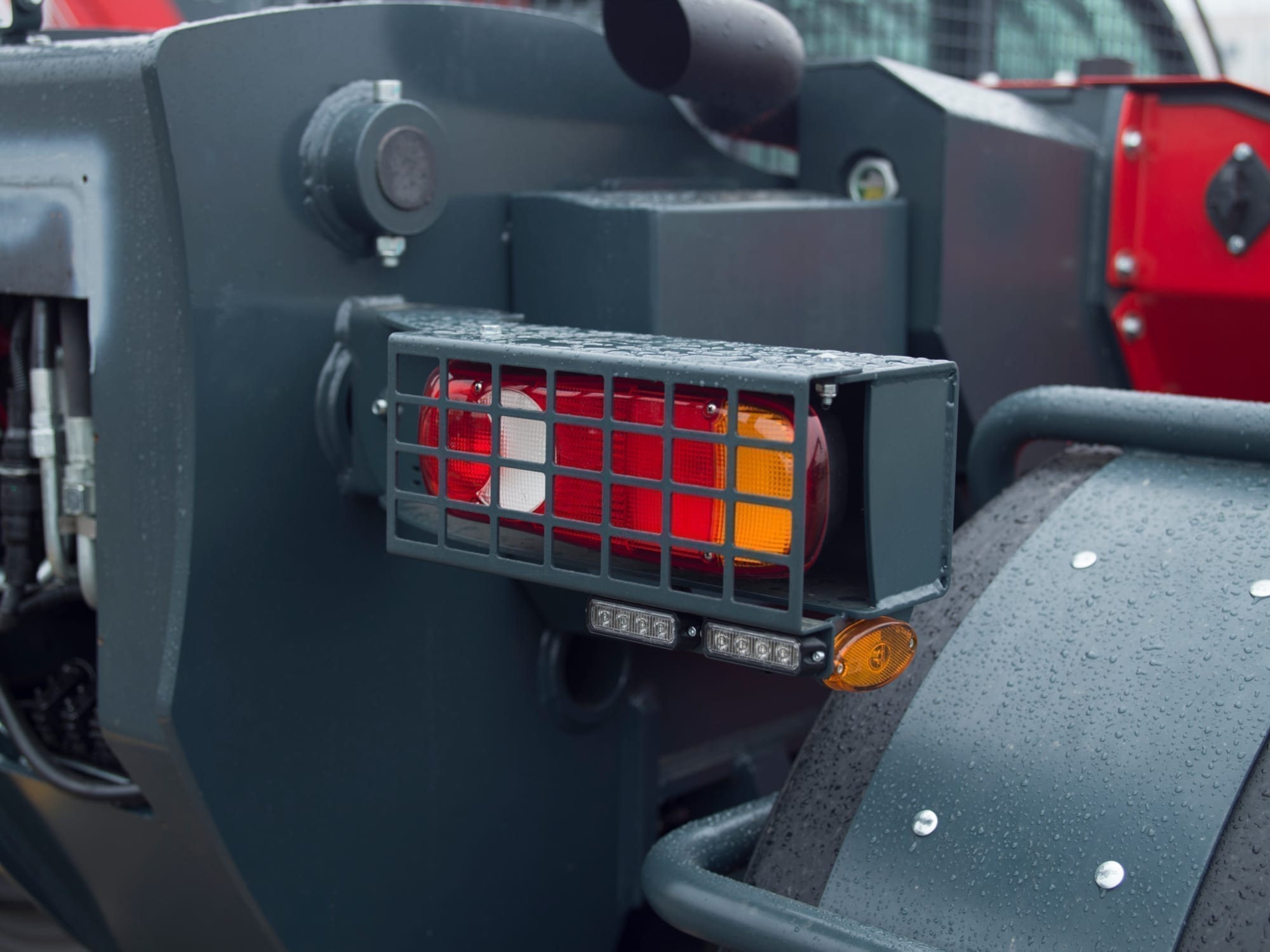

– Directional driving and reversing lights

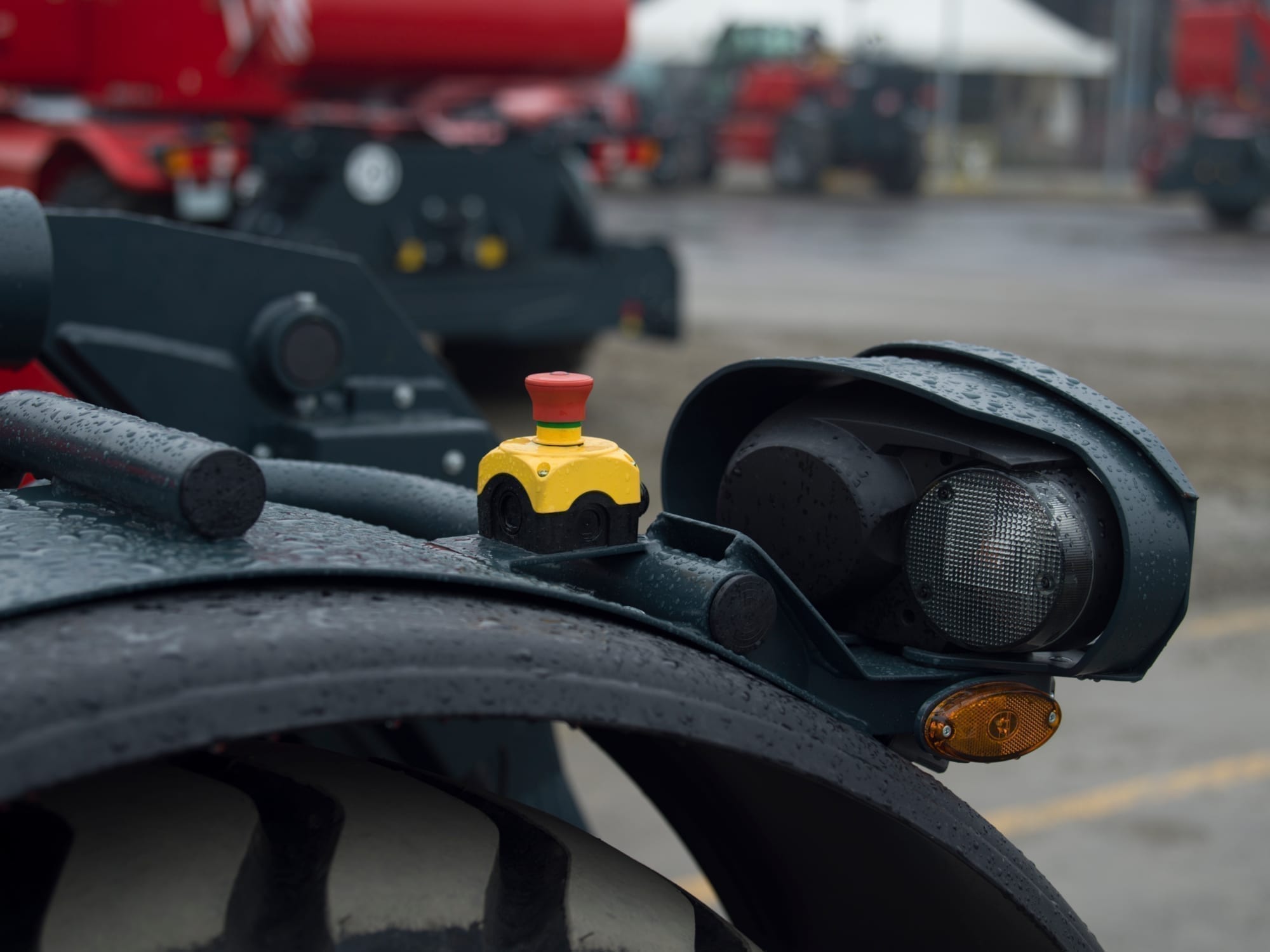

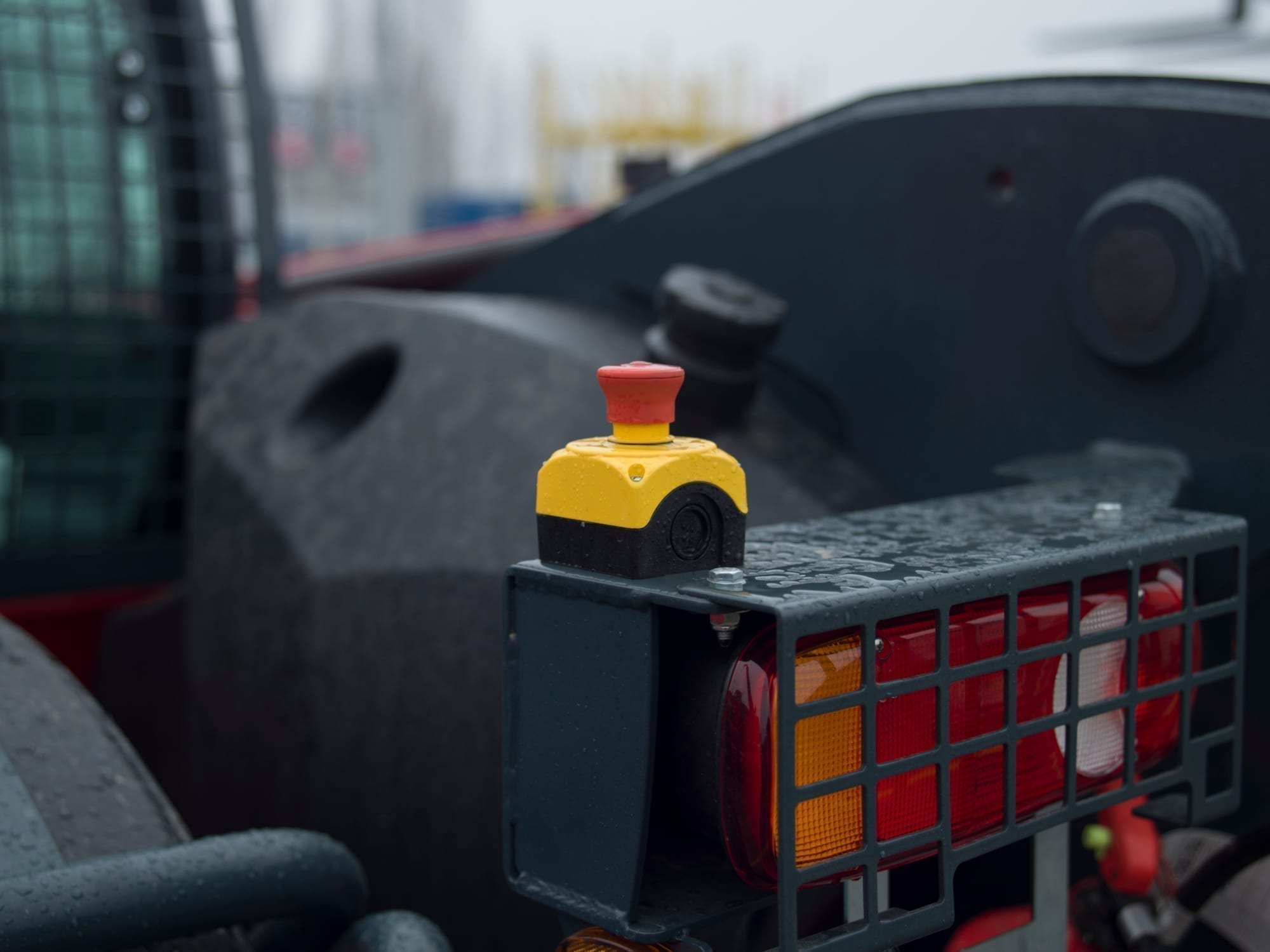

– Emergency stop buttons, inside and outside the cab

– Load monitoring via RCL system (Rated Capacity Limiter)

– 50 PPM catalytic converter

– Air conditioning system

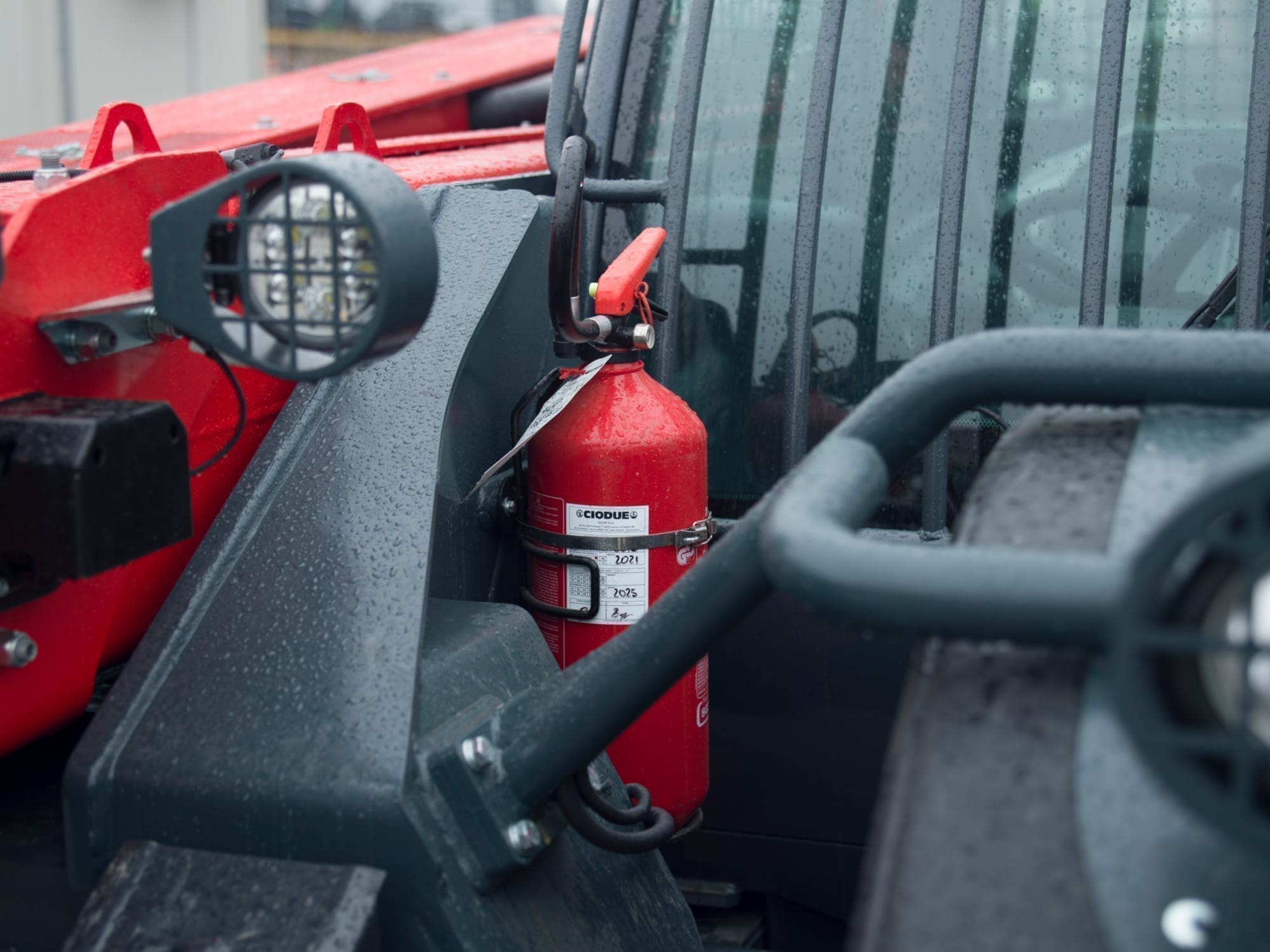

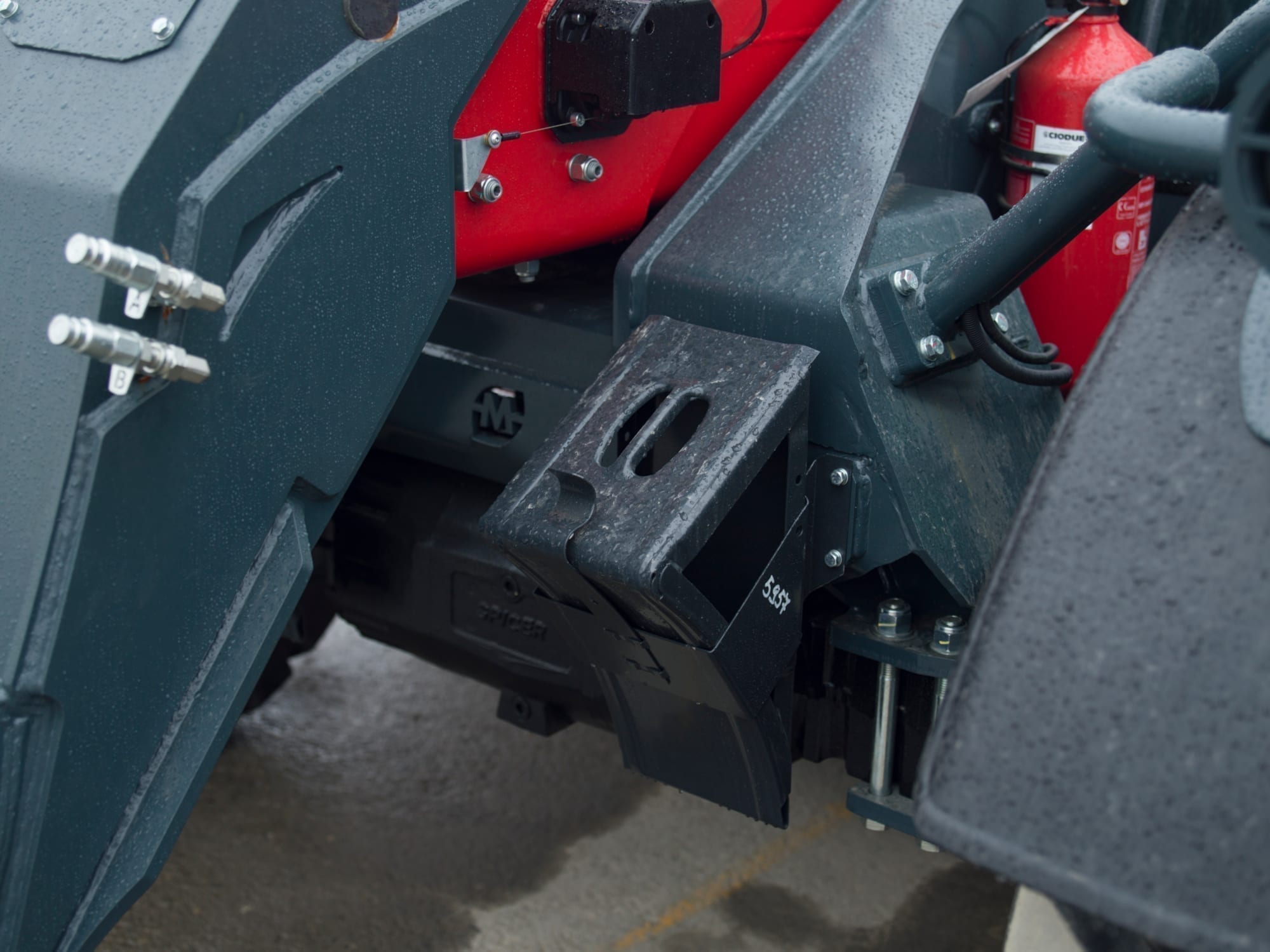

– 6 kg external fire extinguishers

For full list of standard equipment, consult the TH catalogue.

Magni equipment only available in Western Washington.

Specifications

Travel Speed: 25 Mph
Automatic accessory recognition: Yes
Number of gears: 2/2
Engine: Deutz TCD 3,6 L4 EDG Stage IIIA
EN 13000: concerning standards for hydraulic cranes
Lifting capacity: 11.000 lbs
Unladen weight: 18.739,3 lbs
Rated power: 74,4 kW (101,2 hp) @ 2.200 rpm
Ground clearance: 11''
EN 1459-1: concerning standards for slewing variable-reach trucks
Width: 8' 4''
UE 2016/1628: concerning engine emissions standards
Lifting height: 25'
Length: 17' 15''
Hydraulic system: 350 bar Load Sensing
