TH 5,5.19

Magni
Telescopic Handlers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

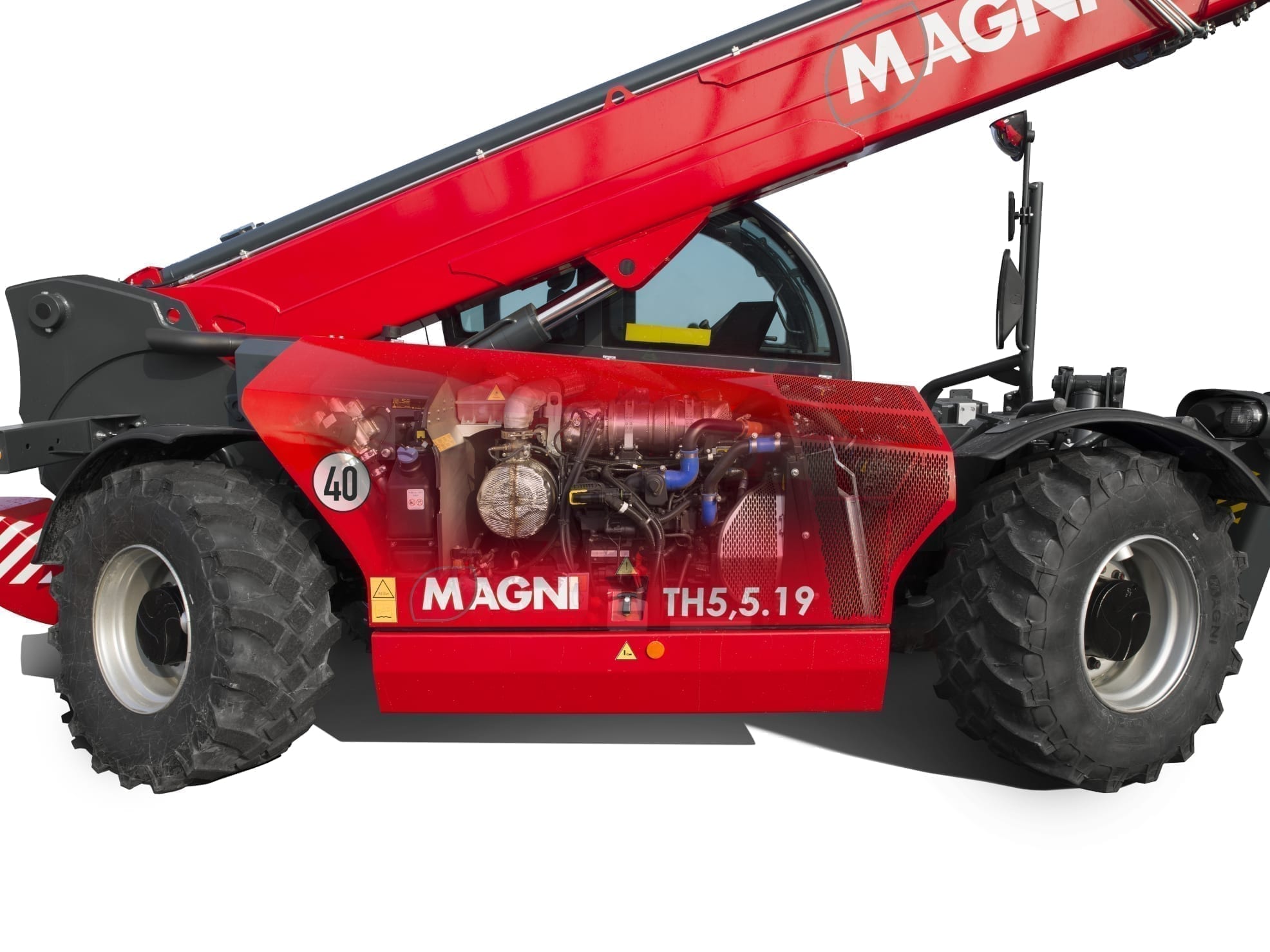

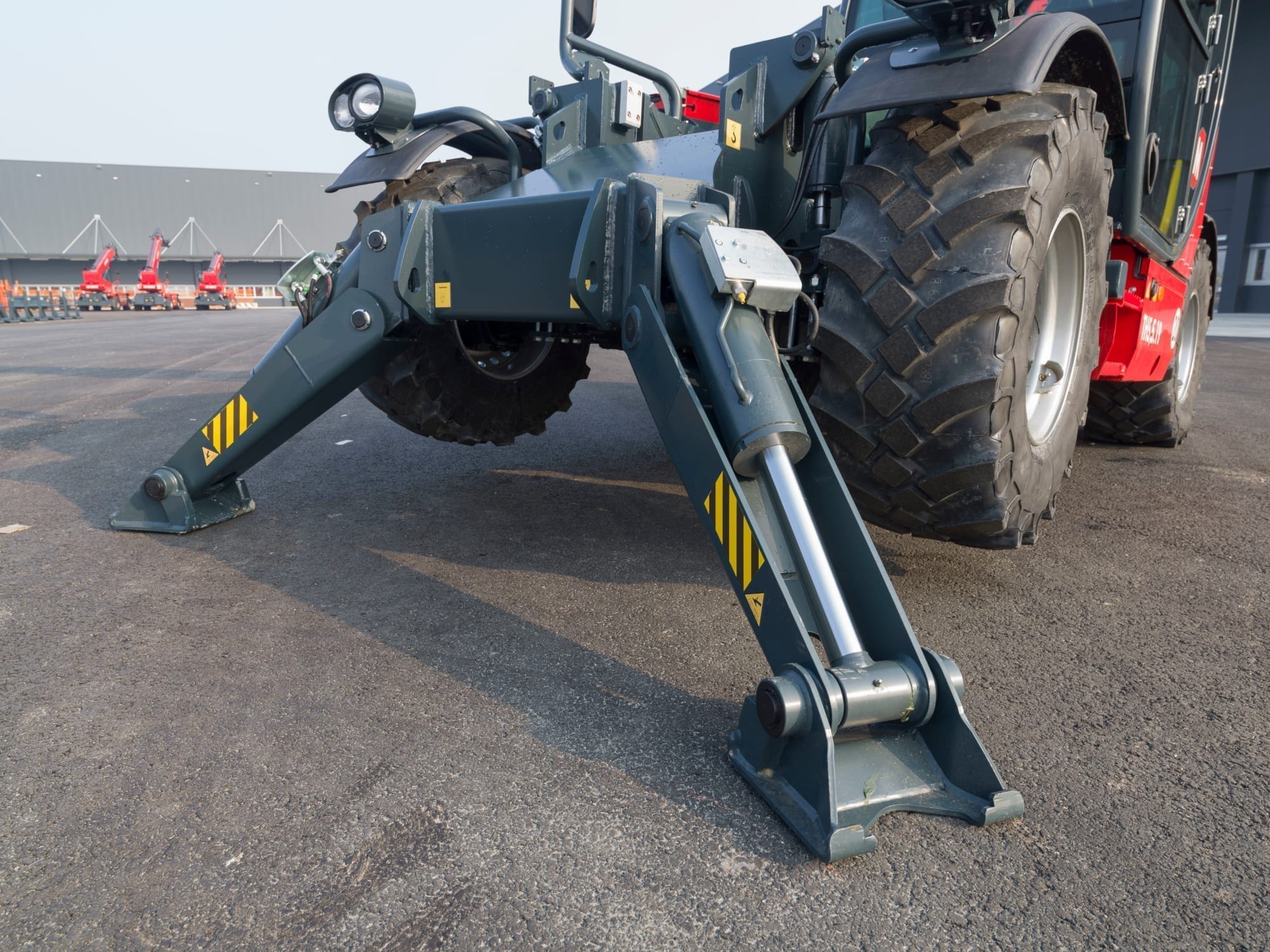

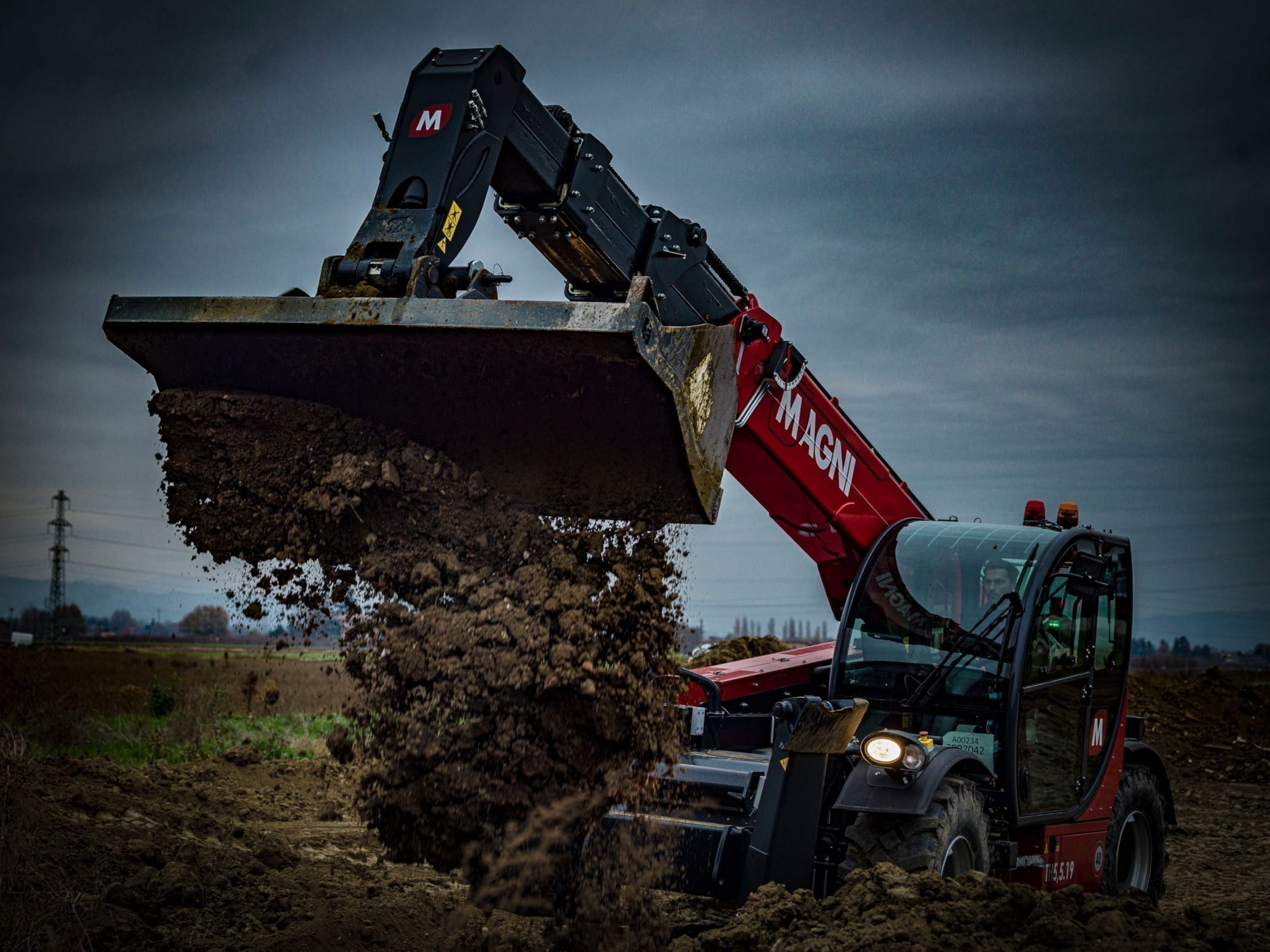

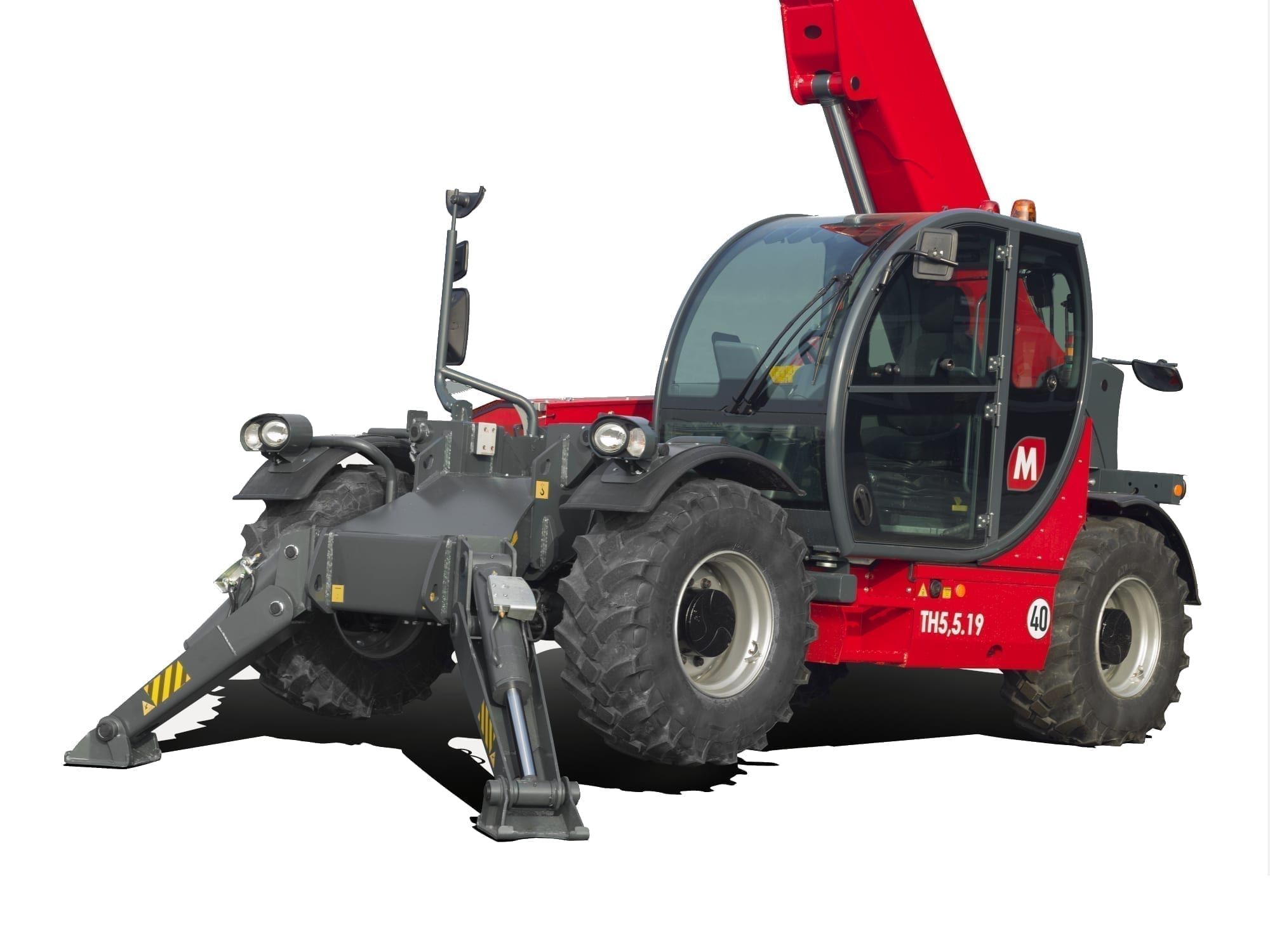

The TH 5,5.19 is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 55 kW engine, it can safely reach a height of 18.80 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers.

The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

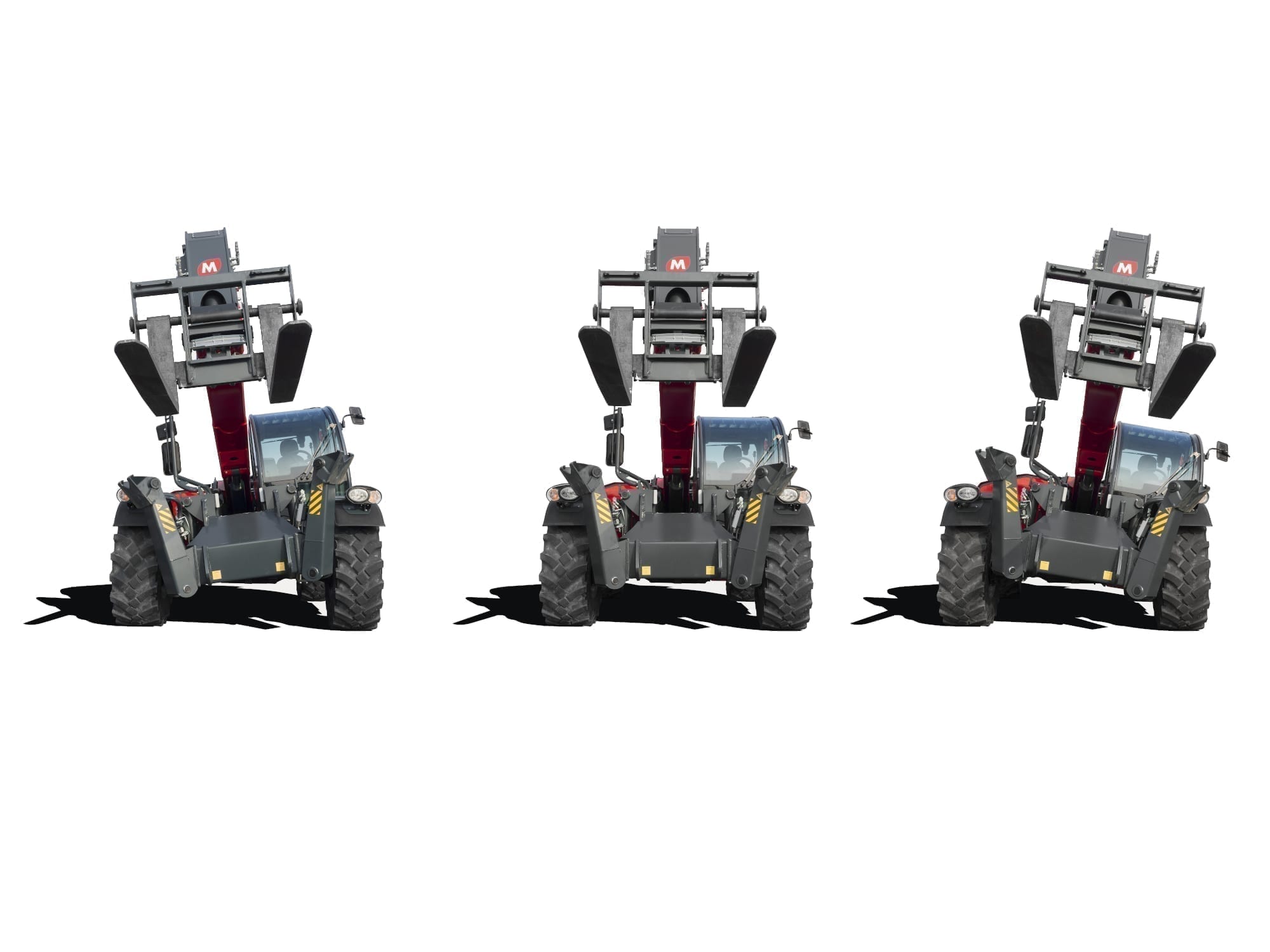

This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.

Magni equipment only available in Western Washington.

Specifications

Hydraulic system: 350 bar Load Sensing
Ground clearance: 1' 3''
Travel Speed: 15 Mph
Lifting height: 61' 68''
Capacity at maximum height: 4.409,2 lbs
Lifting capacity: 12.125,4 lbs
Length: 21'
Unladen weight: 31.085, 2 lbs
Number of gears: 2/2
UE 2016/1628: concerning engine emissions standards
EN 13000: concerning standards for hydraulic cranes
Reach: 46' 25''
Climate control as standard: No
Engine: Deutz TCD 3,6 L4 Stage IV
EN 1459-1: concerning standards for slewing variable-reach trucks
Rated power: 55,4 kW (75,3 hp) @ 2200 rpm
Width: 8' 3''
Automatic accessory recognition: Yes
