Papé Material Handling

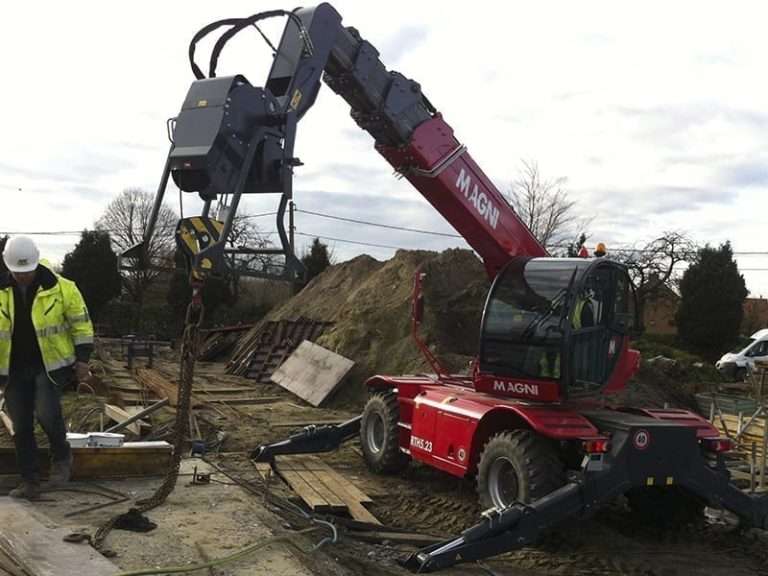

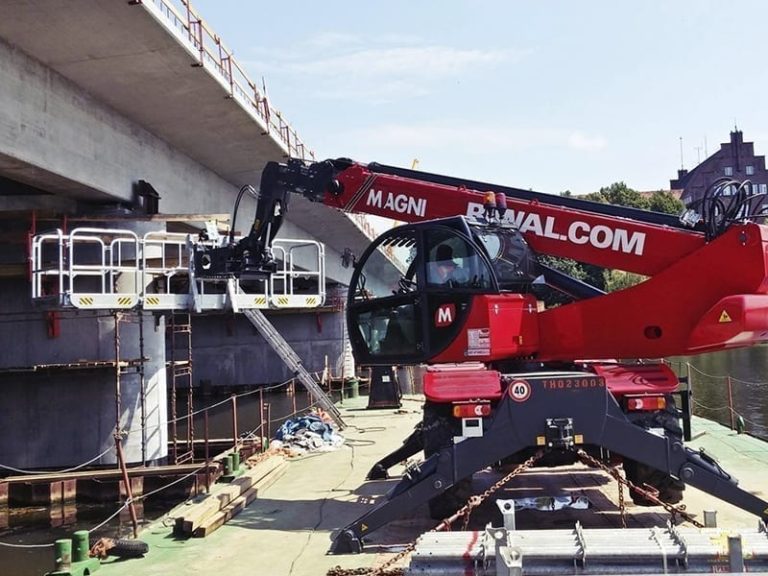

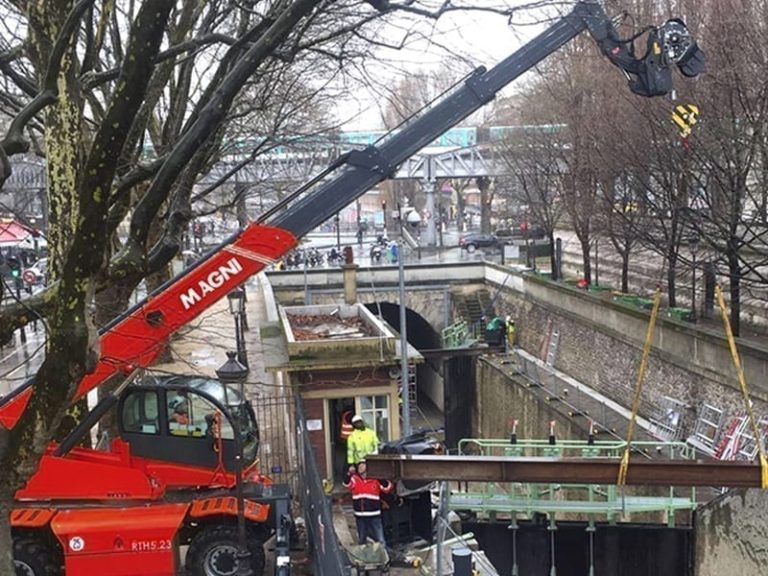

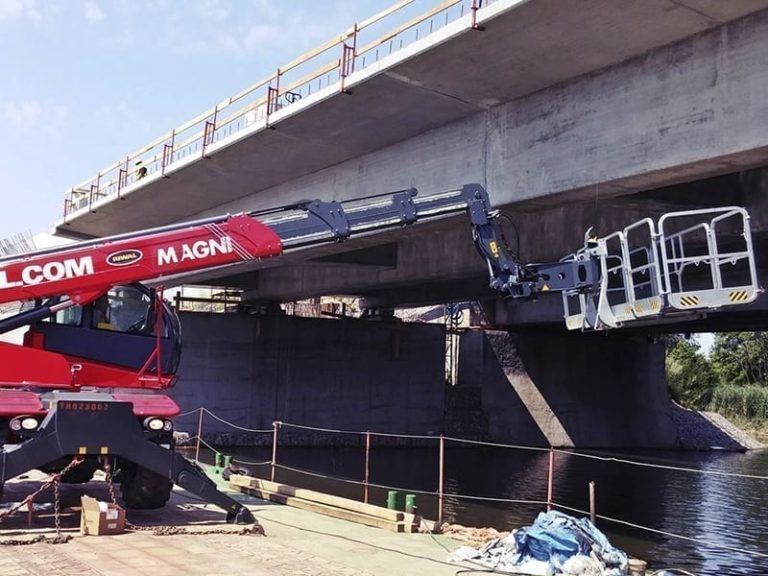

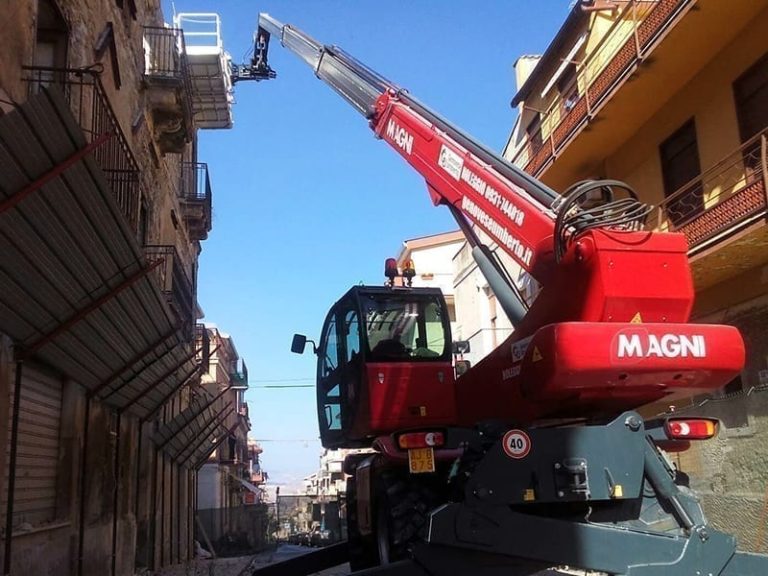

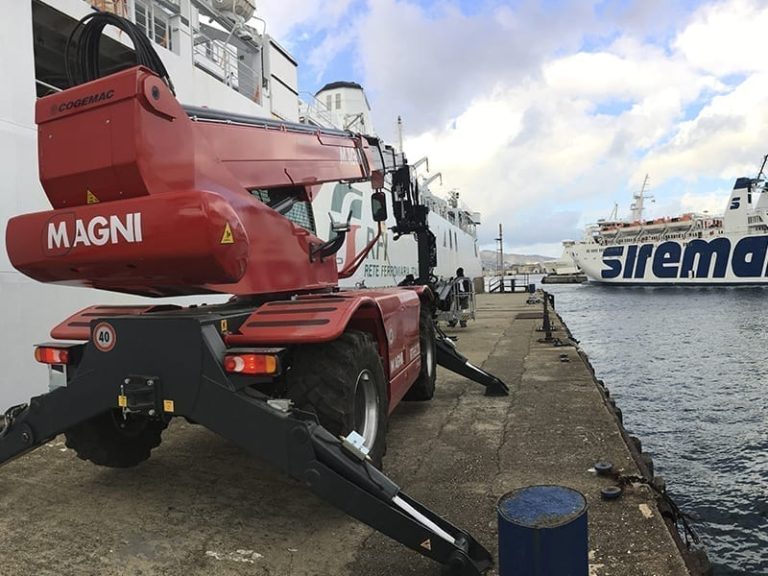

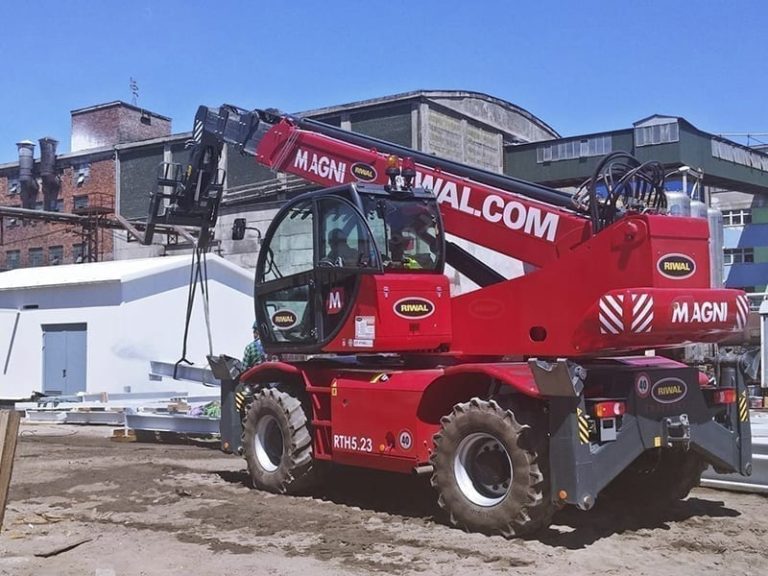

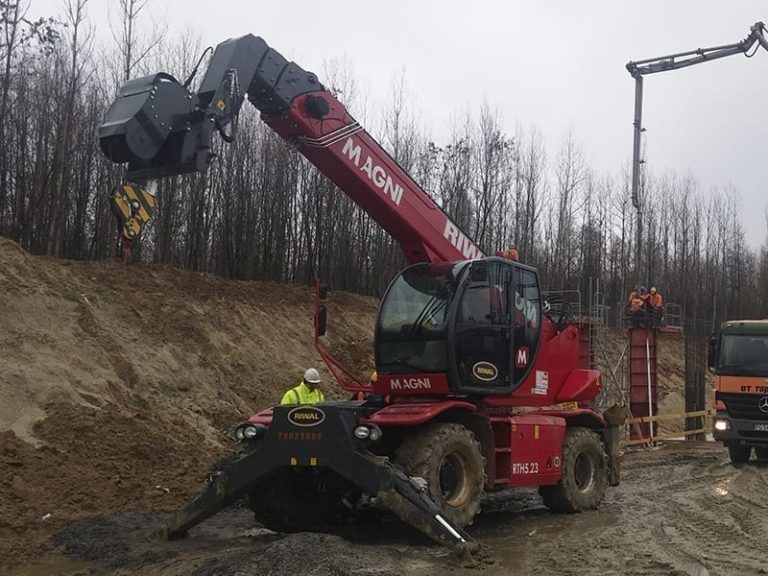

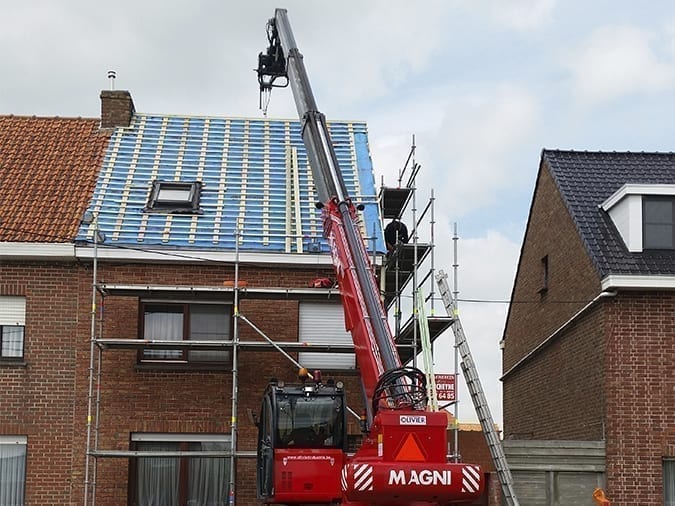

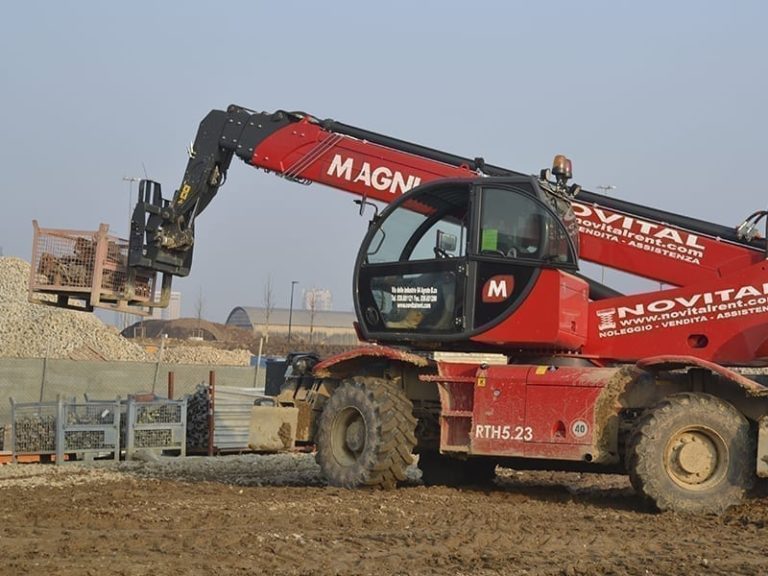

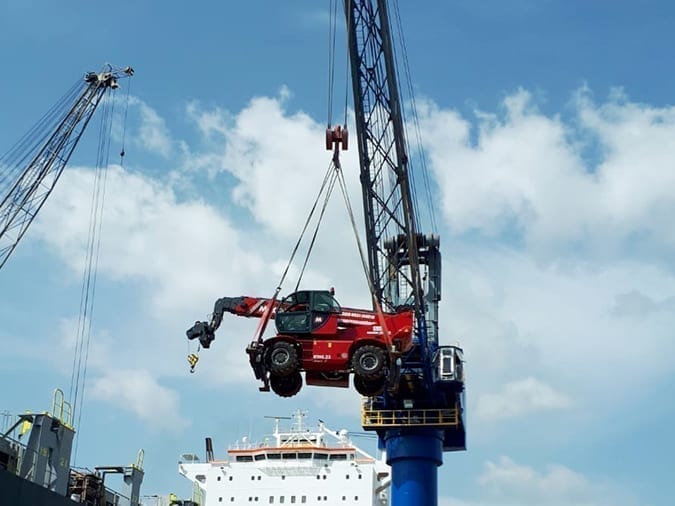

5.23

Magni
Rotary Telehandlers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Magni equipment only available in Western Washington.

Specifications

Lifting height: 74'
EN 13000: concerning standards for hydraulic cranes
Air conditioning as standard: Yes
UE 2016/1628: concerning engine emissions standards
EN 1459-2: concerning standards for slewing variable-reach trucks
Rotation: 360° (continuous)
Number of gears: 2/2
Speed of movement: 25 Mph
Empty weight: 36.155 lbs
Nominal power: 100 kW (136 Hp) @ 2.200 rpm
Engine: Deutz TCD 3,6 L4 - Tier 4f
Clear light from the ground: 13''
Outreach: 62'
Width: 8' 4''
Capacity at maximum height: 4.400 lbs
Hydraulic system: Load Sensing 350 bar
Length: 23' 7''
Lifting capacity: 11.000 lbs
EN 280: concerning standards for mobile elevating work platforms
Stabilizers: pivoting
