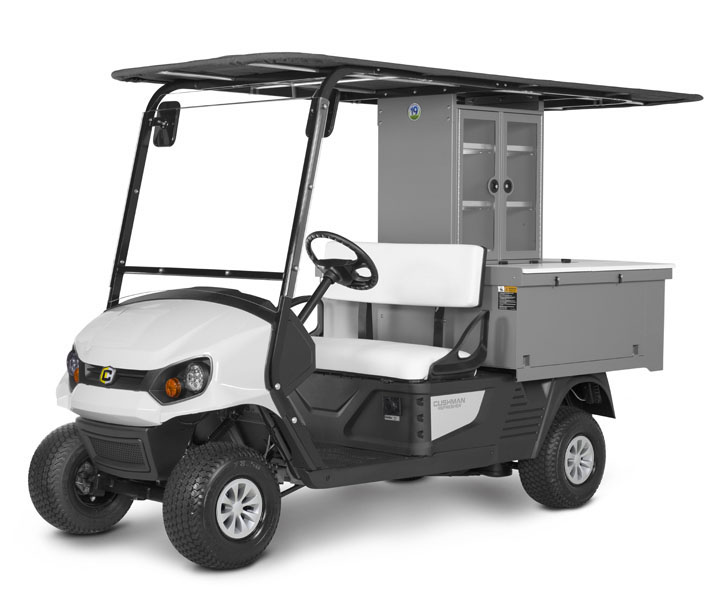

Refresher® Oasis

  • Cushman
  • Golf & ProTurf

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Overview

The Refresher Oasis was built for long days and busy events. With its industry-leading can capacity and enough merchandising space for your most popular items, stopping to restock is yesterday's problem. Now available in a 72-Volt AC electric drivetrain or a 13.5hp EFI gas engine.

Cushman equipment only available at our Concord, CA location.
  • 13.5-hp EFI Gas Engine
  • 4 Cold Storage Drawers
  • 3.4-cu-ft Trash Capacity
  • 6.7-cu-ft of Merchandising
  • 50-mile range on a single charge
  • 72-Volt AC Electric
  • 500-Can Capacity
  • 12.1-sq-ft Work Space
  • + Expand All
  • - Close All
  • Model Table
      Refresher Oasis EFI Gas Refresher Oasis 72-Volt
    Body & Finish Injection Molded TPO, Painted Injection Molded TPO, Painted
    Overall Length 117.0 in (297.18 cm) 117.0 in (297.18 cm)
    Overall Height 47.4 in (120.40 cm) (No Canopy) 73.3 in (1866 cm) (Canopy) 47.4 (120.40 cm) (No Canopy) 76.0in (186.18 cm) (Canopy)
    Power Source 4 cycle, 24.5 cu in (401 cc) 72-Volts
    Valve Train Single Cylinder OHV -
    Horsepower (KW) 13.5 hp (10.1 kW) 22.4HP (16.7 kW) - Measured at Peark Torque
    Electrical System Starter/Generator, Solid State Regulator 72 Volt
    Battery (Qty/Type) One, 12V Maintenance Free Nine 8-Volt Deep Cycle
    Battery Charger - 900 Watt 72V DC
    Air Cleaner Industrial Rated Dry Filter -
    Lubrication Pressurized Oil System -
    Oil Filter Spin-On -
    Cooling System Air Cooled Motor Shaft Direct Drive
    Fuel Capacity 6.65 Gallon (25.2 L) Tank -
    Drive Train Continuously Variable Transmission (CVT) Motor Shaft Direct Drive
    Gear Selection Forward-Reverse Forward-Neutral-Reverse
    Rear Axle Ratio 16.53:1 (Forward) 16.81:1 (Reverse) 17:1
    Weight w/o Batteries 1135 lb (514.83 kg) 1105 lb (501.22kg)
    Curb Weight 1175 lb (532.971 kg) 1670 lb (757.50 kg)
    Speed 11 mph ± 0.5 mph (17.7 kph ± 0.8 kph) 11 mph ± 0.5 mph (17.7 kph ± 0.8 kph) Forward 10 mph ± 0.5 mph (16 kph ± 0.8 kph) Reverse
  • Body & Finish: Injection Molded TPO, Painted
  • Transaxle: Differential with Helical Gears
  • Power Source: 4 cycle, 24.5 cu in (401 cc)
  • Battery (Qty/Type): One, 12V Maintenance Free
  • Battery Charger: -
  • Fuel Capacity: 6.65 Gallon (25.2 L) Tank
  • Cargo Deck Capacity: 6.7 cu ft (.19 m3) Merchandising 500 Can Beverage Capacity
  • Seating Capacity: 2 Person
  • Overall Width: 50.8 in (129.032 cm)
  • Suspension: Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear)
  • Oil Filter: Spin-On
  • Air Cleaner: Industrial Rated Dry Filter
  • Frame: Welded Steel w/ DuraShield™ Powder Coat
  • Service Brake: Rear Wheel Mechanical Self-Adjusting Drum
  • Steering: Self-compensating Rack & Pinion
  • Horsepower (KW): 13.5 hp (10.1 kW)
  • Drive Train: Continuously Variable Transmission (CVT)
  • Parking Brake: Self-Compensating Single Point Engagement
  • Weight w/o Batteries: 1135 lb (514.83 kg)
  • Gear Selection: Forward-Reverse
  • Cooling System: Air Cooled
  • Lubrication: Pressurized Oil System
  • Key or Pedal Start: Pedal
  • Standard Color: Forest Green
  • Valve Train: Single Cylinder OHV
  • Outside Clearance Circle: 21.5 ft (6.5 m)
  • Speed: 11 mph ± 0.5 mph (17.7 kph ± 0.8 kph)
  • Wheel Track: 35.0 in (89 cm) Front 38.5 in (98 cm) Rear
  • Wheel Base: 76.0 in (193.04 cm)
  • Vehicle Load Capacity: 1066 lb (483 kg)
  • Curb Weight: 1175 lb (532.971 kg)
  • Overall Height: 47.4 in (120.40 cm) (No Canopy) 73.3 in (1866 cm) (Canopy)
  • Cargo Deck Material: 5000 Series Aluminum - Super Durable TGIC Polyester Powder Coating
  • Overall Length: 117.0 in (297.18 cm)
  • Tires: 18 x 8.5 – 8
  • Rear Axle Ratio: 16.53:1 (Forward) 16.81:1 (Reverse)
  • Ground Clearance: 3.5 in (9.0 cm)
  • Electrical System: Starter/Generator, Solid State Regulator
