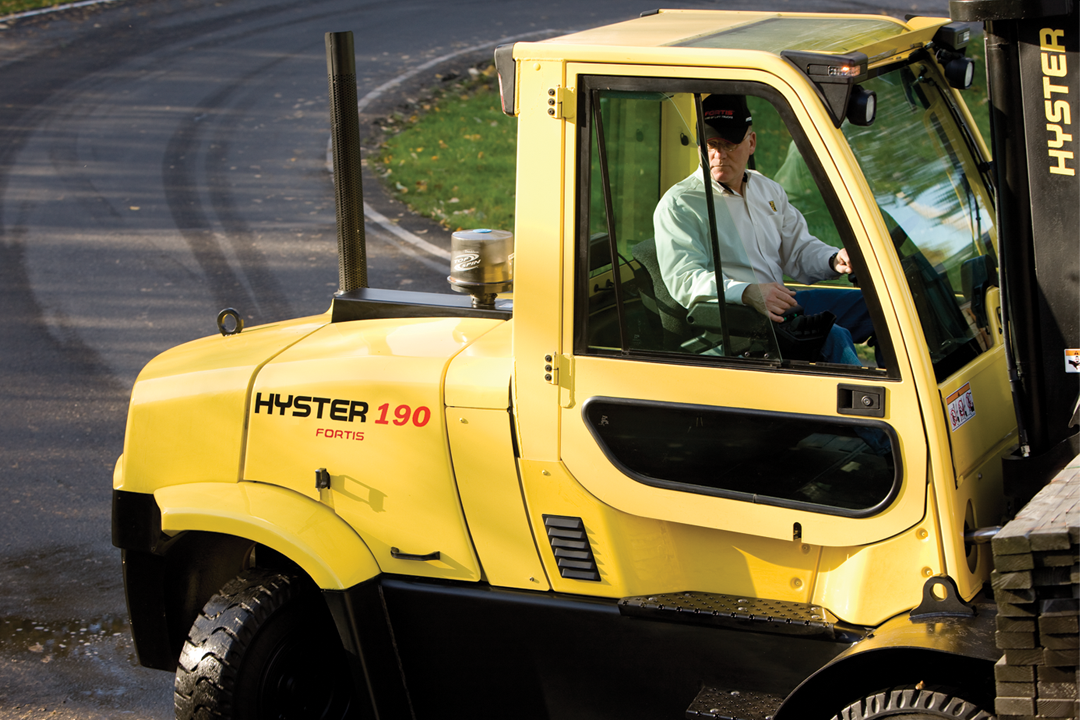

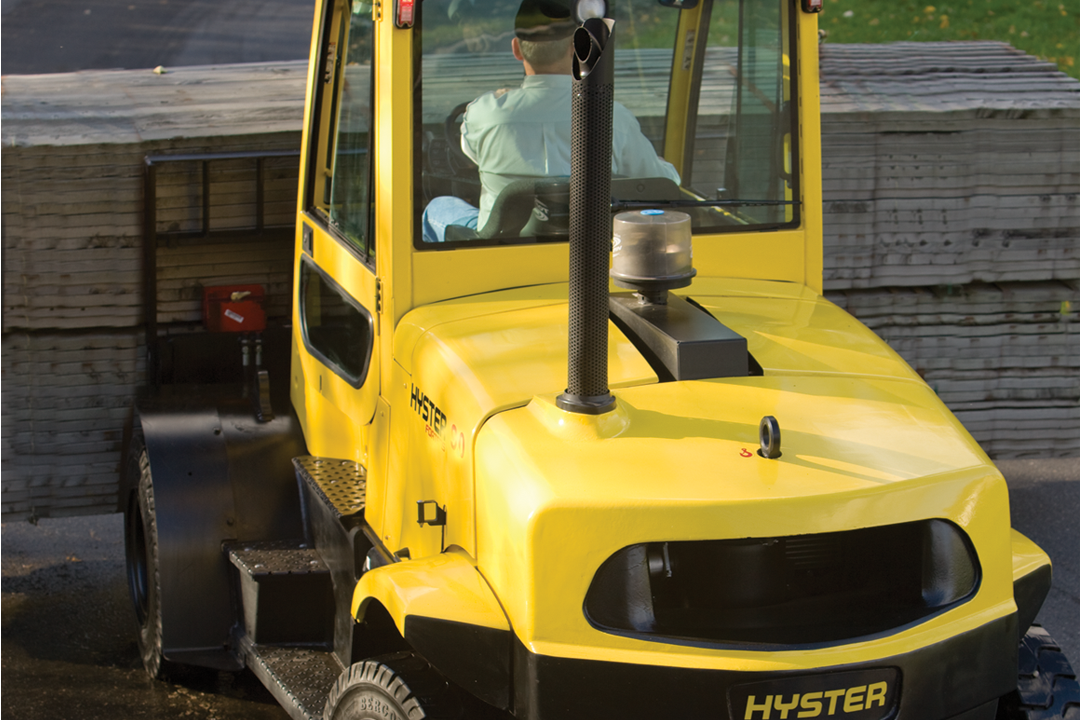

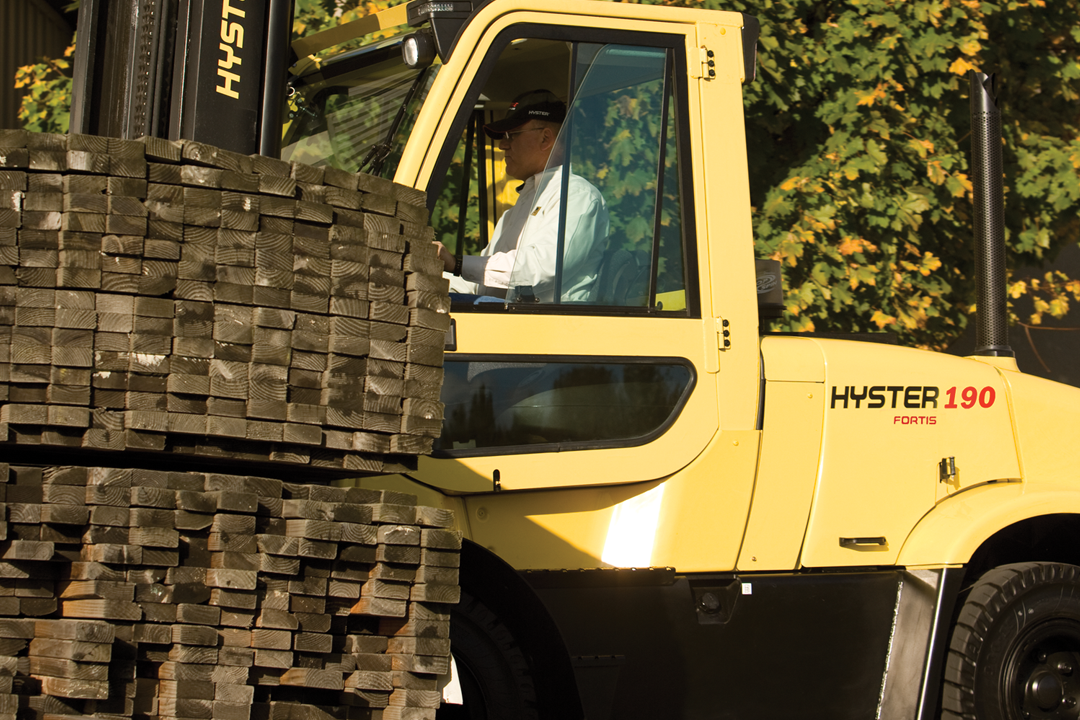

H170-190FT, H170FTS

  • Hyster®
  • Internal Combustion Pneumatic Tire Trucks

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Durable, Dependable and Productive - Fortis Lift Trucks


The H170-190FT is the newest addition to the Fortis line of lift trucks from Hyster® Company. Designed for outdoor use, these trucks offer the power of the Kubota 3.8L EPA Certified Turbo Diesel engine with full tier 4i certification.

The H170-190FT series of lift trucks are designed to be durable, dependable and productive. They are ideally suited for a wide variety of applications such as lumber, steel, concrete and car salvage. And our new drive axe, cooling system and VISTA™ mast are all designed to take Fortis performance to a new level.

  • Superior ergonomic design allows for easy driver access, excellent visibility and a choice of two choices of hydraulic controls enable your operator to maximize productivity.
  • Oil cooled wet disc brakes provide excellent stopping power and extremely long service life. And they are completely sealed from water and dirt making them ready for your harshest environments.
  • Our ergonomically designed operator compartment includes an optimized step height with non-slip tread, soft touch contoured hand grip, and an infinitely adjustable steer column all designed to enhance productivity
  • The new modulated braking system utilizes hydraulic oil pressure to actuate the brakes. This enhanced design ensures full braking power while minimizing braking effort from the operator.
  • Patented DuraMatch™ transmission provides industry leading features that include the Auto Deceleration System, controlled rollback on ramps, controlled power reversals to move loads more efficiently with less operator fatigue and product damage.
  • + Expand All
  • - Close All
  • ModelTable
    Model Load Capacity (lbs) Engine Transmission Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
    H170FT 17000 Standard: Kubota 3.8L DOC Tier 4 Final Turbodiesel Optional: Kubota 3.8L Tier 4i Turbo Diesel Standard: Techtronix 332 - 3 Speed 13.4 88
    H170FTS 17000 Standard: Kubota 3.8L DOC Tier 4 Final Turbodiesel Optional: Kubota 3.8L Tier 4i Turbo Diesel Standard: 2-Speed Powershift Optional: 3-Speed Techtronix 332 15 84
    H175FT 17500 Standard: Kubota 3.8L DOC Tier 4 Final Turbodiesel Optional: Kubota 3.8L Tier 4i Turbo Diesel Standard: Techtronix 332 - 3 Speed 13.3 86
    H190FT 19000 Standard: Kubota 3.8L DOC Tier 4 Final Turbodiesel Optional: Kubota 3.8L Tier 4i Turbo Diesel Standard: Techtronix 332 - 3 Speed 13.3 78
  • Capacity: 17,000 - 19,000 lbs
  • Max Height: 234
  • Weight: lbs
  • Series Title: H170-190FT, H170FTS
  • Max Weight: 19000 lbs
  • Type: 4 Wheel Pneumatic Tire
