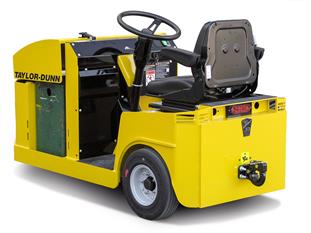

E-455
- Taylor-Dunn
- Tow Tractors
Key Features & Specs
The E-455 utilizes a 24 volt GT drive system equipped with a solid state controller and a drive train incorporating a 5.7 HP DC SEM motor attached to an automotive differential to provide rugged and reliable service for years to come.
The large operator compartment, rear suspension and adjustable, cushioned seat provide for a more comfortable ride. The optional tilted, automotive steering adds to the ease of this vehicle’s operation.
Practical features, such as a heavy-duty, unitized steel frame and a large forward battery compartment provide durability, as well as ease of maintenance and operation.
- Chassis: Suspension: Rear: Rubber compression springs Front: Solid
- Chassis: Steering: Manual, Re-circulating Ball
- Chassis: Frame Construction: Steel unitized body with heavy duty smooth 3/8 inch steel plate
- Dimensions: Weight: 1,790 lbs. (812 kg) Less charger and batteries
- Chassis: Tires: Rear: 4.00 x 8 soft solid Front: 10x4 Mold-on Rubber, Dual
- Performance: Tow Capacity: DBP: 180 lbs. Towing Capacity: 9,000 lbs. (4,082 kg)
- Chassis: Powertrain: Type: Electric Power: Optional Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM
- Performance: Range: 18 miles (29 km)
- Performance: Passengers: 1
- Dimensions: Deck: Width: N/A Length: N/A Height: N/A
- Interior: Instrumentation: Smart View Display (Battery status indicator, hour meter, system status monitor, speedometer), reverse buzzer, forward/reverse selector, key switch, electric horn
- Chassis: Brakes: Rear: Hydraulic disc brakes Front: N/A Parking: Hand
- Interior: Seats: Driver: Passenger:
- Performance: Speed: 6 mph (9.6 km/h)
- Dimensions: Outside Turning Radius: 58.5" (148.59cm)
- Dimensions: Height: Less Cab: 33" (84 cm) With Cab: N/A
- Dimensions: Wheel Base: 55.12" (139.99cm)
- Dimensions: Hitch Height: 12" (30.5cm)
- Chassis: Battery: Type: LESS INDUSTRIAL BATTERY COMPARTMENT 34" L x 14-1/4" W x 26" H System Voltage: 24 Charger: Optional
- Dimensions: Width: 35" (88 cm)
- Dimensions: Length: 88" (223 cm)
