Key Features & Specs

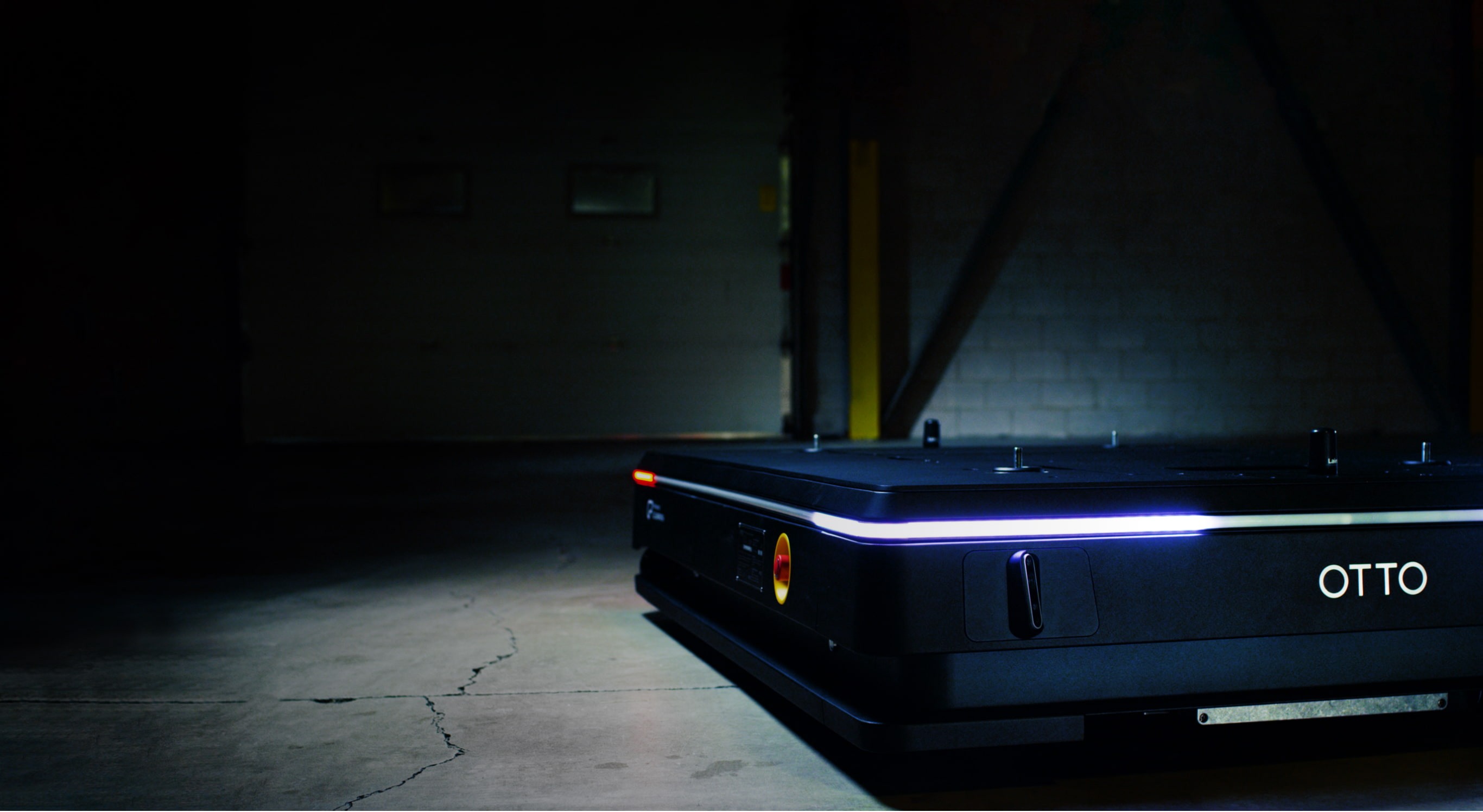

The new, improved OTTO 1500 is a workhorse AMR designed to move heavy payloads through demanding environments faster than any other AMR on the market, with zero compromise to safety.

  • The new OTTO 1500 builds upon the proven and trusted OTTO 1500 chassis first introduced in 2015. OTTO 1500 has experienced over 4,000,000 hours of operational runtime with nearly a decade of vehicle engineering and continuous improvement.

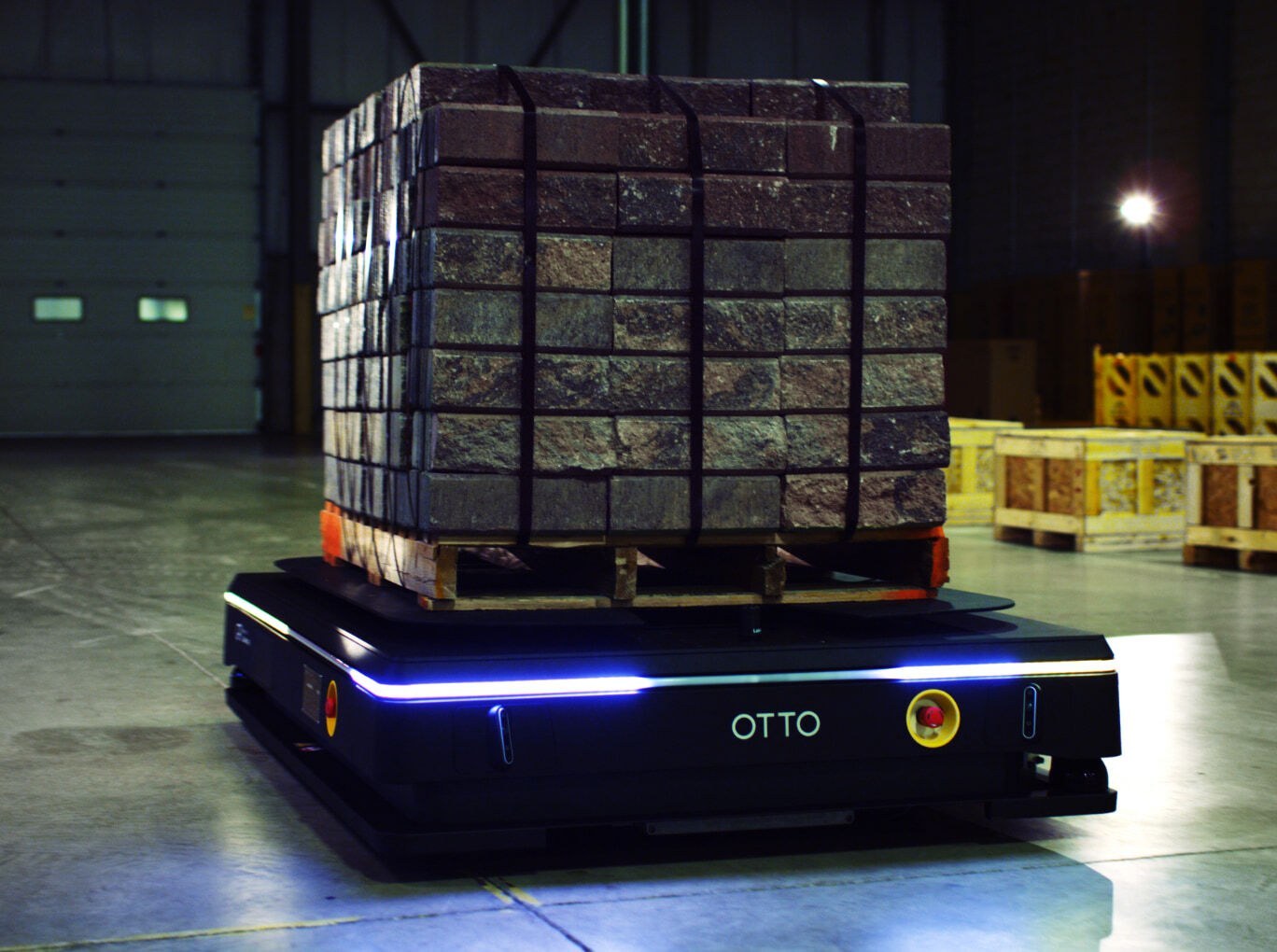

  • OTTO 1500 delivers 1900kg of materials at top speeds of 2m/s with an agility unlike any other AMR in the market. OTTO 1500 has been designed to maximize fleet productivity and deliver the best ROI in the industry.
  • Every detail of the new OTTO 1500 has been crafted to maximize your operation’s productivity. Our formula is simple Move the most goods, as fast as possible, with the least downtime.
  • OTTO’s software is unrivaled in the industry. Unlike traditional industrial automation, each OTTO 1500 gets smarter and more productive with every update. OTTO releases new software updates every year to ensure that your OTTO AMR fleet gets more valuable with every budget cycle.
  • Adaptive Fieldsets: Intelligent PL-d rated switching fieldsets (patent-pending)
  • IP Classification: IP20
  • Runtime (10% to 90%): 10 hr
  • Manual Control : Pendant-based manual control. Guided autonomous control available via OTTO software interface.
  • Computer: Solid-state Military Spec Computer with dedicated GPU
  • Intelligent Braking: Redundant monitoring with safety-system interlock
  • Battery Capacity: 80 Ah
  • Sensors: 4x Intel RealSense Cameras, 2x SICK Microscan3 (360° FOV), Embedded 6-axis IMU
  • Battery Charging Options: Autonomous Opportunity Charging (Default), Manual Charging
  • Max. Humidity: 95%, non-condensing
  • Standards Compliance: ISO EN 12100, ISO EN 13849-1, ISO 3691-1 (supercedes EN 1525), EN 60204-1, CE, FCC
  • Traversable Gap: 16 mm (5/8 in)
  • Suspension: Passive, Rocker
  • Safety Interface: Dual-channel E-Stop breakout, 2 safety-rated GPIO, 1 interface fault line
  • Dimensions: 1837 x 1283 x 351 mm (72.3 x 50.5 x 13.85 in)
  • Signal Interface: 1x Ethernet, 1x USB 3.1, 1x HDMI; 1 CAN Bus, 5 GPIO (2 safety rated); 1 interface control line
  • Turning Radius: Turn in place
  • Ground Clearance: 16 mm (5/8 in)
  • Max. Payload: 1900 kg (4190 Ibs)
  • Min. Aisle Width (One Way): 1915 mm (78 in)
  • Max. Turning Speed: 1.5 rad/sec (90°/sec)
  • Max. Speed: 2.0 m/s (4.5 mph)
  • Min. Aisle Width (Two Way): 3570 mm (146 in)
  • E-Stop: 4 E-Stops (1 per side) + user E-Stop circuit interface
  • Max. Docking Speed: 0.3 m/sec (0.7 mph)
  • Battery Life: 3,000 full charge cycles
  • Communication: 802.11 a/b/g/n/ac/ax, 2.4 Ghz & 5 Ghz; 2x Long-range Omnidirectional Antennae
  • Temperature: 0 to 40°C
  • Max. Charge Rate: 80 A
  • Power Interface: 24 VDC, 10A, regulated, unswitched; 52.8 VDC nominal, 50A, unregulated
  • Battery Voltage: 52.8 V
  • Mass: 627kg (1382 lbs)
  • Charge Time (10% to 90%): 60 min
