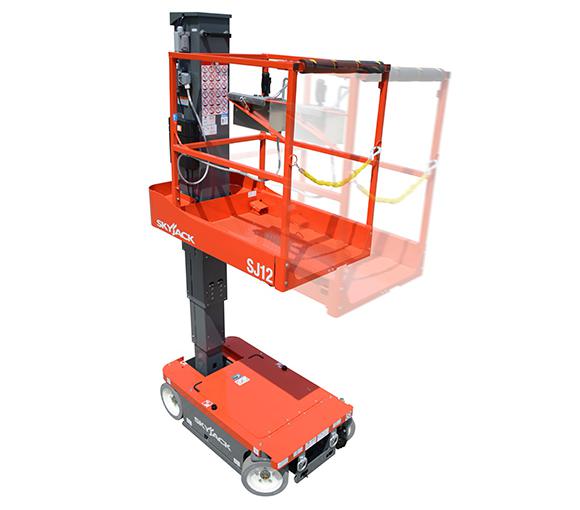

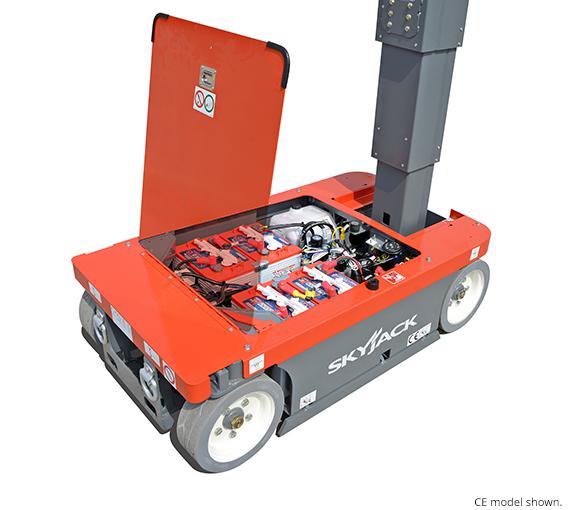

Skyjack SJ12/16

Skyjack SJ12/16

Skyjack SJ12/16

SJ12/16

Skyjack
Vertical Mast Lifts

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Low voltage battery protection
Proportional controls
28 mph wind rating (12.5 m/s)
Solid rubber, non-marking tires
All motion audible alarm
Relay based control system
Chain entrance
Variable speed, front two wheel hydraulic drive
30% Gradeability
Telematics ready
Pothole protection system
Lift rings/tie downs
Zero inside turning radius
Operator horn
Color coded and numbered wiring system
24V DC power source
Dual holding brakes
Lanyard attachment points
110V AC outlet at platform with GFI
Drivable at full height
Tilt alarm with drive & lift cut-out
20” (0.51 m) Traversing platform

Features
Documents

+ Expand All
- Close All

Overall Specifications

SJ12

SJ16

Work Height

18’ (5.48 m)

21’7” (6.58 m)

Raised Platform Height

12’ (3.65 m)

15’7” (4.75 m)

Lowered Platform Height

18” (0.45 m)

18” (0.45 m)

Overall Width

30.5” (0.77 m)

30.5” (0.77 m)

Overall Length

54” (1.37 m)

54” (1.37 m)

Stowed Height

70.3” (1.79 m)

70.3” (1.79 m)

Platform Width (Inside Dimension)

27” (0.69 m)

27” (0.69 m)

Platform Length (Inside Dimension)

36.8” (0.93 m)

36.8” (0.93 m)

Ground Clearance (Stowed)

2.1” (5.33 cm)

2.1” (5.33 cm)

Ground Clearance (raised)

0.63” (1.60 cm)

0.63” (1.60 cm)

Weight

1,720 lbs (782 kg)

2,130 lbs (966 kg)

Gradeability

30%

30%

Turning Radius (Inside)

0

0

Turning Radius (Outside)

55” (1.40 m)

55” (1.40 m)

Lift Time (With Rated Load)

16 sec

20 sec

Drive Speed (Stowed)

2.5 mph (4.0 km/h)

2.5 mph (4.0 km/h)

Drive Speed (Raised)

0.5 mph (0.80 km/h)

0.5 mph (0.80 km/h)

Drive Speed (High speed)

2.5 mph (4.0 km/h)

2.5 mph (4.0 km/h)

Maximum Drive Height

Full Height

Full Height

Capacity

500 lbs (227 kg)

500 lbs (227 kg)

Maximum # of Persons

2

2

Tire Type

Solid, N/M

Solid, N/M

Tire Size

12 x 4 x 8

12 x 4 x 8
