Key Features & Specs

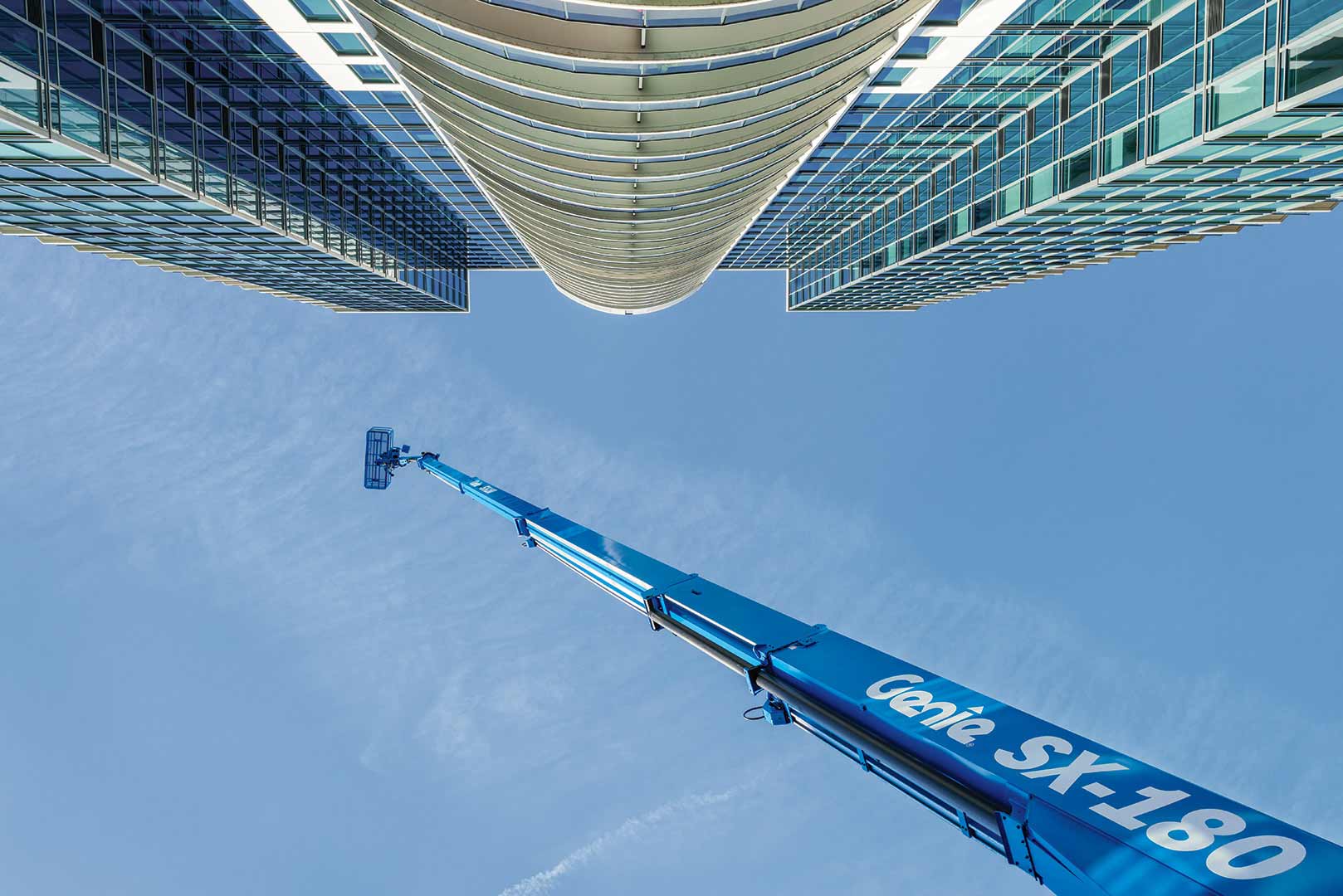

The highest reaching model in the line-up, the Genie® SX™-180 telescopic boom is built to safely and quickly lift operators. It is purpose-built to work on jobsites in the oil and gas industries and in commercial construction, industrial construction and maintenance, and general maintenance applications.

Overview

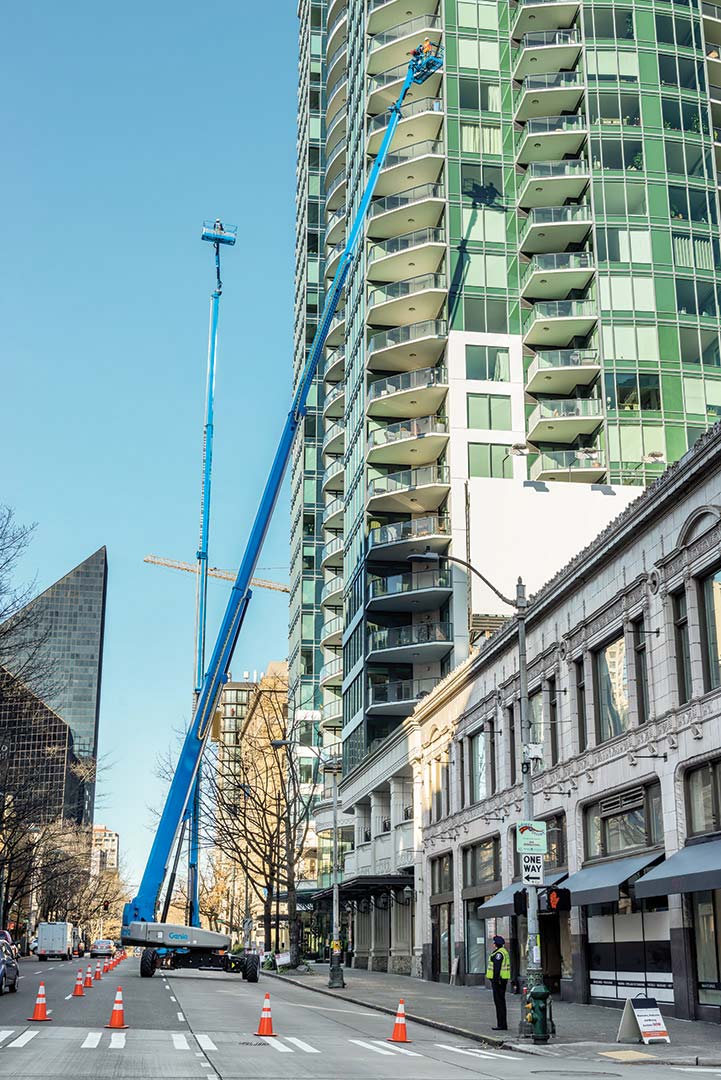

  • Tackles the most extreme jobs with a vertical reach of 180 ft (54.9 m) and horizontal reach of 80 ft (24.4 m)
  • Easily position workers and gear with a 10 ft (3.05 m) rotating jib

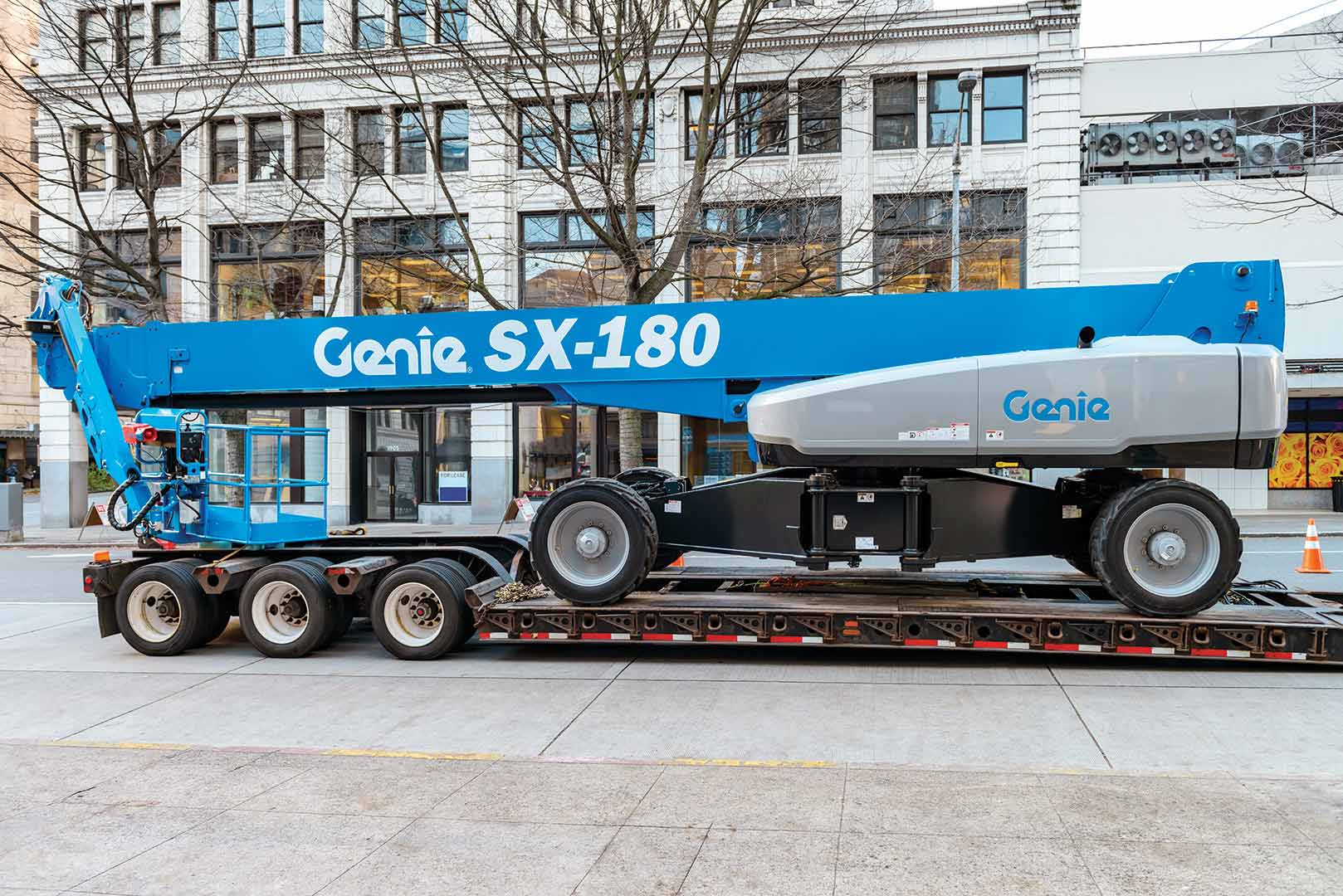

  • Genie XChassis™ extends and retracts to provide stability on the job and a narrow profile for transport
  • Standard 8 ft (2.44 m) self-leveling platform with an unrestricted capacity of 750 lb (340 kg)
  • + Expand All
  • - Close All
  • Options

    Engine Options

    • Diesel intake air pre-cleaner
    • Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation, and hydraulic tank heater

    Lift/Turntable Options

    • Hostile environment kit: cylinder bellows, boom wiper seals, platform control box cover, second engine oil filter
    • Specialty hydraulic oil  (225 gal - cold weather, fire resistant, or biodegradable)

    Platforms

    • 8 ft. tri entry platform with ½ height mesh inserts and side swing gate

    Platform Options

    • Air line to platform
    • Light package:  2 platform mounted work lights
    • Lockable platform control box cover
    • Thumb rocker steering
    • Welder - Select Lincoln or Miller
    • Anemometer
    • Traveling fall arrest anchor system: requires 8ft platform

    Generator Options

    • AC Generator, 12kW, 208V/110V/60Hz
  • Platform Capacity: 750 lb | 340 kg
  • Max Horizontal Reach: 80 ft | 24.38 m
  • Max Platform Height: 180 ft | 54.86 m
  • Below Ground Reach: 2 ft | 0.61 m
  • Machine Width and Length: 16 ft 6 in / 53 ft 1 in | 5.03 m / 16.18 m
