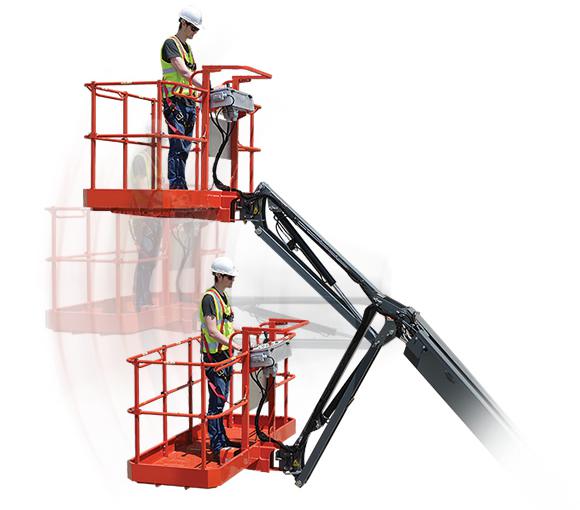

Skyjack SJ61/66 T

Skyjack SJ61/66 T

SJ61/66 T

Skyjack
Telescopic Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Swing out engine tray
Modular platform railing system
Diesel engine
Dual capacity rating
Drivable at full height
Operator controlled locking rear differential and limited slip front differential
Oscillating axle
Direction sensing drive and steer controls
Operator horn
18 x 625 grip lug foam filled tires
Proportional controls
110V AC outlet on platform with GFI
Relay based control system
Wet disc SAHR brakes (front and rear axle)
Color coded and numbered wiring
All motion alarm
Tie down points
Telematics ready
Swing up cowlings
Axle based 4WD system
45% Gradeability
Tri-entry sliding mid rails
Hourmeter
360° continuous turret rotation

Features
Documents

+ Expand All
- Close All

Overall Specifications

SJ61 T

SJ66 T

Work Height

67’3” (20.50 m)

72’ (21.95 m)

Platform Height

61’3” (18.67 m)

66’ (20.12 m)

Horizontal Reach

51’3” (15.62 m)

57’ (17.37 m)

Platform Size

36” x 96” (0.91 x 2.44 m)

36” x 96” (0.91 x 2.44 m)

Stowed Width

96” (2.44 m)

96” (2.44 m)

Tailswing

47” (1.19 m)

47” (1.19 m)

Stowed Height

101” (2.57 m)

101” (2.57 m)

Stowed Length

30’4” (9.25 m)

33’11” (10.34 m)

Ground Clearance

16” (0.41 m)

16” (0.41 m)

Wheelbase

96” (2.44 m)

96” (2.44 m)

Rotation

360° Continuous

360° Continuous

Platform Rotation

170°

170°

Jib Length

-

5’ (1.5 m)

Jib Range +/-

-

+65° / -60°

Weight

23,400 lbs (10,614 kg)

26,700 lbs (12,111 kg)

Gradeability

50%

50%

Turning Radius (Inside)

111” (2.8 m)

111” (2.8 m)

Turning Radius (Outside)

199” (5.05 m)

199” (5.05 m)

Axle Oscillation

3” (7.62 cm)

3” (7.62 cm)

Drive Speed (High speed)

4.5 mph (7.2 km/h)

4.5 mph (7.2 km/h)

Capacity

500 lbs (227 kg)

500 lbs (227 kg)

Local Floor Load (With Rated Load)

138 psi (951 kPa)

145 psi (1,000 kPa)

Overall Floor Load (With Rated Load)

266 psf (13 kPa)

304 psf (15 kPa)

Maximum # of Persons

2

2

Tire Type

Air Filled

Air Filled

Tire Size

15 x 19.5

15 x 19.5

Diesel Engine

74 HP

74 HP

Dual Fuel Engine

82 HP

82 HP

Fuel Tank

45 gallon (170 L)

45 gallon (170 L)

Hydraulic Reservoir

60 gallon (227 L)

60 gallon (227 L)
