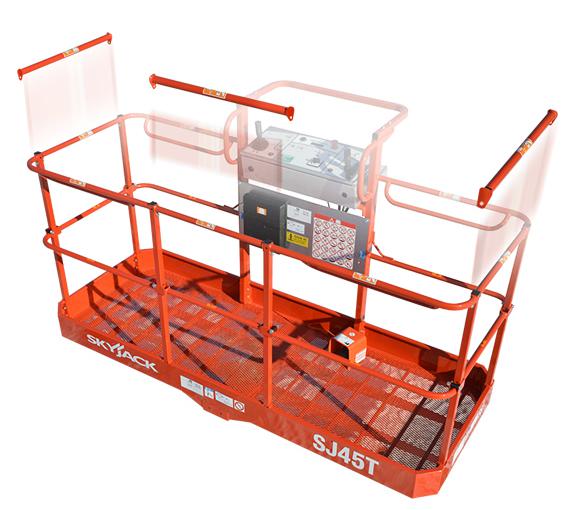

Skyjack SJ40/45 T

Skyjack SJ40/45 T

SJ40/45 T

Skyjack
Telescopic Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Telematics ready
Hourmeter
Proportional controls
Operator horn
Drivable at full height
50% Gradeability
Axle based 4WD system
Wet disc SAHR brakes (rear axle)
Swing out engine tray
Modular platform railing system
110V AC outlet on platform with GFI
front differential
Direction sensing drive and steer controls
Tie down/lifting lugs
Oscillating axle
Tri-entry sliding mid rails
Relay based control system
Color coded and numbered wiring
12 x 16.5 grip lug air-filled tires
Swing up cowlings
Diesel or dual fuel engine
All motion alarm
“Detroit Locker” type rear differential and limited slip
360° continuous turret rotation

Features
Documents

+ Expand All
- Close All

Overall Specifications

SJ40 T

SJ45 T

Work Height

46’7” (14.20 m)

51’2” (15.60 m)

Platform Height

40’7” (12.37 m)

45’2” (13.77 m)

Horizontal Reach

34’ (10.36 m)

39’9” (12.12 m)

Platform Size

36” x 96” (0.91 x 2.44 m)

36” x 96” (0.91 x 2.44 m)

Stowed Width

90” (2.29 m)

90” (2.29 m)

Tailswing

37” (0.94 m)

37” (0.94 m)

Stowed Height

94” (2.39 m)

94” (2.39 m)

Stowed Length

25’5” (7.74 m)

28’10” (8.79 m)

Ground Clearance

11” (0.28 m)

11” (0.28 m)

Wheelbase

96” (2.44 m)

96” (2.44 m)

Rotation

360° Continuous

360° Continuous

Platform Rotation

170°

170°

Jib Length

-

5’ (1.5 m)

Jib Range +/-

-

+65° / -60°

Weight

13,960 lbs (6,332 kg)

14,830 lbs (6,727 kg)

Gradeability

50%

50%

Turning Radius (Inside)

84” (2.13 m)

84” (2.13 m)

Turning Radius (Outside)

198” (5.03 m)

198” (5.03 m)

Axle Oscillation

5” (12.70 cm)

Drive Speed (High speed)

4.5 mph (7.2 km/h)

4.5 mph (7.2 km/h)

Capacity

650 lbs (295 kg)

500 lbs (227 kg)

Local Floor Load (With Rated Load)

130 psi (896 kPa)

135 psi (931 kPa)

Overall Floor Load (With Rated Load)

193 psf (9.24 kPa)

200 psf (9.58 kPa)

Maximum # of Persons

2

2

Tire Type

Air Filled

Air Filled

Tire Size

12 x 16.5

12 x 16.5

Diesel Engine

48 HP

48 HP

Dual Fuel Engine

82 HP

82 HP

Fuel Tank

45 gallon (170 L)

45 gallon (170 L)

Hydraulic Reservoir

59 gallon (223 L)

59 gallon (223 L)
