S-60X and S-65

  • Genie
  • Telescopic Boom Lift

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Easily complete heavier lift tasks on construction and industrial jobsites with the Genie® S®-60X telescopic boom — offering a dual lift capacity of 500-lb (227 kg) unrestricted and 1,000-lb (454 kg) restricted — or the Genie S®-65 telescopic boom, up to 500-lb (227 kg) capacity.

Overview

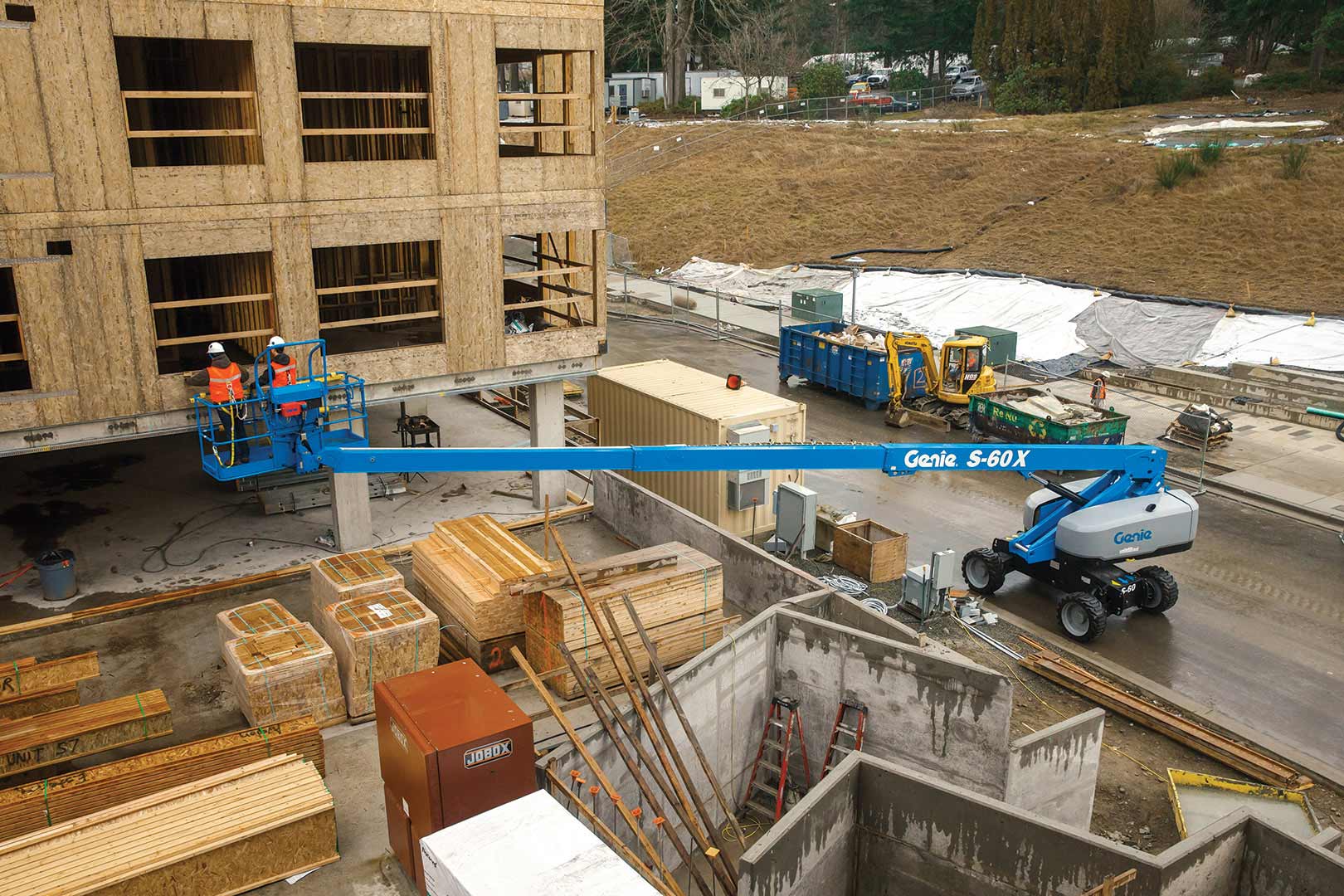

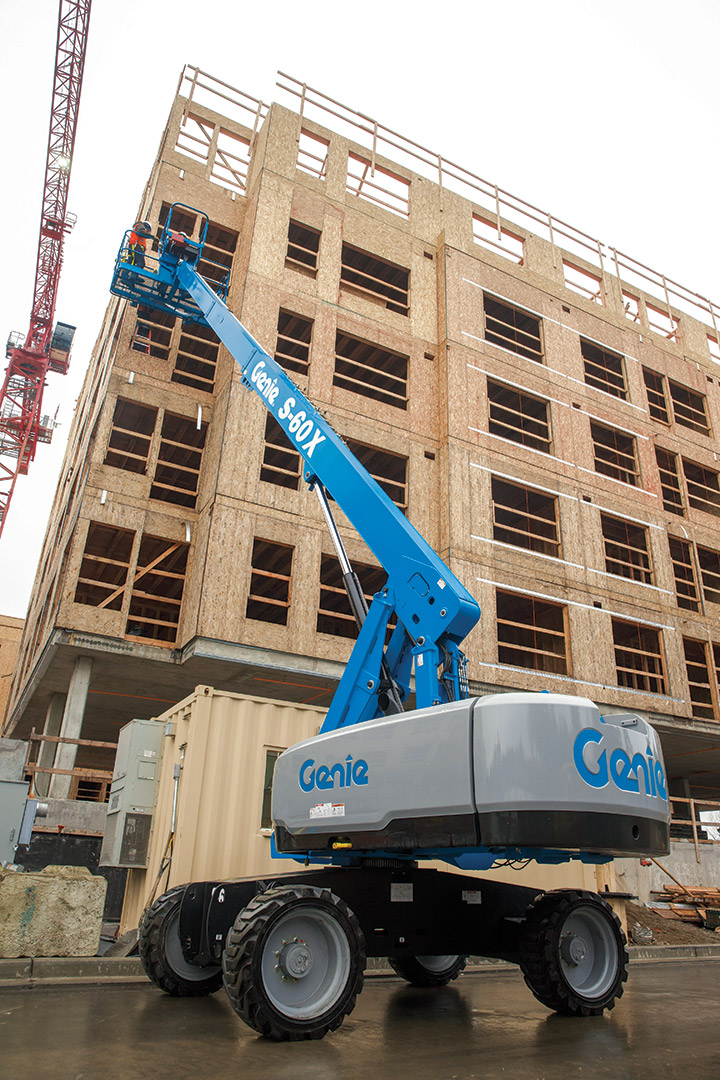

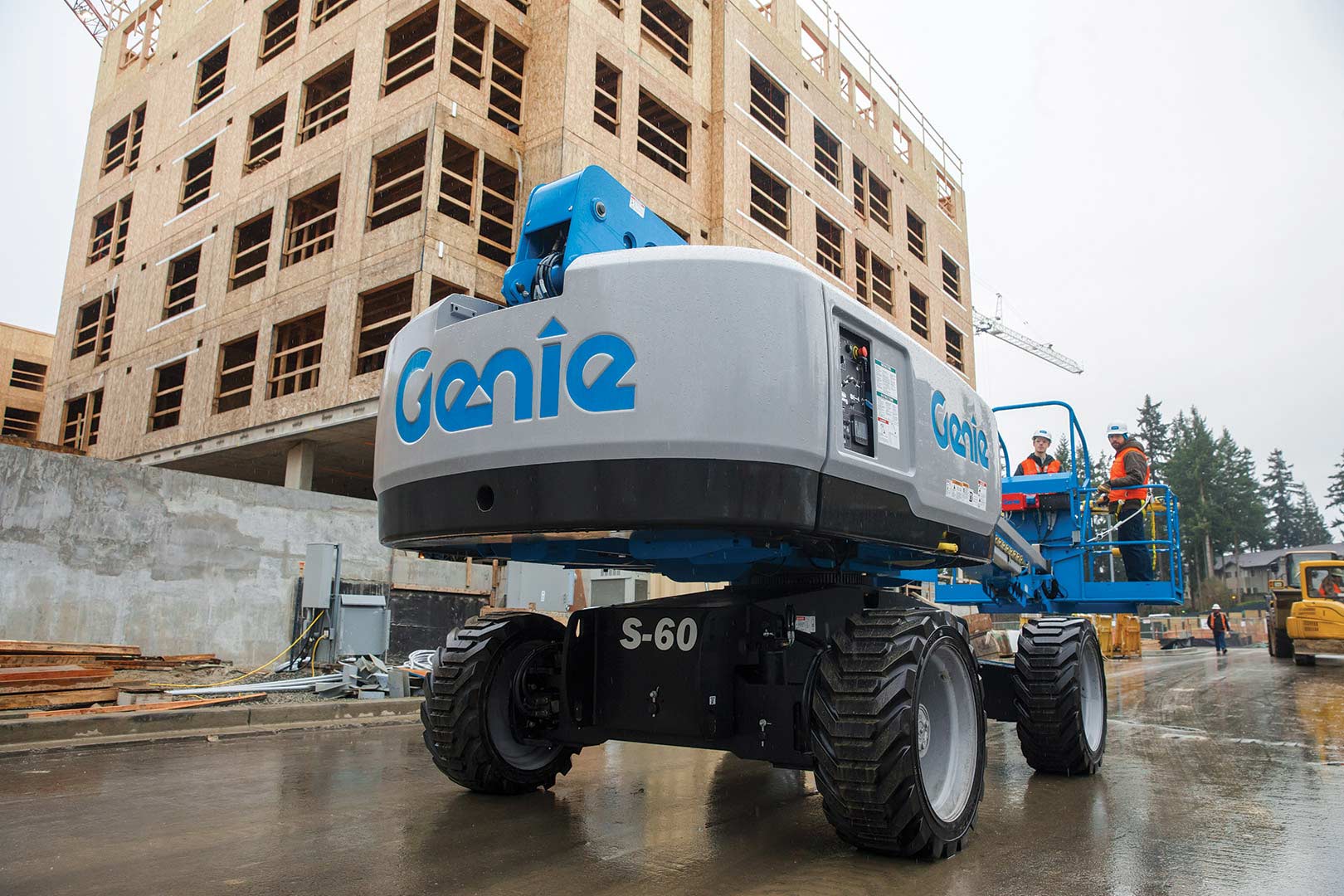

Genie S-60X

  • 360˚continuous rotation turntable for quick positioning
  • 50 ft 10 in (15.48 m) of horizontal reach
  • Virtual pivot primary boom aligns the machine’s center of gravity to work efficiently with a lower machine weight
  • Positive traction drive maintains equal power to all drive wheels and an active oscillating axle option enhances traction on rough terrain

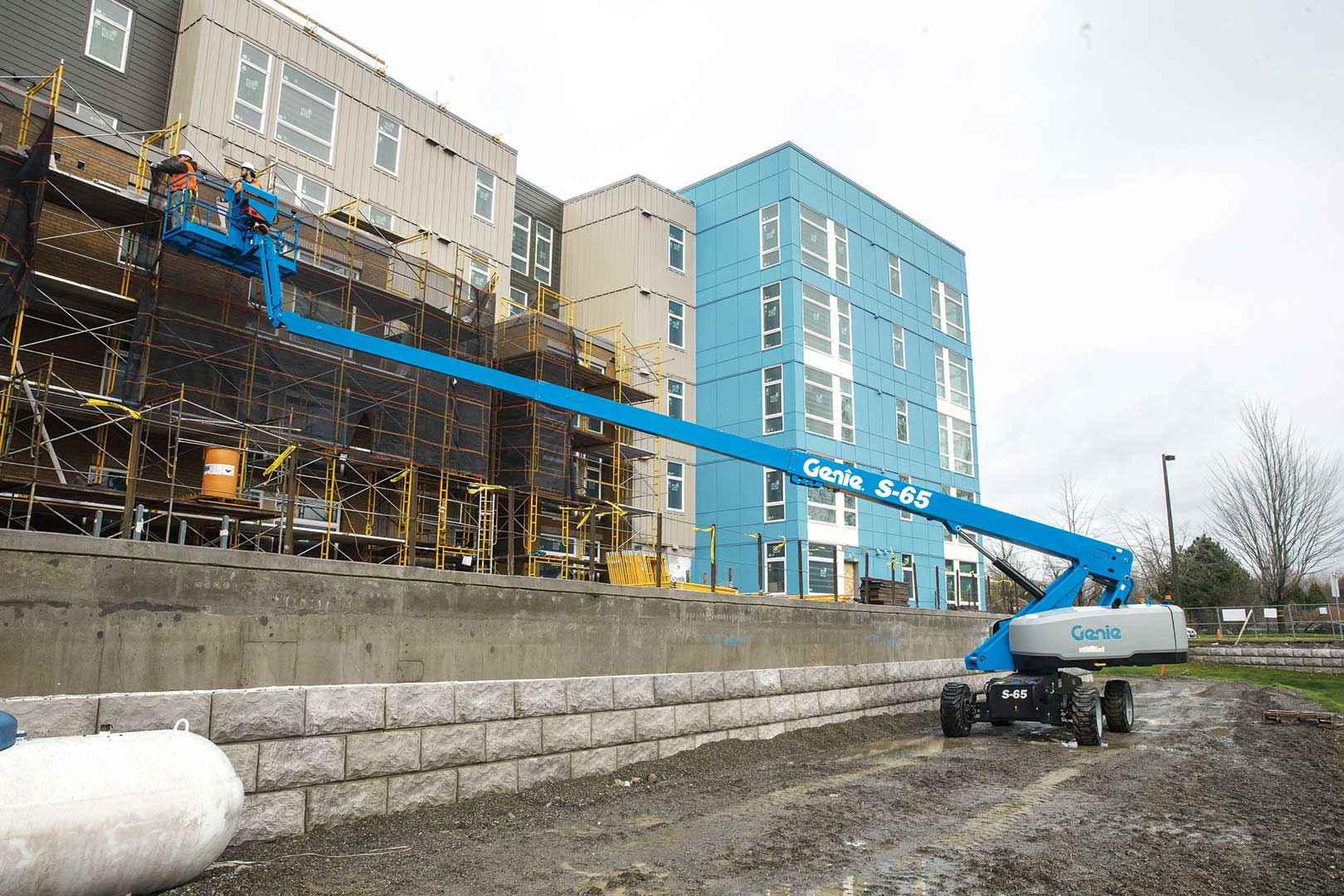

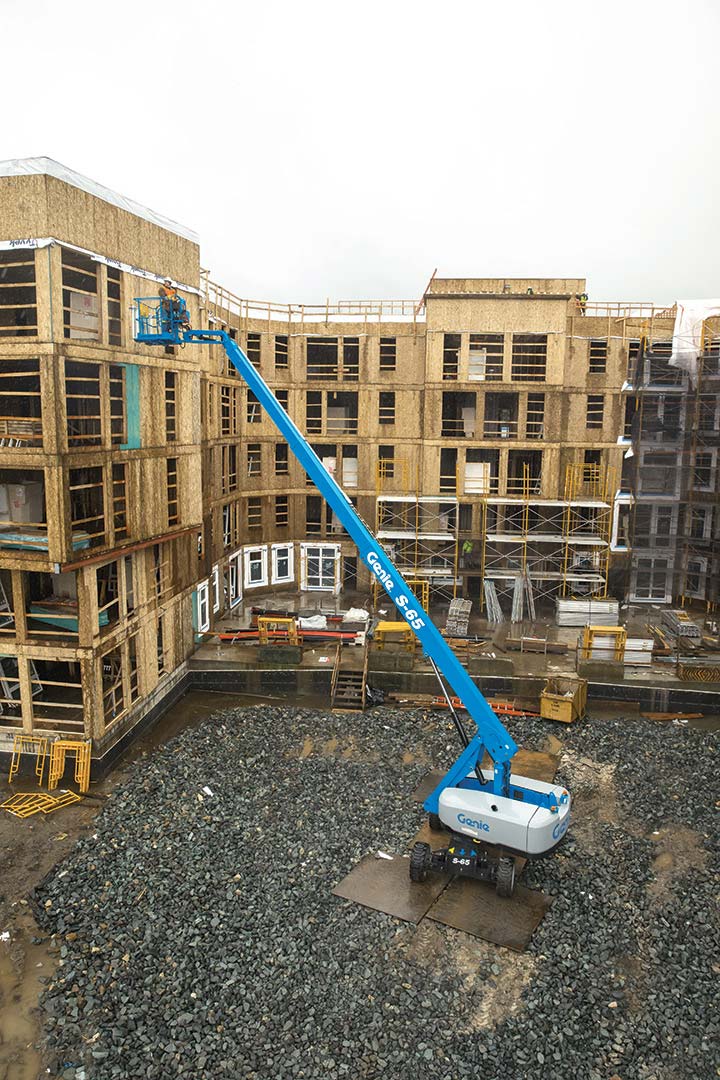

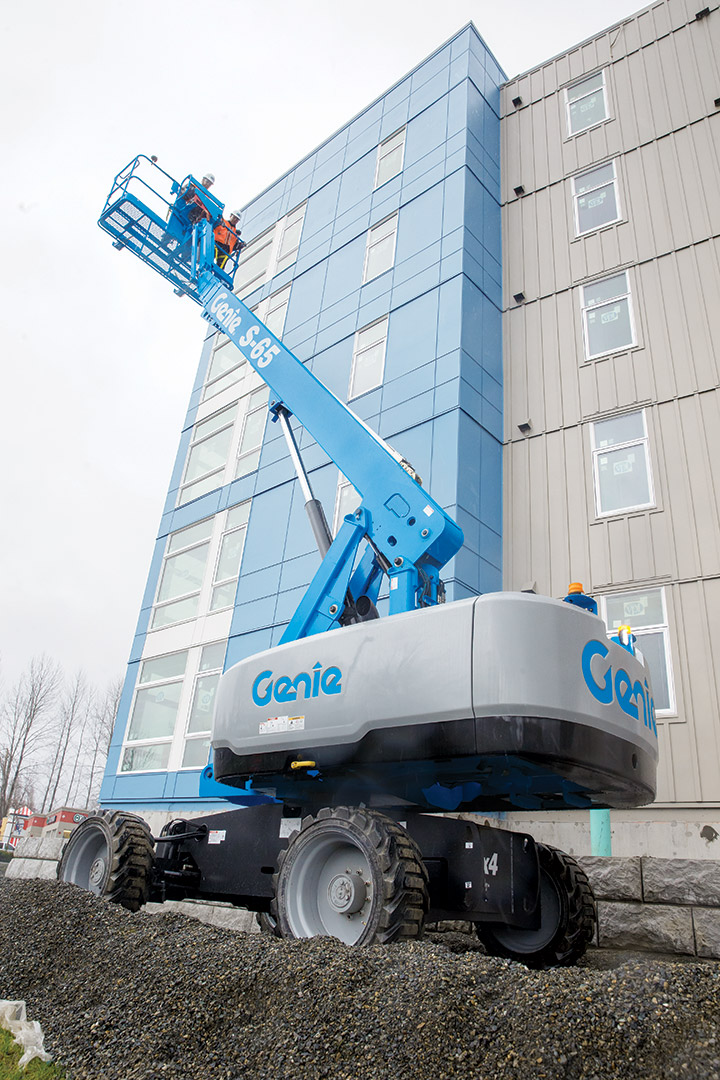

Genie S-65

  • 56 ft 2 in (17.10 m) of horizontal reach
  • 360˚continuous rotation turntable for quick positioning
  • Smooth boom functions for finer control
  • Virtual pivot primary boom aligns the machine’s center of gravity to work efficiently with a lower machine weight
  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • S-60XC:  750 lb. / 1,250 lb. high capacity with automatic envelope control and rough terrain foam-filled tires
    • Tow package

    Tire Options

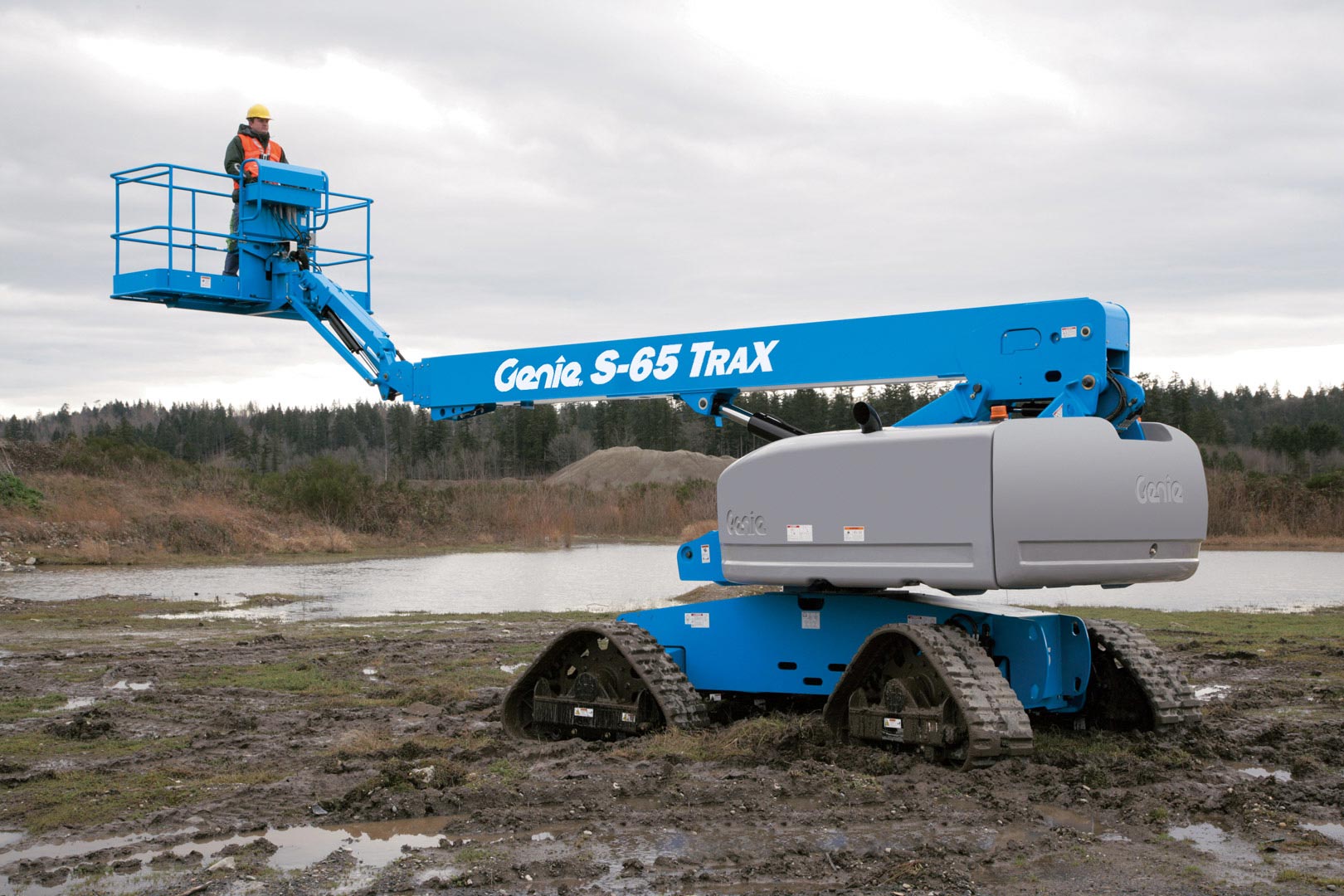

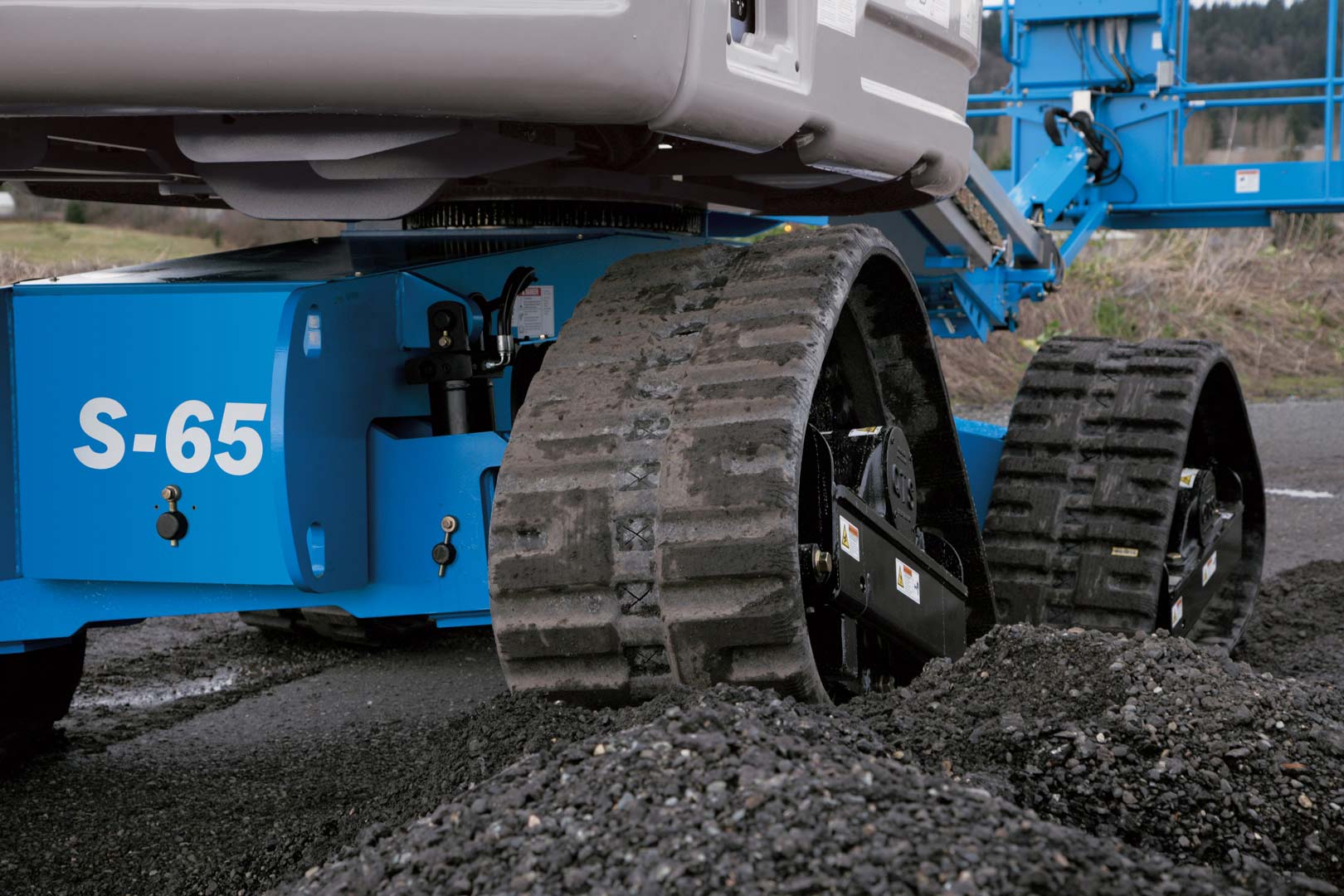

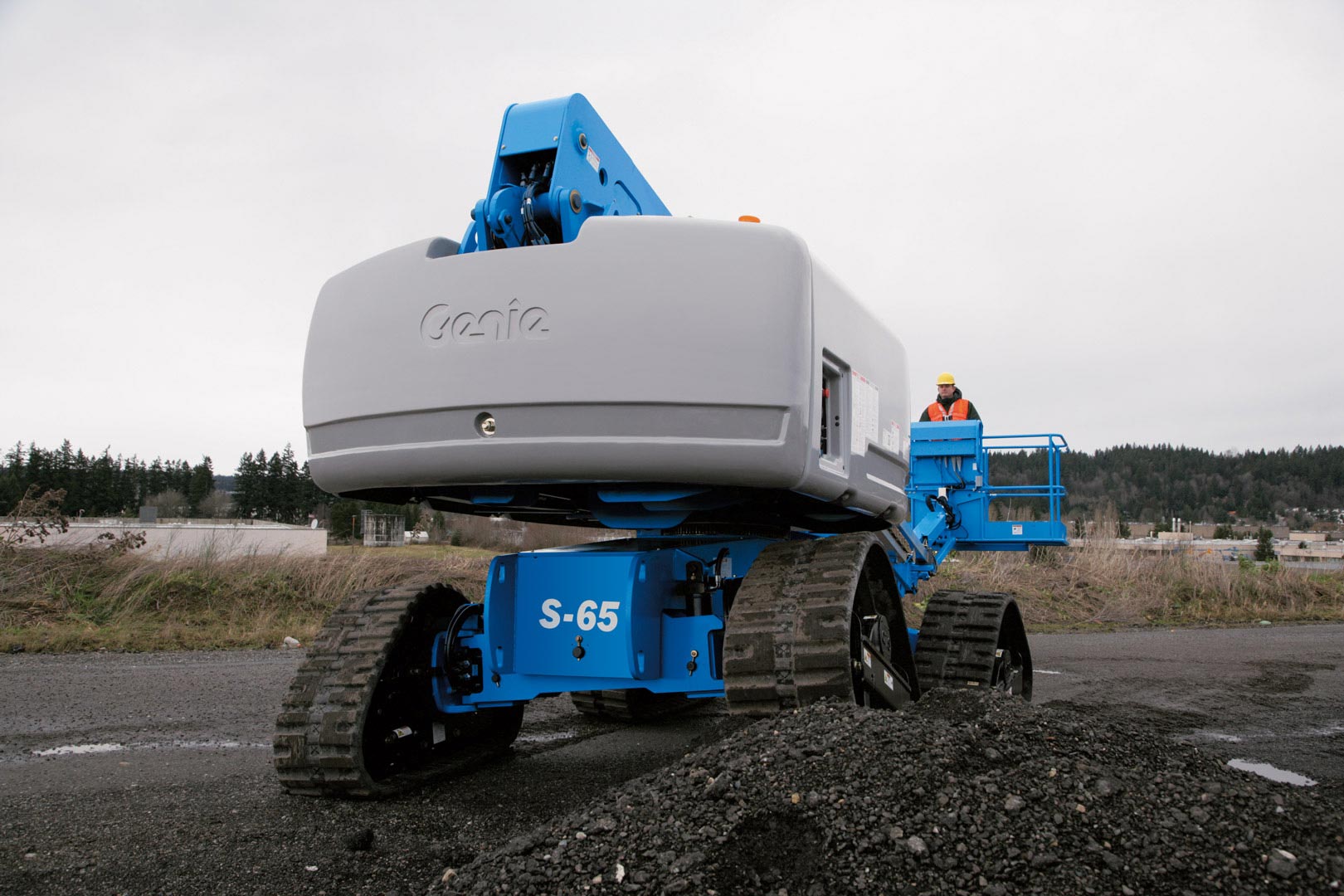

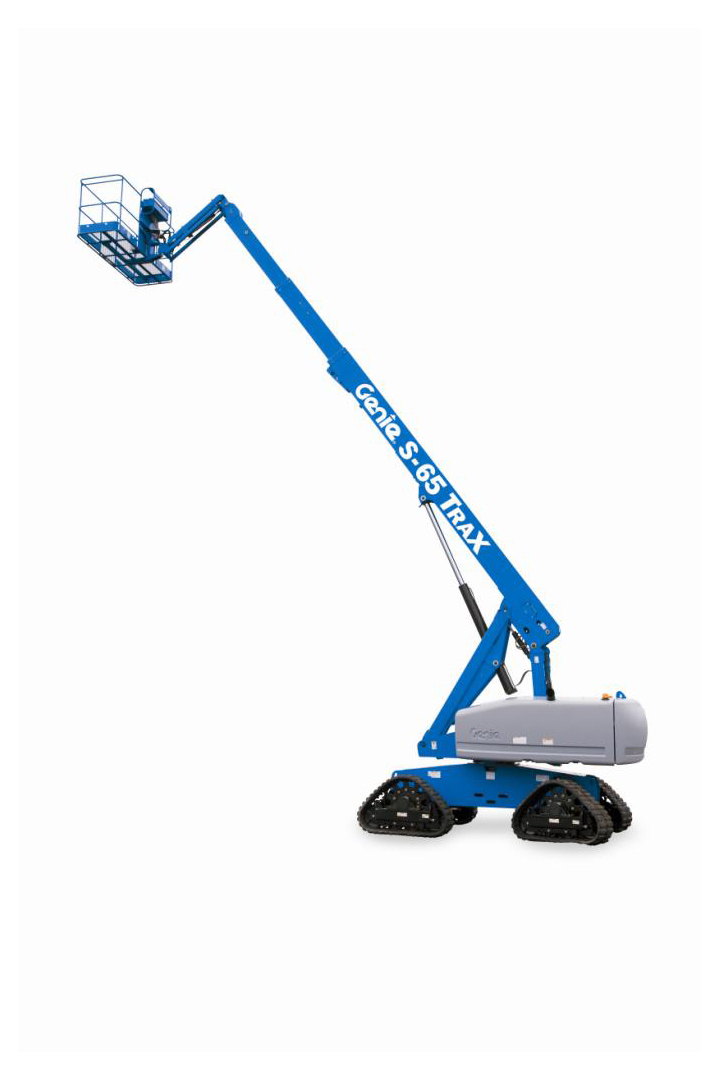

    • S-60 Trax or S-65 Trax: Quadra Track System
    • High floatation tires:  includes additional counterweight
    • Rough terrain, foam-filled tires (water based)
    • Rough terrain, foam-filled tires (petroleum based)
    • Rough terrain, non-marking air-filled tires
    • Rough terrain, non-marking, foam-filled tires (water based)
    • Rough terrain, non-marking, foam-filled tires  (petroleum based)
    • Tire sealant: air-filled tires only

    Engine Options

    • 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on S60/65 Trax)
    • 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
    • Diesel intake air pre-cleaner
    • LPS Fire protection rating: Ford engine only and requires LP only operation
    • Cold weather kit:  5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
    • Ford engine gauge package: oil pressure, temperature and voltage

    Lift/Turntable Options

    • Specialty hydraulic oil  (60 gal - cold weather, fire resistant, or biodegradable)
    • LPG tank, 33.5 lb. capacity: Ford engine only
    • Second battery
    • Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
    • Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner

    Platforms

    • 4 ft. front-entry steel platform
    • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
    • 6 ft. dual entry platform with side swing gate

    Platform Options

    • AC generator, 110V/60Hz or 220V/50Hz, 3000W, hydraulically driven
    • Air line to platform: ½ in. inner diameter
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Aircraft protection kit: with swing gate
    • Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
    • Lockable platform and ground control box covers
    • Panel cradle package
    • Platform auxiliary top rail
    • Thumb rocker steering
    • Welder - Select Lincoln or Miller
    • Welder ready package
    • Traveling fall arrest anchor system: requires 6ft platform
    • Traveling fall arrest anchor system: requires 8ft platform



  • Platform Capacity: 500 lb/1,000 lb | 227 kg/ 454 kg
  • Max Platform Height: 58 ft 4 in | 19.79 m
  • Below Ground Reach: 5 ft 7 in | 1.70 m
  • Max Horizontal Reach: 50 ft 10 in | 15.48 m
  • Machine Width and Length: S-60 X: 8 ft 2 in, 27 ft 9 in / S-65: 8 ft 2 in, 30 ft 11 in | S-60 X: 2.49 m, 2.72 m / S-65: 2.49 m, 9.42 m
