Key Features & Specs

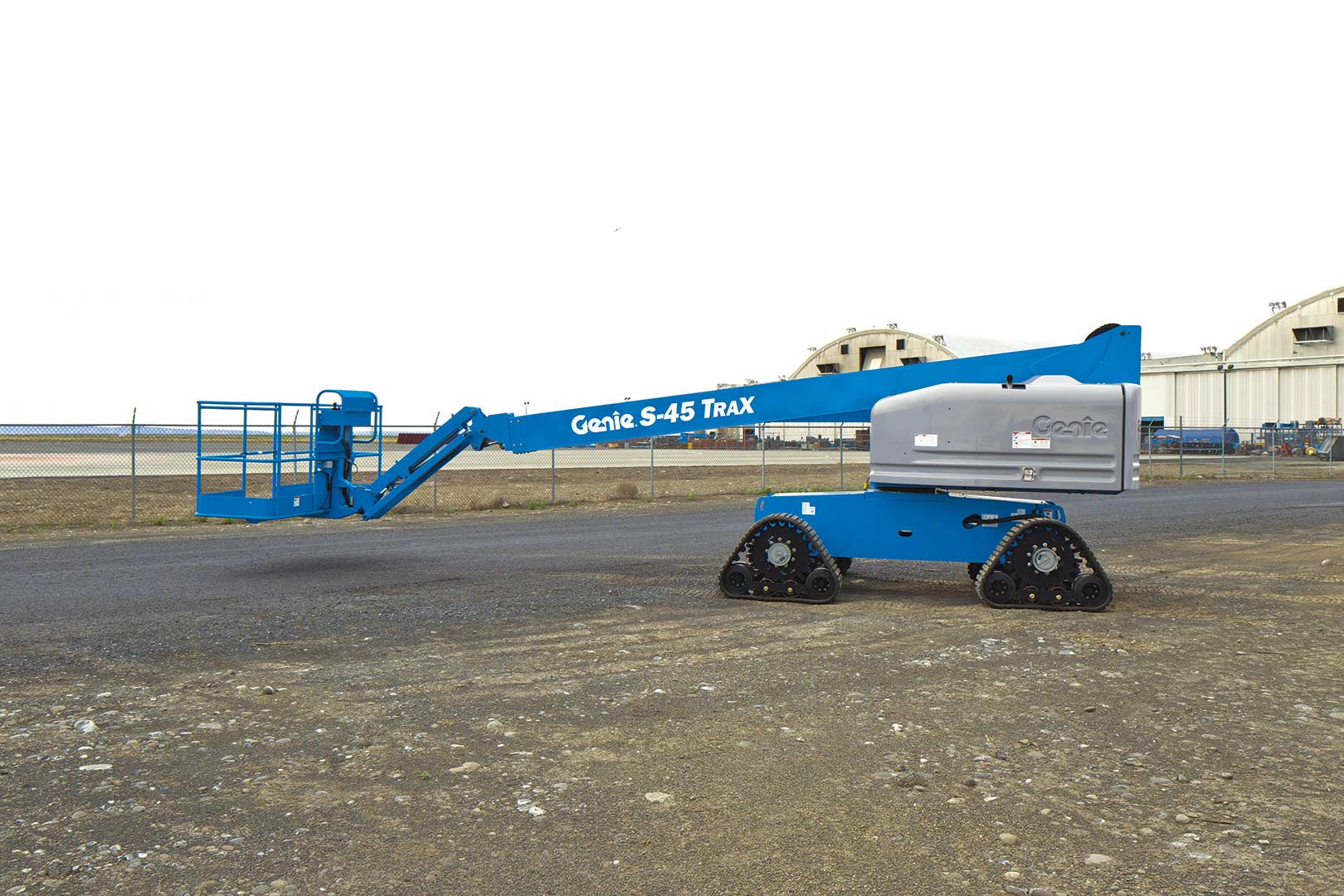

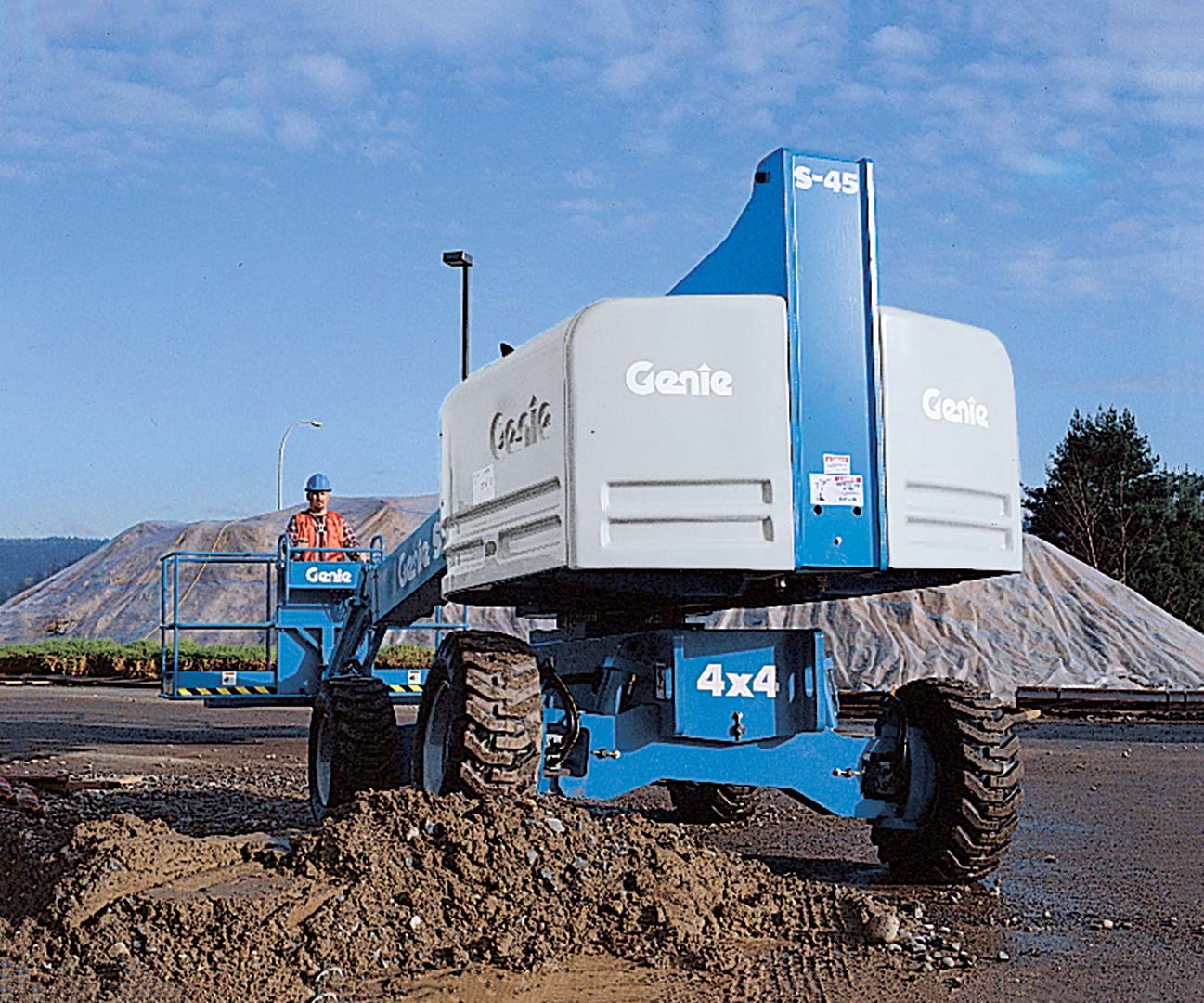

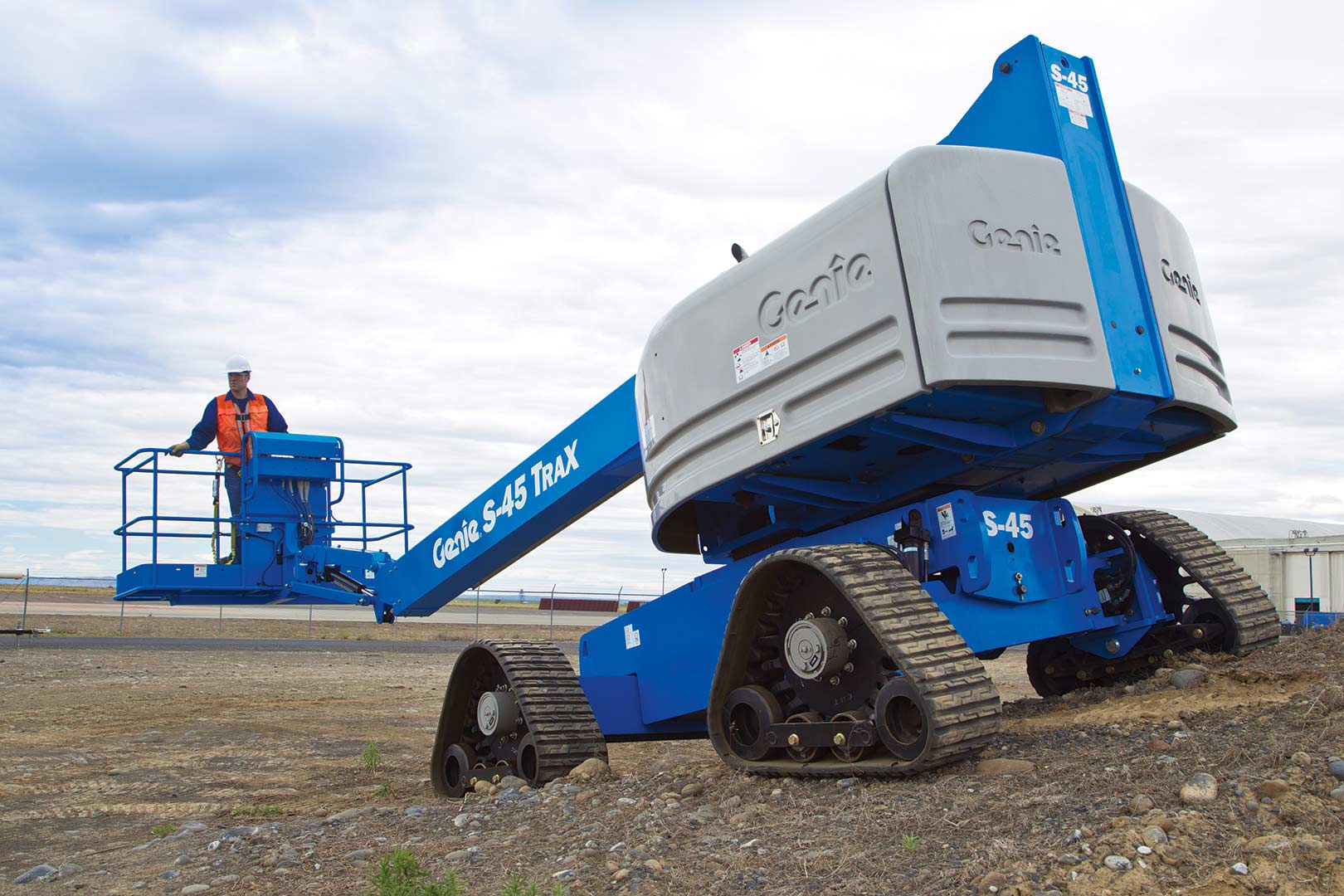

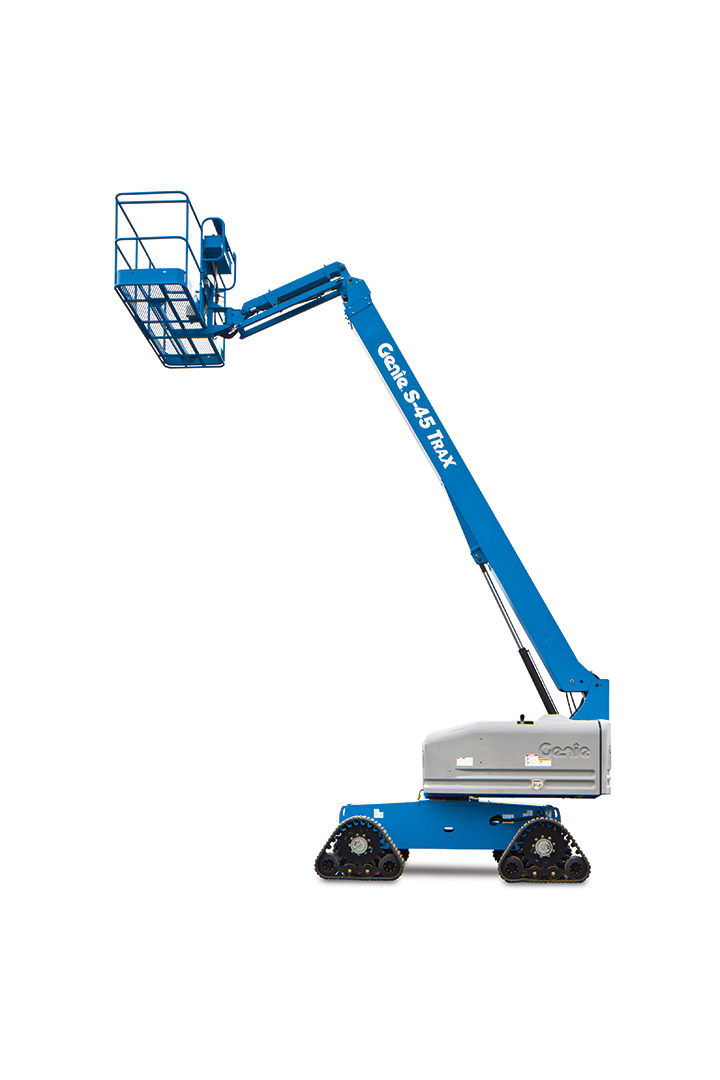

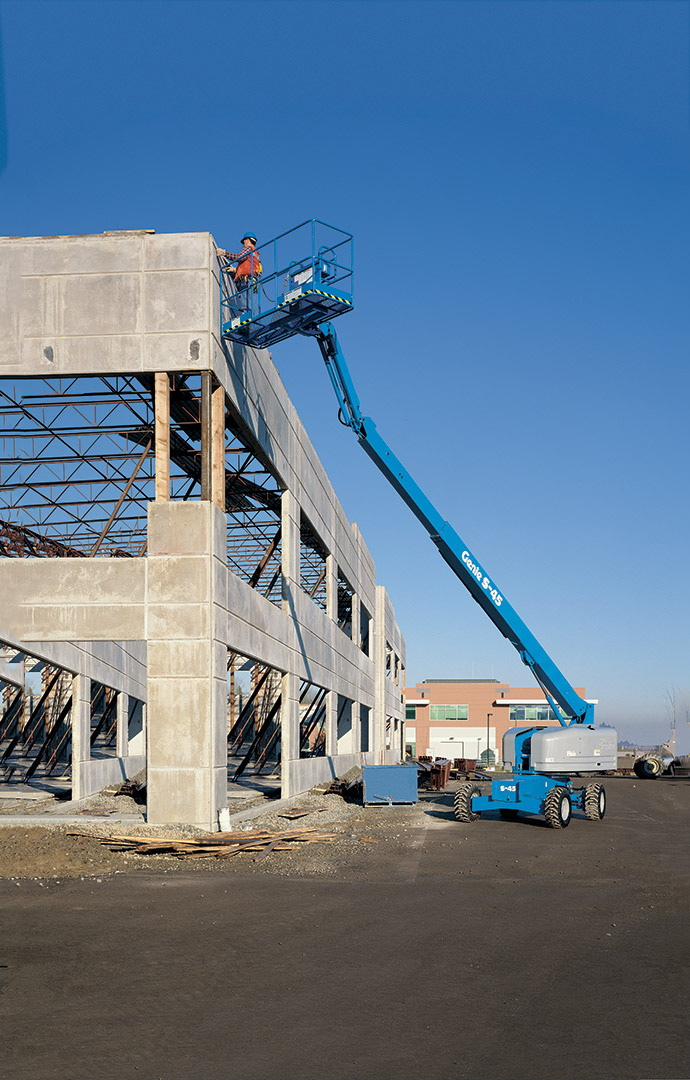

Genie® S®-40 and S®-45 telescopic booms increase productivity with the traction and drive speed needed to get around jobsites and work areas. These units are designed to easily maneuver in tight spaces on construction and industrial sites.

Overview

  • 360˚continuous rotation turntable for quick positioning
  • Automatic axle position adjustments for the increased terrainability and positive traction drive to maintain equal power to all drive wheels
  • Rotating, self-leveling platform with hydraulic platform rotation for easy positioning
  • Dual-fuel (gas or LPG) options available for indoor/outdoor applications
  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • Tow package

    Tire Options

    • S-40 Trax or S-45 Trax: Quadra Track System, requires 4WD
    • High floatation air-filled tires, requires 4WD
    • Rough terrain, foam-filled tires (water based)
    • Rough terrain, foam-filled tires (petroleum based)
    • Rough terrain, non-marking air-filled tires
    • Rough terrain, non-marking, foam-filled tires (water based)
    • Rough terrain, non-marking, foam-filled tires (petroleum based)
    • Tire sealant: air-filled tires only

    Engine Options

    • 60 hp Ford MSG425, gas/LPG Dual Fuel
    • Cold weather kit:  5W-40 synthetic engine oil, oil pan heater, battery heater
    • hydraulic tank heater and platform control board heater
    • Ford engine gauge package: oil pressure, temperature and voltage

    Lift/Turntable Options

    • Specialty hydraulic oil  (60 gal - cold weather, fire resistant, or biodegradable)
    • LPG tank, 33.5 lb. capacity: Ford engine only
    • Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
    • Deluxe hostile environment kit: hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, engine cover flaps

    Platforms

    • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
    • 6 ft. dual entry platform with side swing gate

    Platform Options

    • AC generator, 110V/60Hz , 110V/50Hz or 220V/50Hz, 3000W, hydraulically driven
    • Air line to platform: ½ in. inner diameter
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Aircraft protection kit: with swing gate
    • Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
    • Lockable platform and ground control box covers
    • Panel cradle package
    • Platform auxiliary top rail
    • Thumb rocker steering
    • Welder - Select Lincoln or Miller
    • Welder ready package: includes hydraulic oil cooler
    • Traveling fall arrest anchor system: requires 6ft platform
    • Traveling fall arrest anchor system: requires 8ft platform
  • Max Platform Height: S-40: 40 ft/ S-45: 45 ft | S-40: 12.2 m/ S-45: 13.7 m
  • Max Horizontal Reach: S-40: 31 ft 8 in/ S-45: 36 ft 8 in | S-40: 9.65 m/ S-45: 11.18 m
  • Machine Width and Length: S-40: 7 ft 6 in, 24 ft 3 in / S-45: 7 ft 6 in , 27 ft 10 in | S-40: 2.30 m, 7.39 m / S-45: 2.30 m, 8.48 m
  • Below Ground Reach: S-4: 3 ft 2 in/ S-45: 4 ft 11 in | S-40: 0.97 m/ S-45: 1.50 m
  • Platform Capacity: 500 lb | 227 kg
