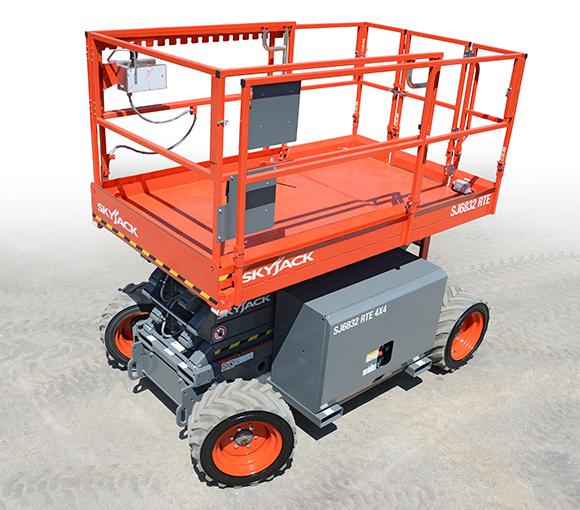

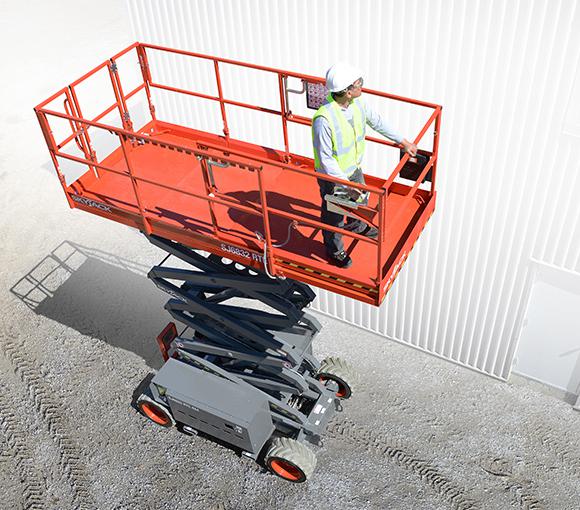

Skyjack SJ6832 RTE

Skyjack SJ6832 RTE

Skyjack SJ6832 RTE

SJ6832 RTE

Skyjack
Rough Terrain Scissor Lifts

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Lanyard attachment points
Color coded and numbered wiring
Standard foam filled grip lug non-marking tires
Relay based control system
45% Gradeability
All motion audible alarm
Full height spring-hinged gate at rear of unit
Low voltage battery protection
Hinged railing system
16hp AC electric motor with motor controller
Crossover symmetrical 4WD
Multiple wet disc spring applied, hydraulic release (SAHR) brakes
Drivable at full height with roll out deck fully extended
Operator horn
Forklift pockets and tie down/lift lugs
Telematics ready
110V AC outlet on platform with GFI
48V 250Ah battery pack
5’ roll out extension deck
Tilt alarm with drive & lift cut-out

Features
Documents

+ Expand All
- Close All

Overall Specifications

Work Height

38’ (11.58 m)

Raised Platform Height

32’ (9.75 m)

Lowered Platform Height

54” (1.37 m)

Overall Width

69.5” (1.76 m)

Overall Length

107” (2.72 m)

Stowed Height (Rails Up)

99” (2.51 m)

Stowed Height (Rails Down)

69” (1.75 m)

Platform Width (Inside Dimension)

56” (1.42 m)

Platform Length (Inside Dimension)

96” (2.44 m)

Extension Deck

5’ (1.52 m)

Ground Clearance

8” (0.20 m)

Wheelbase

80.5” (2.04 m)

Weight

7,885 lbs (3,577 kg)

Gradeability

45%

Turning Radius (Inside)

60” (1.52 m)

Turning Radius (Outside)

156” (3.96 m)

Lift Time (With Rated Load)

39 sec

Lower Time (With Rated Load)

36 sec

Drive Speed (Stowed)

3.5 mph (5.6 km/h)

Drive Speed (Raised)

0.4 mph (0.6 km/h)

Maximum Drive Height

Full Height

Capacity (Overall)

1,000 lbs (454 kg)

Distributed Capacity (Main Platform)

700 lbs (318 kg)

Distributed Capacity (Extension Deck)

300 lbs (136 kg)

Local Floor Load (With Rated Load)

184 psi (1269 kPa)

Overall Floor Load (With Rated Load)

281 psf (13 kPa)

Maximum # of Persons

4

Tire Type

Foam Filled Non-Marking

Tire Size

26 x 12
