Key Features & Specs

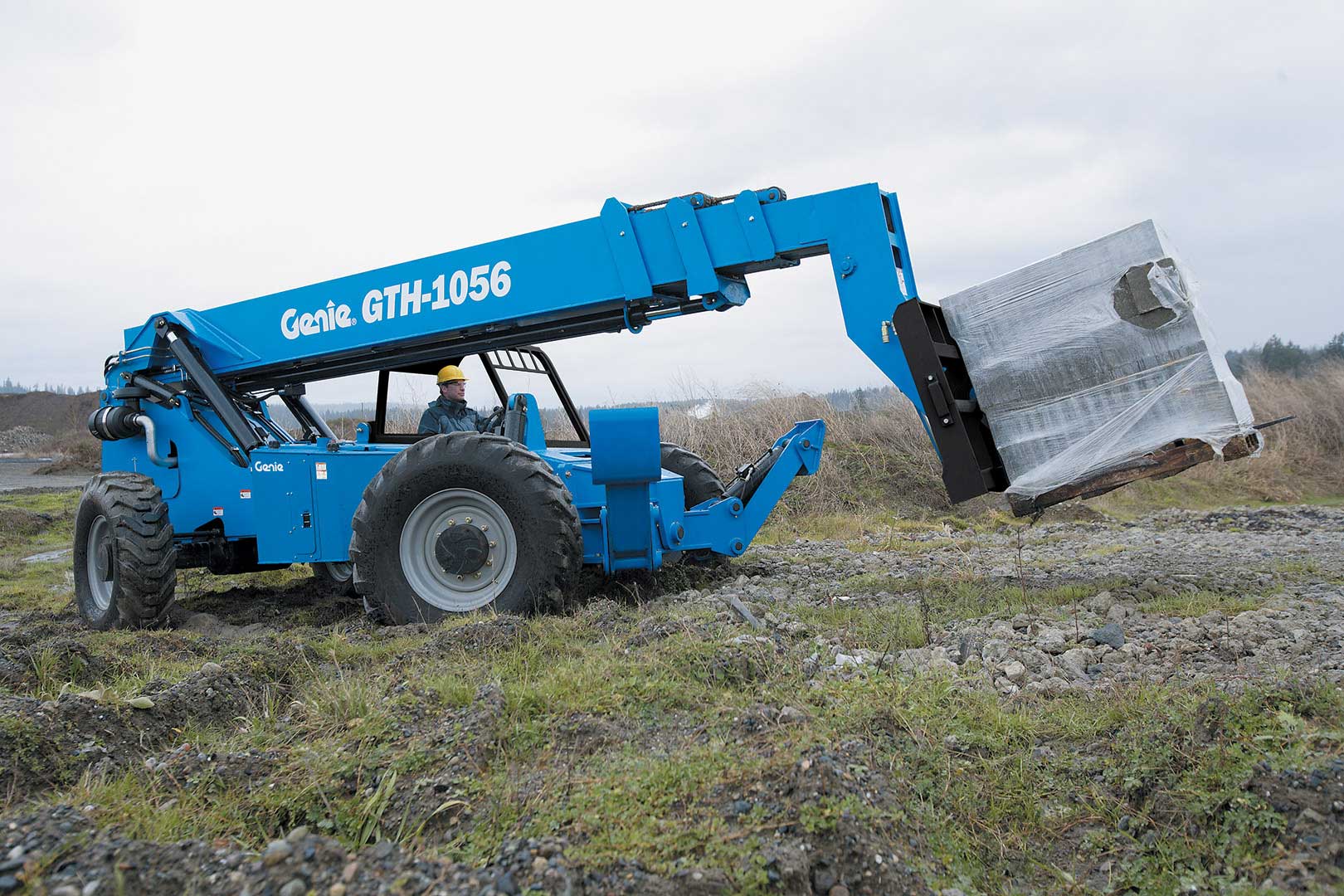

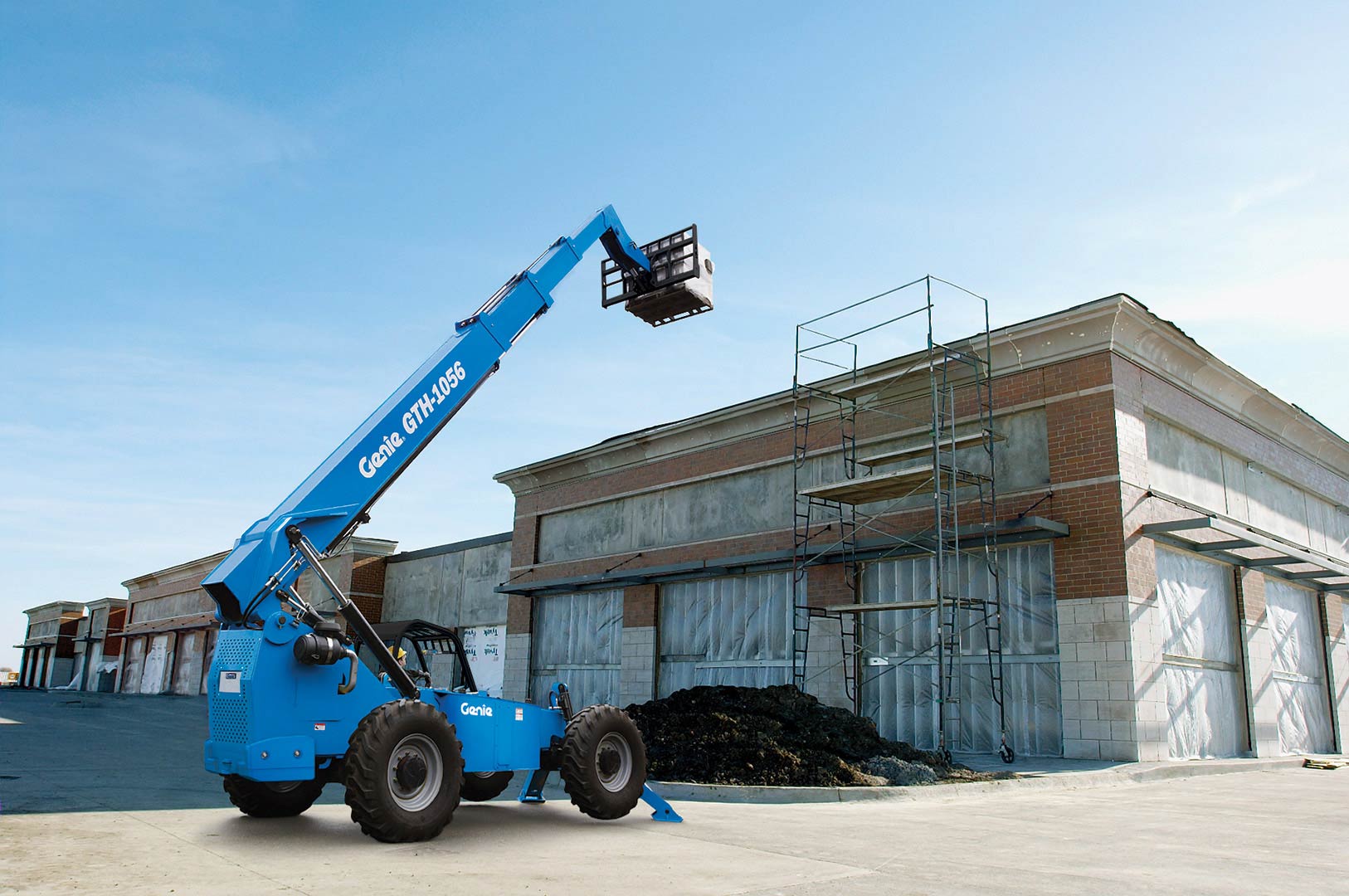

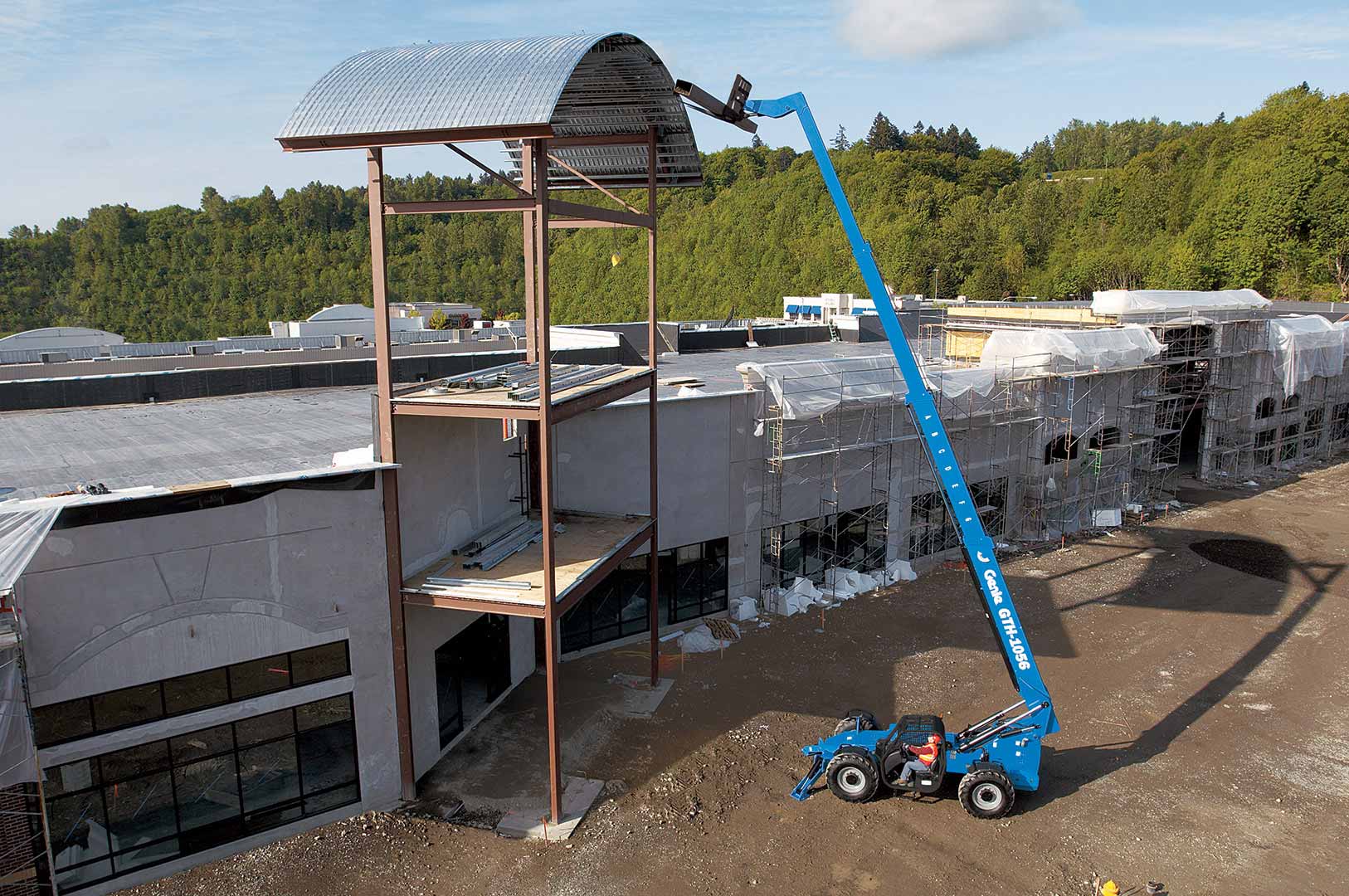

The Genie® GTH™-1056 telehandler offers excellent lift capacity and a maximum forward reach 42 ft (12.8 m) to move heavy loads over obstacles. Powerful four-wheel drive and turbocharged diesel engine to handle even the toughest worksite conditions.

Overview

  • Compact outside turning radius and excellent ground clearance
  • Powershift transmission with three speeds forward and reverse
  • Multi-function proportional joystick control for fast, precise positioning
  • Frame-leveling chassis — pick up or place loads on up to 10˚ side slopes



  • + Expand All
  • - Close All
  • Options

    Cab Configuration

    • Front and top glass
    • Fully enclosed cab:  full glass, heater, defroster, wipers, washer and split door
    • Fully enclosed cab with air conditioner:  full glass, heater, defroster, wipers, washer and split door

    Tire Options

    • Foam-filled rough terrain tires
    • Solid rough terrain tires

    Carriage/Attachment Options

    • 48 in. manual Quick-Attach™ carriage
    • 60 in. QA carriage
    • 72 in. QA carriage
    • 48 in. QA side tilt (rotating) carriage
    • 60 in. QA side tilt (rotating) carriage
    • 72 in. QA swing carriage (45 deg L/R)
    • 14 ft.QA Variable reach truss boom

    Fork Options

    • 48 in. pallet forks (2 x 4 x 48 in.)
    • Set of two 60 in. pallet forks,  2 x 4 x 60 in.
    • Set of two 72 in. pallet forks, 2 x 4 x 72 in.
    • Set of two 60 in. lumber forks, 1.75 x 7 x 60 in.
    • Set of six 48 in. cubing tines,  2 x 2 x 48 in.

    Accessories

    • Electric block heater
    • Dual joystick control
    • Fire extinguisher
    • Flashing beacon
    • Right side steel mesh screen for open canopy
    • Work lights:   High output LED cab, boom, rear
    • Road and Work lights:   Work lights and front turn/headlights, rear stop/turn/tail
    • Rear proximity alarm
    • Rear proximity alarm ready
  • Capacity at Max Reach: 3,000 lbs | 1,361 kg
  • Max Lift Capacity: 10,000 lb | 4,536 kg
  • Max Forward Reach: 42 ft | 12.80 m
  • Capacity at Max Height: 4,000 lb | 1,814 kg
  • Max Lift Height: 56 ft 10 in | 17.32 m
