Key Features & Specs

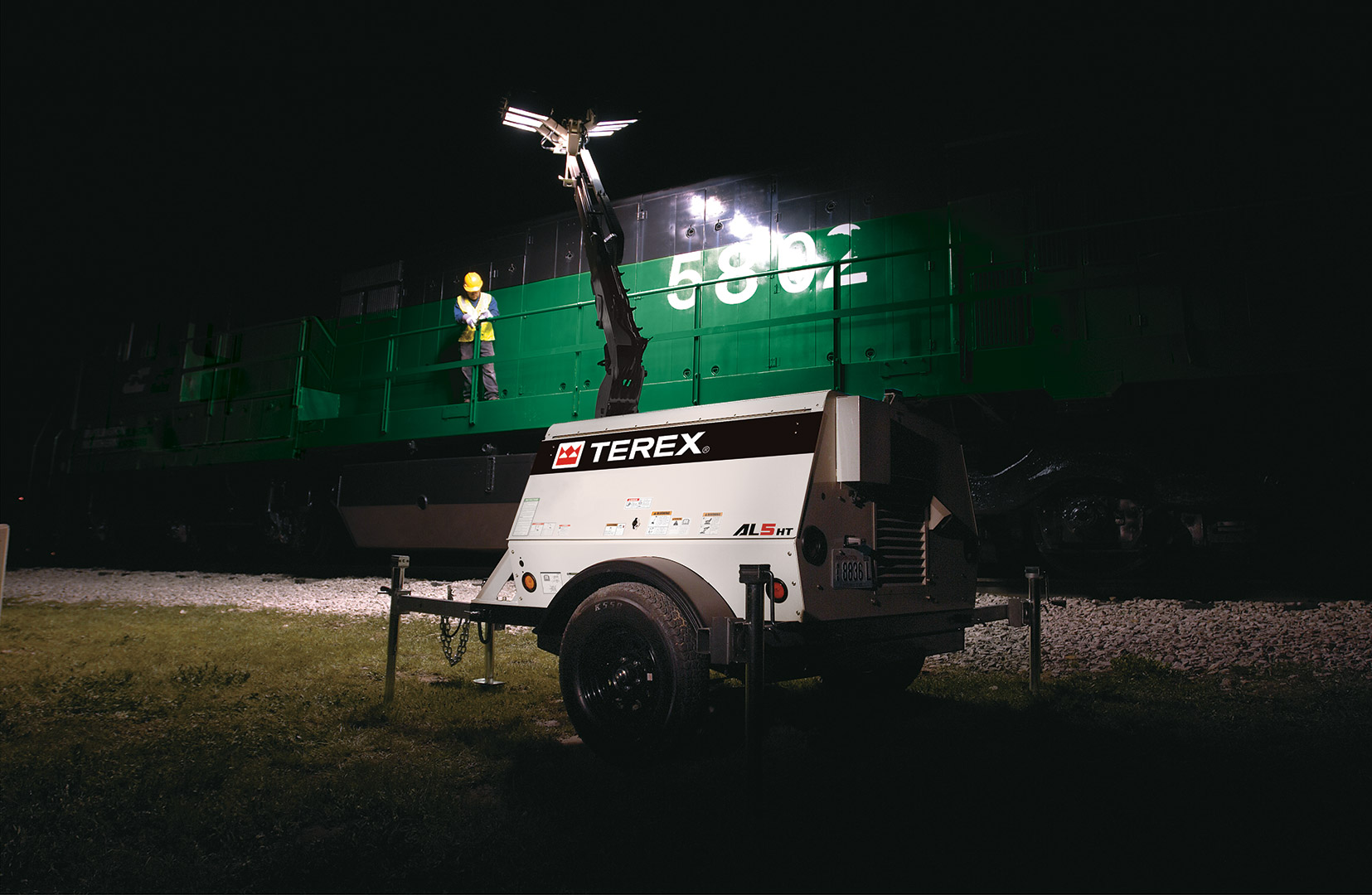

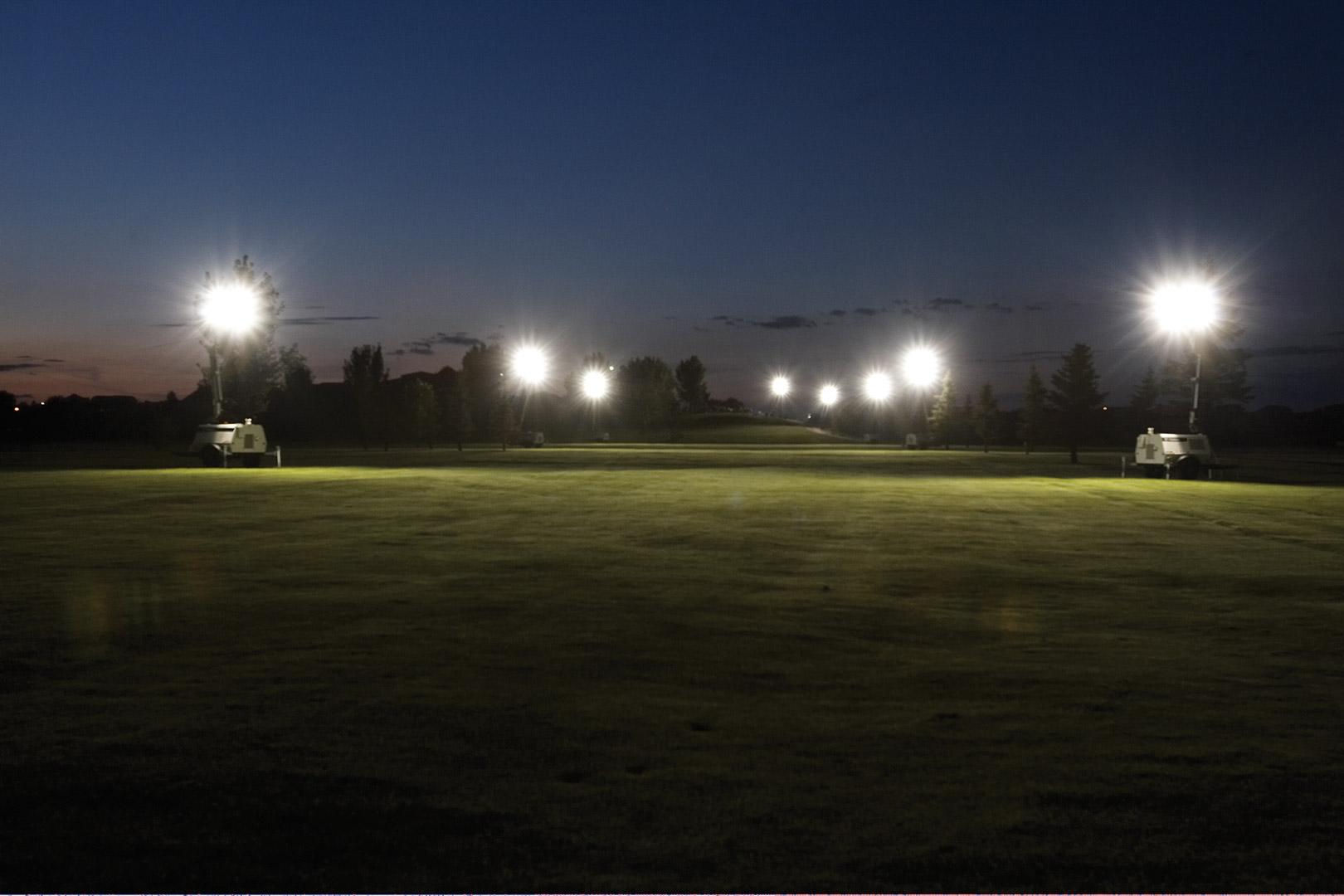

No matter what your lighting needs, the Terex® AL™5 HT series of light towers offers the options and durability to deliver consistent, reliable light to your jobsite — from construction and mining to oil field applications.

Overview

  • 4,000 Watts of light from 4 x 1000 Watt metal halide lamps
  • Reliable Kubota engine and 8 kW generator
  • Up to 20 kW generator option with extra power to run additional tools and equipment

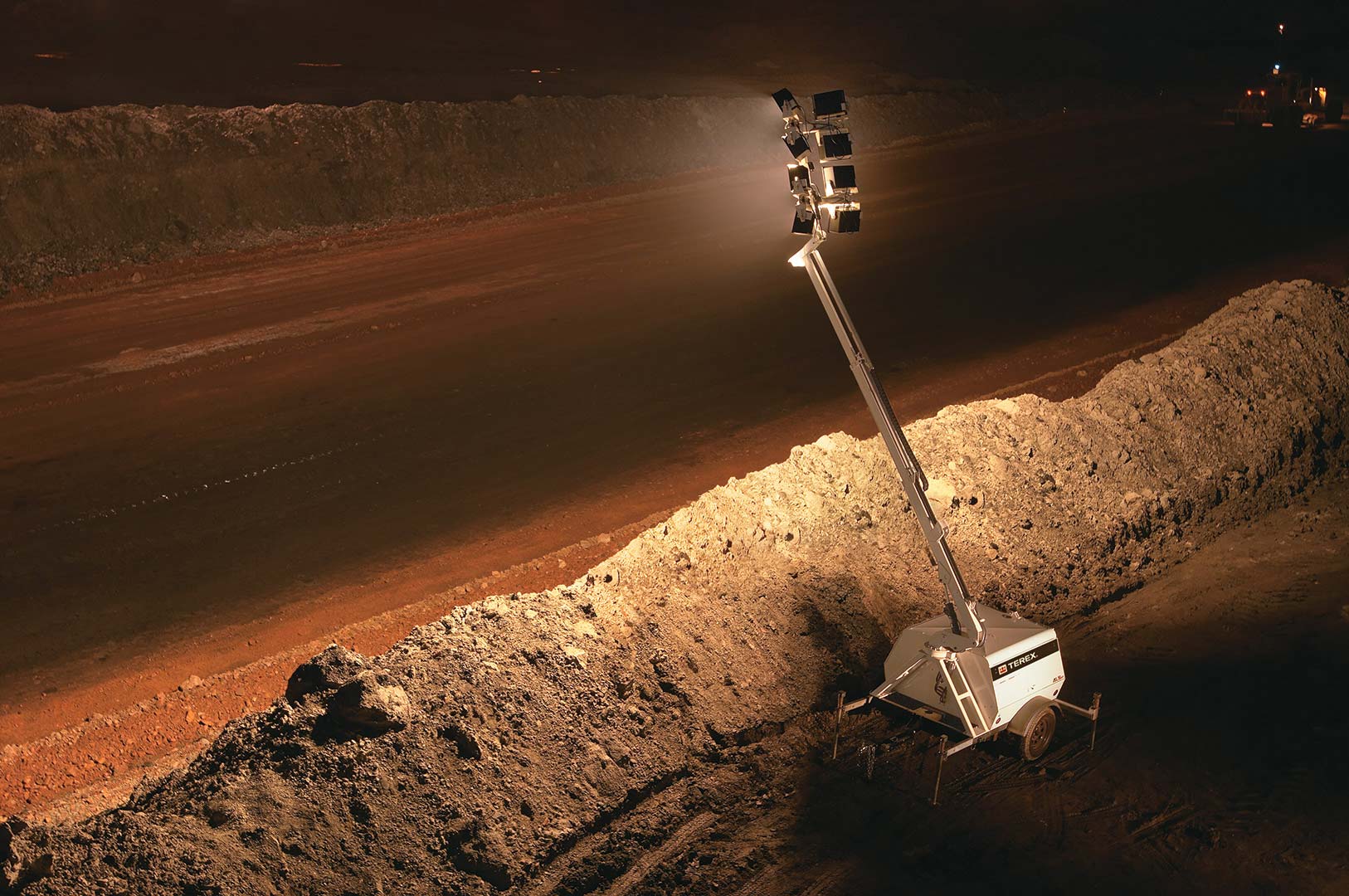

  • Rotating and articulated hydraulic mast reaches out to the front, back and sides

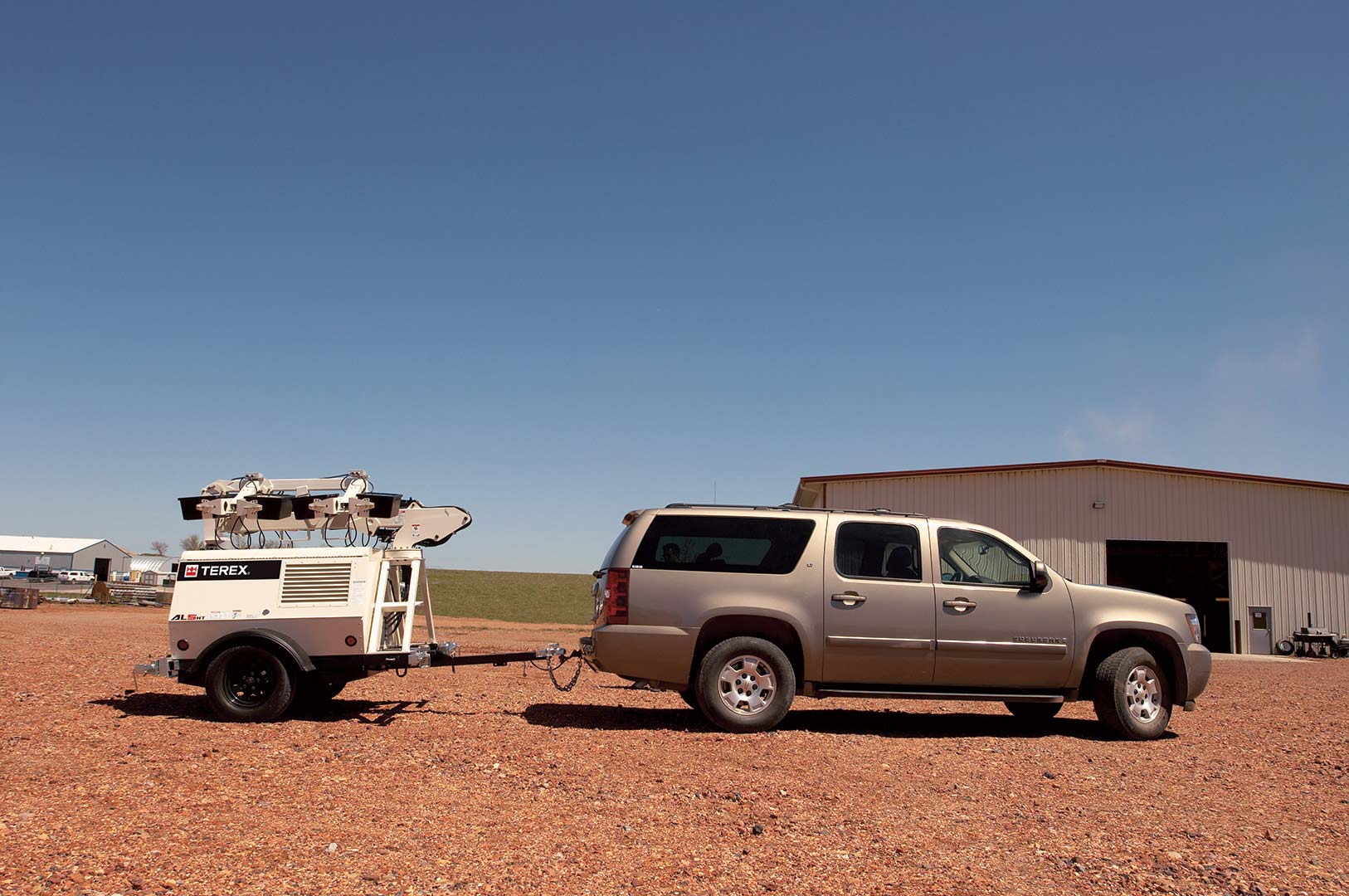

  • Heavy-duty chassis and 4,200-lb (1,905 kg) rated axle to handle towing on rough roads
  • + Expand All
  • - Close All
  • Options
    Chassis Options
    • 30 gal fuel tank with spill containment
    • 60 gal fuel tank
    • 60 gal fuel tank with spill containment
    • Spare tire and wheel
    • Tough coat paint surface: cabinet and trailer front
    • Trailer brakes, electric
    • Trailer brakes, hydraulic surge: ball hitch
    • Trailer brakes, hydraulic surge: ring hitch

    Hitch Options

    • 2 5/16 inch ball coupler
    • 2 1/2 inch I.D. pintle ring coupler
    • Combination ring and ball hitch
    • 2 1/2 inch ring hitch, adjustable, 6"
    • 3 Inch ring hitch, adjustable, 6"
    • 2 inch bulldog hitch, fixed
    • 2 5/16 inch bulldog hitch, fixed
    • 2 5/16 inch bulldog hitch, adjustable, 6"

    Engine Options

    • 15 kW, 50 Hz generator with 16.3 hp Kubota diesel
    • 20 kW, 60 Hz generator, with 33.0 hp Isuzu turbo diesel -includes external receptacle package, and 2 ea. 20A/120V GFI, & 3 ea. 30A/240V T/L, 800 CCA battery,  fuel/water separator filter
    • Auto-Start
    • Automatic air shutdown
    • Fuel/water separator filter
    • Fuel/water separator with fuel line heater

    Tower Options

    • 6 metal halide lights
    • 8 metal halide lights: only available with 20 kW engine option
    • Tower Lock kit

    Cold Weather Options

    • Cold Weather Package (includes 800 CCA battery, heater blanket, coolant heater, and low temp coolant)
    • 1000 CCA battery
    • Battery heater blanket
    • Engine block heater
    • Low temperature coolant mixture (-40° F)
  • Tower Height: 28 ft 9 in | 8.76 m
  • Generator Size: Brushless 60 Hz, 8.0 kW
  • Fuel Capacity: 30 gal | 114 L
  • Lamps: Metal halide 4 x 1,000 W
