Key Features & Specs

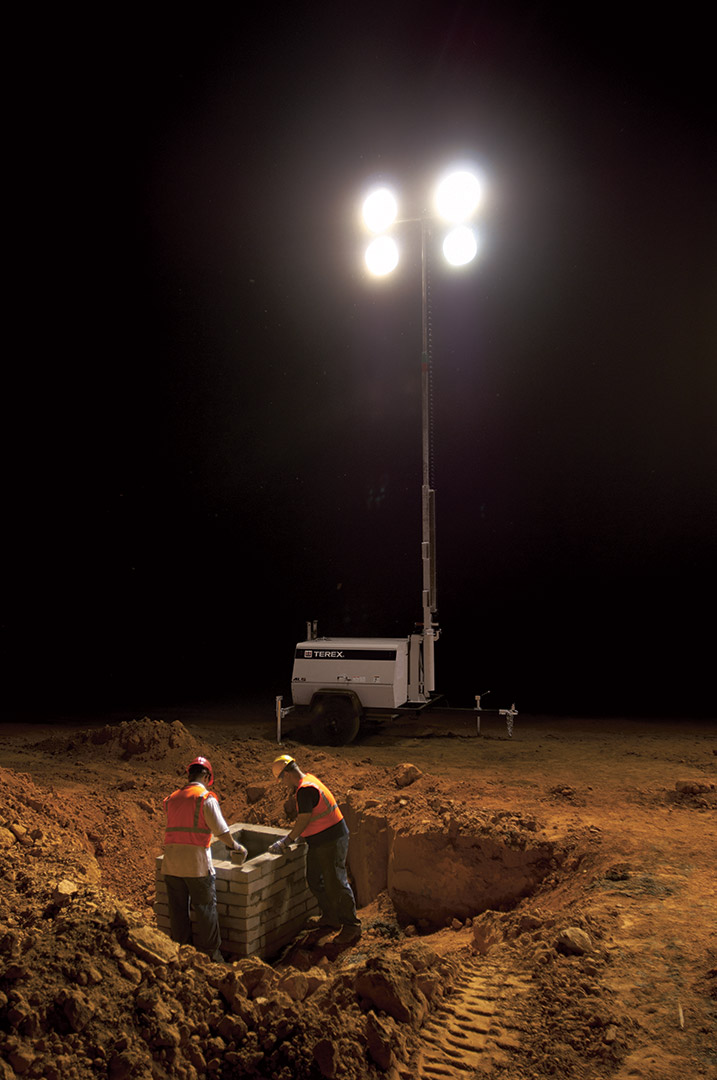

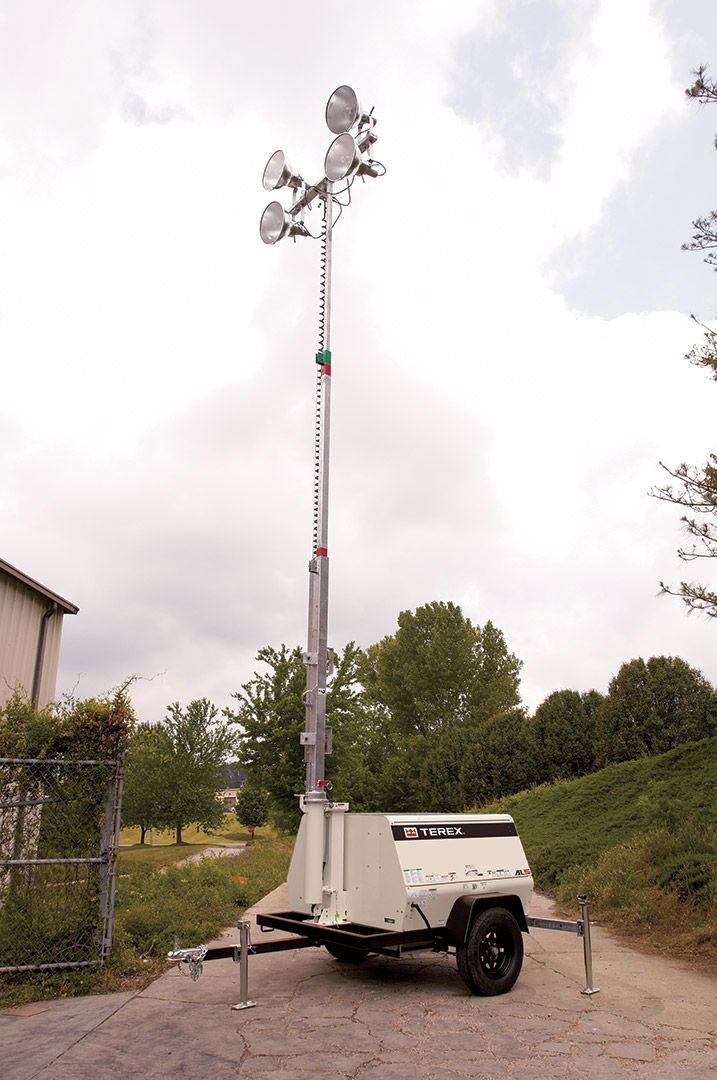

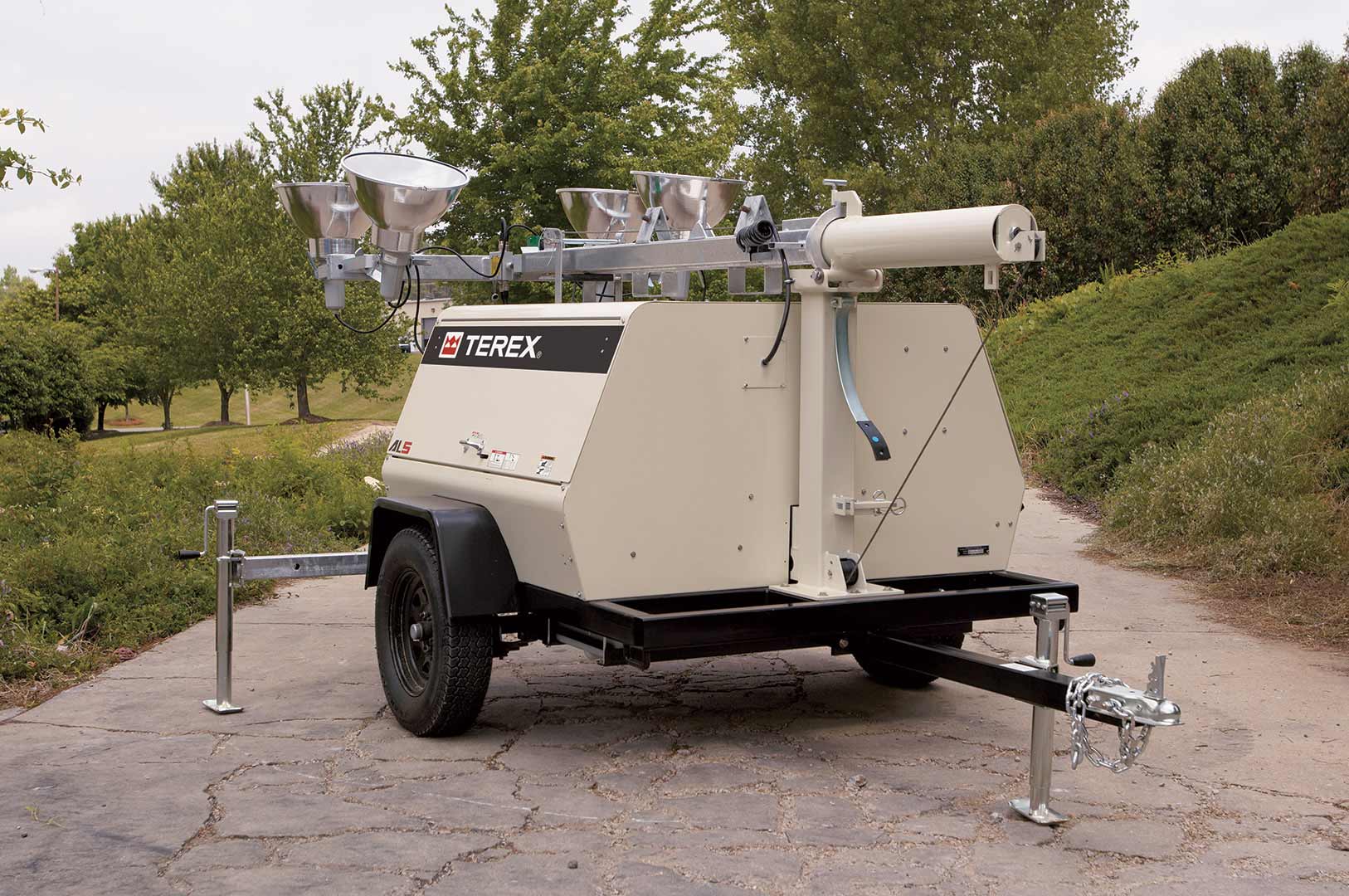

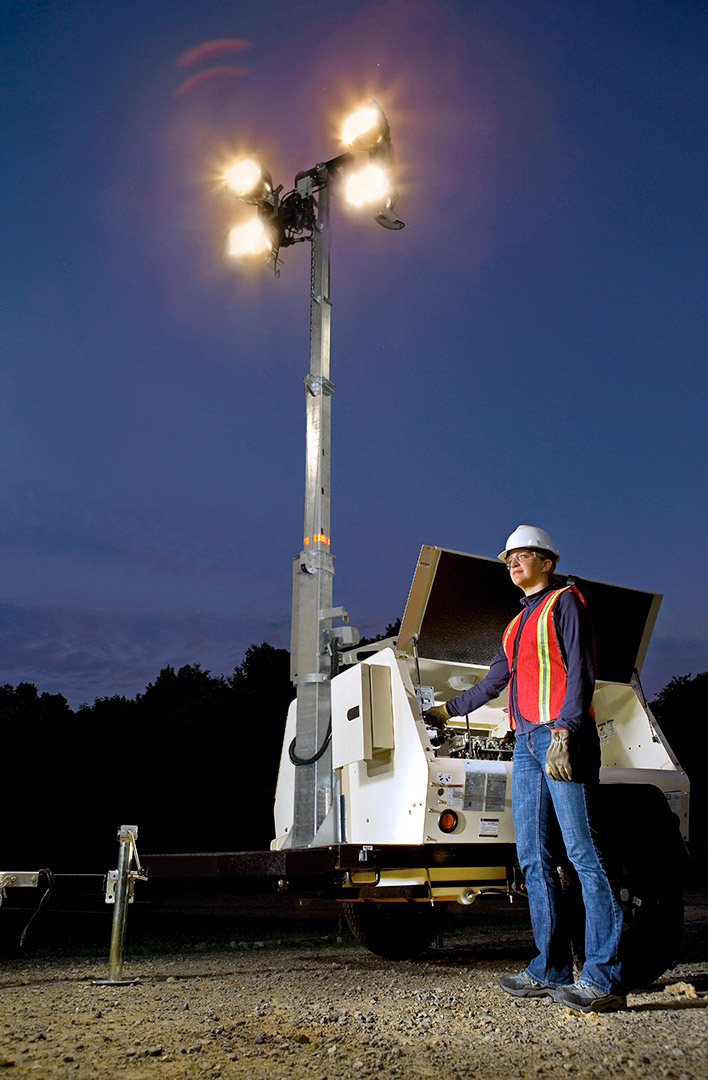

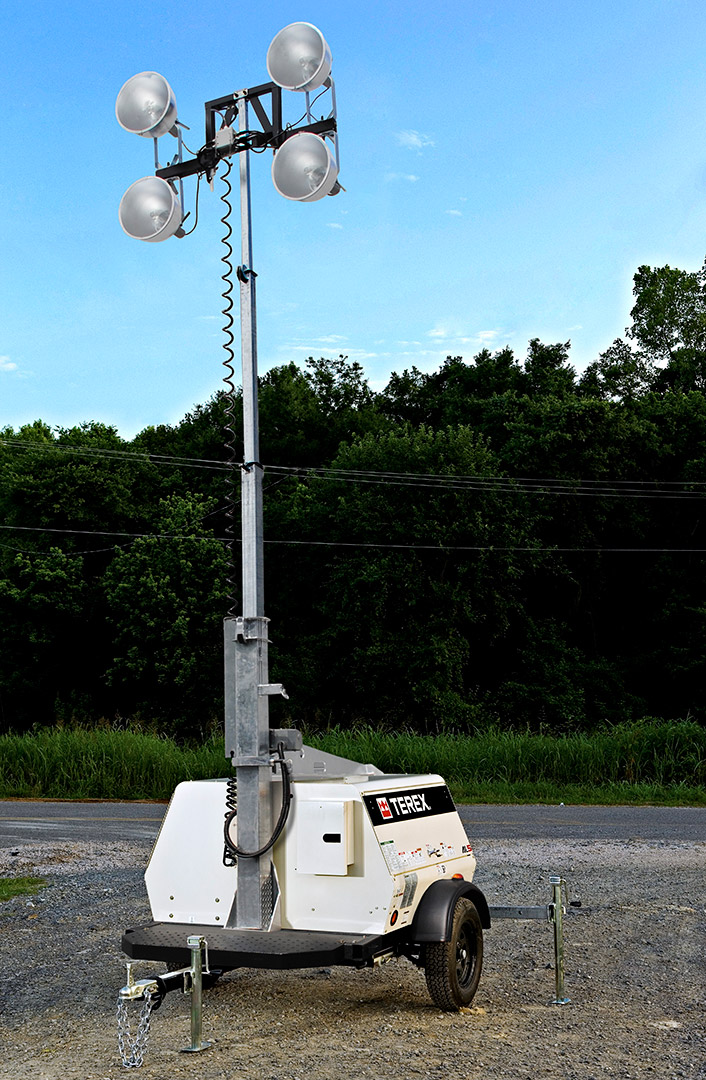

No matter what your lighting needs, the Terex® AL™5 series of light towers offers the options and durability to deliver consistent, reliable light to your jobsite. The 30-ft (9.14 m) extended-height floodlight tower provides 4,000 Watts of light while the optional 20 kW generator provides plenty of extra power to run additional tools and equipment.

Overview

  • 4 x 1000 Watt metal halide lamps
  • Kubota engine and 8 kW generator
  • 359º non-continuous tower rotation and retractable mast cable
  • Heavy duty mast, chassis and 3,500-lb (1,587.6 kg) rated axle to handle towing on rough roads
  • Vertical Mast Option features and electronic wench for quick mast deployment, raising lights to full height in 30 seconds.
  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • 30 gal fuel tank with spill containment
    • 60 gal fuel tank
    • 60 gal fuel tank with spill containment
    • Export racking and preparation
    • Extra GFI duplex receptacle, 20A/120V with breaker
    • Rubber door hold-down latches
    • Spare tire and wheel
    • Tough coat paint surface: cabinet and trailer front
    • Trailer brakes, electric
    • Trailer brakes, hydraulic surge: ball hitch
    • Trailer brakes, hydraulic surge: ring hitch

    Hitch Options

    • 2 5/16 inch ball coupler
    • 2 1/2 inch I.D. pintle ring coupler
    • Combination ring and ball hitch
    • 2 1/2 inch ring hitch, adjustable, 6"
    • 3 Inch ring hitch, adjustable, 6"
    • 2 inch bulldog hitch, fixed
    • 2 5/16 inch bulldog hitch, fixed
    • 2 5/16 inch bulldog hitch, adjustable, 6"

    Engine Options

    • 20 kW, 60 Hz generator, with 33.0 hp Isuzu turbo diesel -includes external receptacle package, and 2 ea. 20A/120V GFI, & 3 ea. 30A/240V T/L, 800 CCA battery,  fuel/water separator filter
    • Automatic air shutdown
    • Fuel/water separator filter
    • Fuel/water separator with fuel line heater

    Tower Options

    • Vertical mast with electric winch
    • 6 metal halide lights
    • Electronic winch, 12 volt

    Cold Weather Options

    • Cold Weather Package (includes 800 CCA battery, heater blanket, coolant heater, and low temp coolant)
    • 800 CCA battery
    • 1000 CCA battery
    • Battery heater blanket
    • Engine block heater
    • Low temperature coolant mixture (-40° F)
  • Generator Size: Brushless 60 Hz, 8.0 kW
  • Fuel Capacity: 30 gal | 114 L
  • Lamps: Metal halide 4 x 1,000 W
  • Tower Height: 30 ft | 9.14 m
