Key Features & Specs

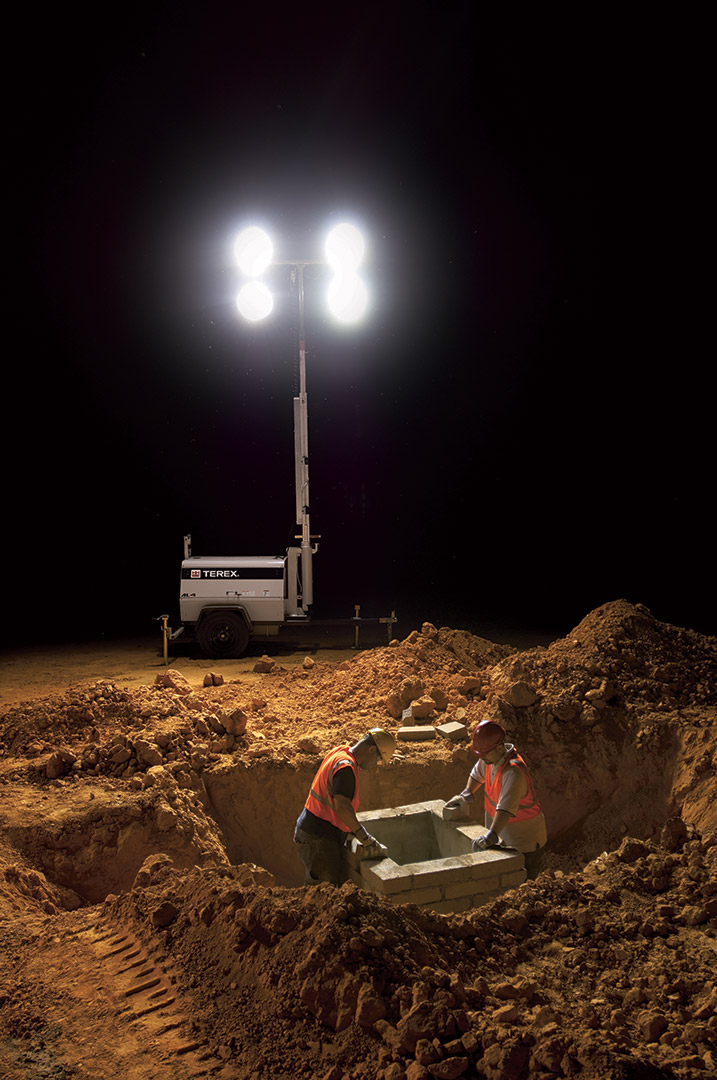

The 30-ft (9.14 m) extended-height, heavy-duty Terex® AL™4 floodlight tower provides 4,000 Watts of light and is designed to maximize uptime with quick disconnect lights and ballasts, 359º non-continuous tower rotation, heavy duty axles and chassis, and galvanized masts and outriggers.

Overview

  • 4,000 Watts of light from 4 x 1,000 Watt metal halide lamps
  • Reliable Kubota engine and 6 kW generator
  • Quiet 71 dBA sound levels at 23 ft (7 m)
  • Fuel-efficient operation for up to 60 hours of run time per tank
  • Heavy-duty mast, chassis and 3,500-lb (1,587.6 kg) rated axle to handle towing on rough roads
  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • 30 gal fuel tank with spill containment
    • 50 gal fuel tank
    • Dome light with switch, 12V
    • Export racking and preparation
    • Spare tire and wheel
    • Tough coat paint surface: cabinet and trailer front
    • Trailer brakes, electric
    • Trailer brakes, hydraulic surge: ball hitch
    • Trailer brakes, hydraulic surge: ring hitch

    Hitch Options

    • 2 5/16 inch ball coupler
    • 2 1/2 inch I.D. pintle ring coupler
    • Combination ring and ball hitch
    • 2 1/2 inch ring hitch, adjustable, 6"
    • 3 Inch ring hitch, adjustable, 6"
    • 2 inch bulldog hitch, fixed
    • 2 5/16 inch bulldog hitch, fixed
    • 2 5/16 inch bulldog hitch, adjustable, 6"

    Engine Options

    • 7 kW, 50 Hz, generator with 13.6 hp Kubota diesel
    • 8 kW, 60 Hz, generator with 13.6 hp Kubota diesel
    • Automatic air shutdown
    • Fuel/water separator filter
    • Fuel/water separator with fuel line heater

    Tower Options

    • 4 horizontally mounted lights: cast aluminum square housing
    • Electronic winch, 12 volt

    Cold Weather Options

    • Cold Weather Package (includes 800 CCA battery, heater blanket, coolant heater, and low temp coolant)
    • 800 CCA battery
    • Battery heater blanket
    • Engine block heater
    • Low temperature coolant mixture (-40° F)
  • Fuel Capacity: 30 gal | 114 L
  • Generator Size: Brushless 60 Hz, 6.0 kW
  • Lamps: Metal halide 4 x 1,000 W
  • Tower Height: 30 ft | 9.14 m
