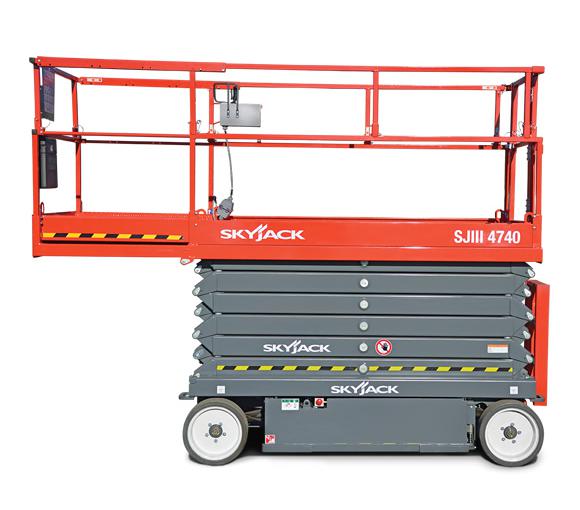

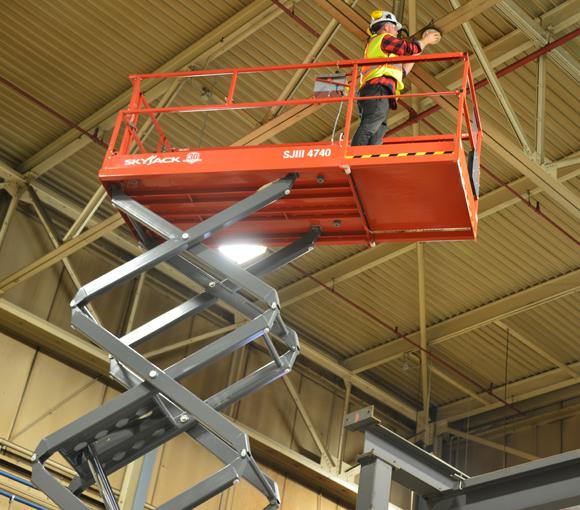

Skyjack SJIII 4740

Skyjack SJIII 4740

Skyjack SJIII 4740

SJIII 4740

Skyjack
DC Electric Scissors

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

28 mph wind rating (12.5m/sec)
Telematics ready
Color coded and numbered wiring system
Variable speed, front wheel hydraulic drive
Dual holding brakes
Low voltage battery protection
Operator horn
Drivable at full height
110V AC outlet on platform with GFI
25% Gradeability
Pothole protection system
Forklift pockets and tie down/lift lugs
Lanyard attachment points
24V DC power source
Solid rubber, non-marking tires
Half height hinged gate
DC Motor controller
Hinged railing system
All motion audible alarm
Relay based control system
Proportional controls for drive & lift functions
3’ (0.9 m) Roll out extension deck
Tilt alarm with drive & lift cut-out

Features
Documents

+ Expand All
- Close All

Overall Specifications

Work Height

45.5? (13.8 m)

Raised Platform Height

39.5? (12.0 m)

Lowered Platform Height

54" (1.37 m)

Overall Width

47" (1.19 m)

Overall Length

94.5" (2.40 m)

Stowed Height (Rails Up)

97.9" (2.49 m)

Stowed Height (Rails Down)

78.2” (1.99 m)

Platform Width (Inside Dimension)

42" (1.06 m)

Platform Length (Inside Dimension)

86" (2.19 m)

Extension Deck (Roll Out)

3' (0.9 m)

Ground Clearance (raised)

3.19" (8.1 cm)

Wheelbase

73" (1.85 m)

Weight

7480 lbs (3393 kg)

Gradeability

25%

Turning Radius (Inside)

21" (0.54 m)

Turning Radius (Outside)

101" (2.58 m)

Lift Time (With Rated Load)

71 sec

Lower Time (With Rated Load)

41 sec

Drive Speed (Stowed)

2.0 mph (3.2 km/h)

Drive Speed (Raised)

0.62 mph (1.0 km/h)

Maximum Drive Height

Full Height

Capacity (Overall)

500 lbs (227 kg)

Maximum # of Persons

2

Wind Rating

28 mph (12.5 m/s)

Tire Type

Solid, N/M

Tire Size

16 x 5 x 12
