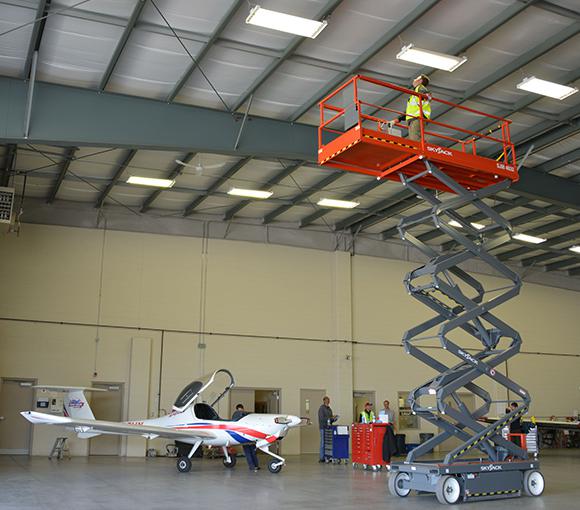

Skyjack SJIII 4626/32

Skyjack SJIII 4626/32

SJIII 4626/32

Skyjack
DC Electric Scissors

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Dual holding brakes
Up to 30% Gradeability
Lanyard attachment points
Relay based control system
110V AC outlet on platform with GFI
Solid rubber, non-marking tires
Forklift pockets and tie down/lift lugs
Low voltage battery protection
DC Motor Controller
All motion audible alarm
Operator horn
Hinged railing system
Pothole protection system
Variable speed, rear two wheel hydraulic drive
28 mph wind rating (12.5 m/s)
24V DC power source
Color coded and numbered wiring system
Telematics ready
Drivable at full height
4’ (1.22 m) Roll out extension deck
Tilt alarm with drive & lift cut-out
Proportional controls for drive & lift functions

Features
Documents

+ Expand All
- Close All

Overall Specifications

SJIII 4626

SJIII 4632

Work Height

32’ (9.75 m)

38’ (11.58 m)

Raised Platform Height

26’ (7.92 m)

32’ (9.75 m)

Lowered Platform Height

45” (1.14 m)

48.5” (1.23 m)

Overall Width

46” (1.17 m)

46” (1.17 m)

Overall Length

91” (2.31 m)

91” (2.31 m)

Stowed Height (Rails Up)

88” (2.24 m)

88” (2.24 m)

Stowed Height (Rails Down)

70.5” (1.79 m)

74” (1.88 m)

Platform Width (Inside Dimension)

42” (1.07 m)

42” (1.07 m)

Platform Length (Inside Dimension)

84” (2.13 m)

84” (2.13 m)

Extension Deck (Roll Out)

4’ (1.22 m)

4’ (1.22 m)

Ground Clearance (Stowed)

3.5” (8.89 cm)

3.5” (8.89 cm)

Ground Clearance (raised)

0.75” (1.91 cm)

0.75” (1.91 cm)

Wheelbase

69” (1.75 m)

69” (1.75 m)

Weight

4,700 lbs (2,132 kg)

5,075 lbs (2,302 kg)

Gradeability

30%

25%

Turning Radius (Inside)

47.5” (1.21 m)

47.5” (1.21 m)

Turning Radius (Outside)

93.5” (2.37 m)

93.5” (2.37 m)

Lift Time (With Rated Load)

54 sec

59 sec

Lower Time (With Rated Load)

32 sec

49 sec

Drive Speed (Stowed)

2 mph (3.2 km/h)

2 mph (3.2 km/h)

Drive Speed (Raised)

0.6 mph (1 km/h)

0.6 mph (1 km/h)

Maximum Drive Height

Full Height

Full Height

Capacity (Overall)

1,000 lbs (454 kg)

700 lbs (318 kg)

Distributed Capacity (Main Platform)

700 lbs (318 kg)

450 lbs (204 kg)

Distributed Capacity (Extension Deck)

300 lbs (136 kg)

250 lbs (113 kg)

Local Floor Load (With Rated Load)

235 psi (1620 kPa)

220 psi (1517 kPa)

Overall Floor Load (With Rated Load)

191 psf (9 kPa)

204 psf (10 kPa)

Maximum # of Persons

3

2

Wind Rating

28 mph (12.5 m/s)

28 mph (12.5 m/s)

Tire Type

Solid, N/M

Solid, N/M

Tire Size

16 x 5 x 12

16 x 5 x 12
