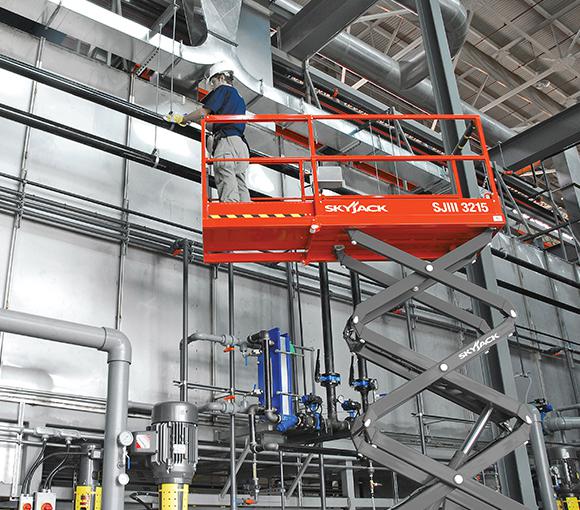

Skyjack SJIII 3215/19

Skyjack SJIII 3215/19

SJIII 3215/19

Skyjack
DC Electric Scissors

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Telematics ready
110V AC outlet on platform with GFI
28 mph wind rating (12.5 m/s)
Low voltage battery protection
Relay based control system
Color coded and numbered wiring system
Variable speed, front two wheel hydraulic drive
30% Gradeability
Lanyard attachment points
Dual holding brakes
DC Motor Controller
Solid rubber, non-marking tires
Pothole protection system
Forklift pockets and tie down/lift lugs
Operator horn
24V DC power source
All motion audible alarm
Drivable at full height
90° steering (zero inside turning radius)
Tilt alarm with drive & lift cut-out
3’ (0.91 m) Roll out extension deck
Proportional controls for drive & lift functions

Features
Documents

+ Expand All
- Close All

Overall Specifications

SJIII 3215

SJIII 3219

Work Height

21’ (6.40 m)

25’ (7.62 m)

Raised Platform Height

15’ (4.57 m)

19’ (5.79 m)

Lowered Platform Height

34.5” (0.88 m)

39” (0.99 m)

Overall Width

32” (0.81 m)

32” (0.81 m)

Overall Length

70” (1.78 m)

70” (1.78 m)

Stowed Height (Rails Up)

74” (1.88 m)

78.5” (1.99 m)

Stowed Height (Rails Down)

OPT 60.1” (1.53 m)

OPT 64.5” (1.64 m)

Platform Width (Inside Dimension)

26” (0.66 m)

26” (0.66 m)

Platform Length (Inside Dimension)

64” (1.63 m)

64” (1.63 m)

Extension Deck (Roll Out)

3’ (0.91 m)

3’ (0.91 m)

Ground Clearance (Stowed)

2.375” (6.03 cm)

2.375” (6.03 cm)

Ground Clearance (raised)

0.7” (1.78 cm)

0.7” (1.78 cm)

Wheelbase

55” (1.40 m)

55” (1.40 m)

Weight

2,400 lbs (1,089 kg)

2,580 lbs (1,170 kg)

Gradeability

30%

30%

Turning Radius (Inside)

0

0

Turning Radius (Outside)

66” (1.68 m)

66” (1.68 m)

Lift Time (With Rated Load)

23 sec

25 sec

Lower Time (With Rated Load)

24 sec

29 sec

Drive Speed (Stowed)

2 mph (3.2 km/h)

2 mph (3.2 km/h)

Drive Speed (Raised)

0.7 mph (1.1 km/h)

0.7 mph (1.1 km/h)

Maximum Drive Height

Full Height

Full Height

Capacity (Overall)

600 lbs (272 kg)

550 lbs (249 kg)

Distributed Capacity (Main Platform)

350 lbs (159 kg)

300 lbs (136 kg)

Distributed Capacity (Extension Deck)

250 lbs (113 kg)

250 lbs (113 kg)

Local Floor Load (With Rated Load)

110 psi (759 kPa)

110 psi (759 kPa)

Overall Floor Load (With Rated Load)

200 psf (10 kPa)

201 psf (10 kPa)

Maximum # of Persons

2

2

Wind Rating

28 mph (12.5 m/s)

28 mph (12.5 m/s)

Tire Type

Solid, N/M

Solid, N/M

Tire Size

12 x 4 x 8

12 x 4 x 8
