ZX-135/70

  • Genie
  • Articulated Boom Lift

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

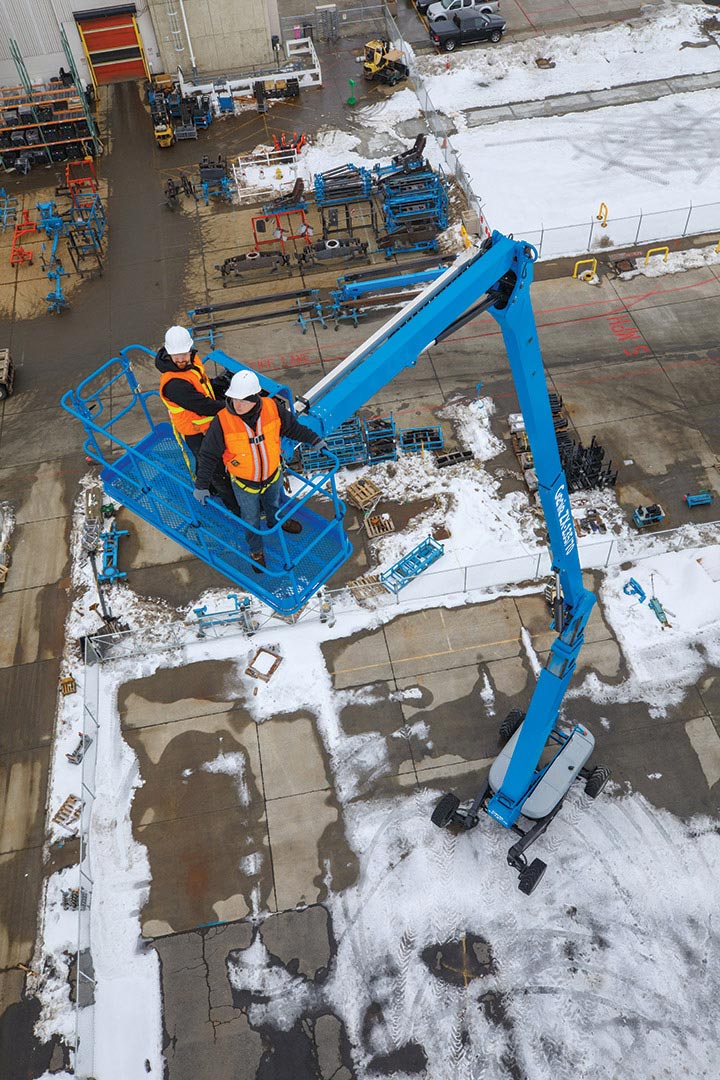

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.

Overview

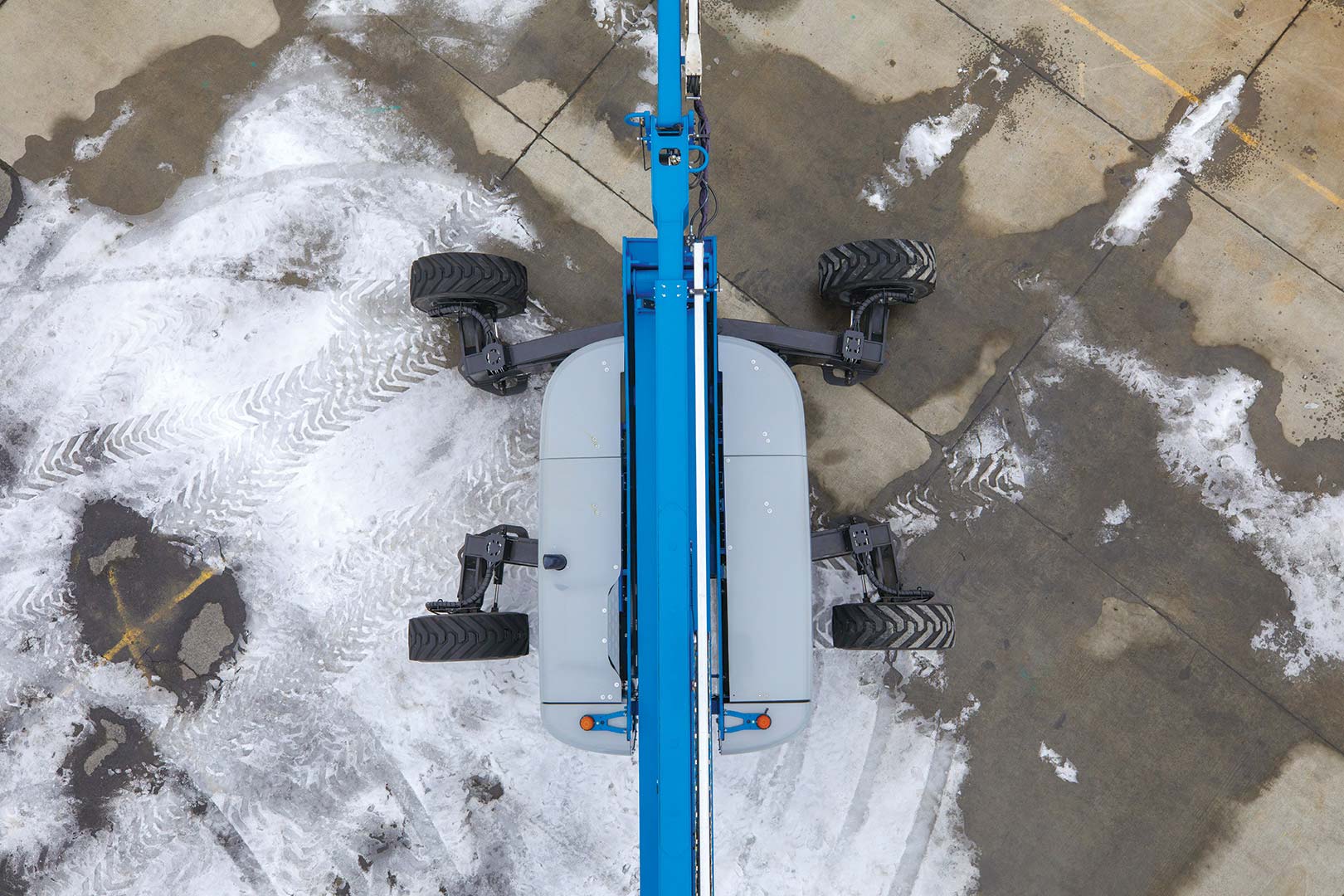

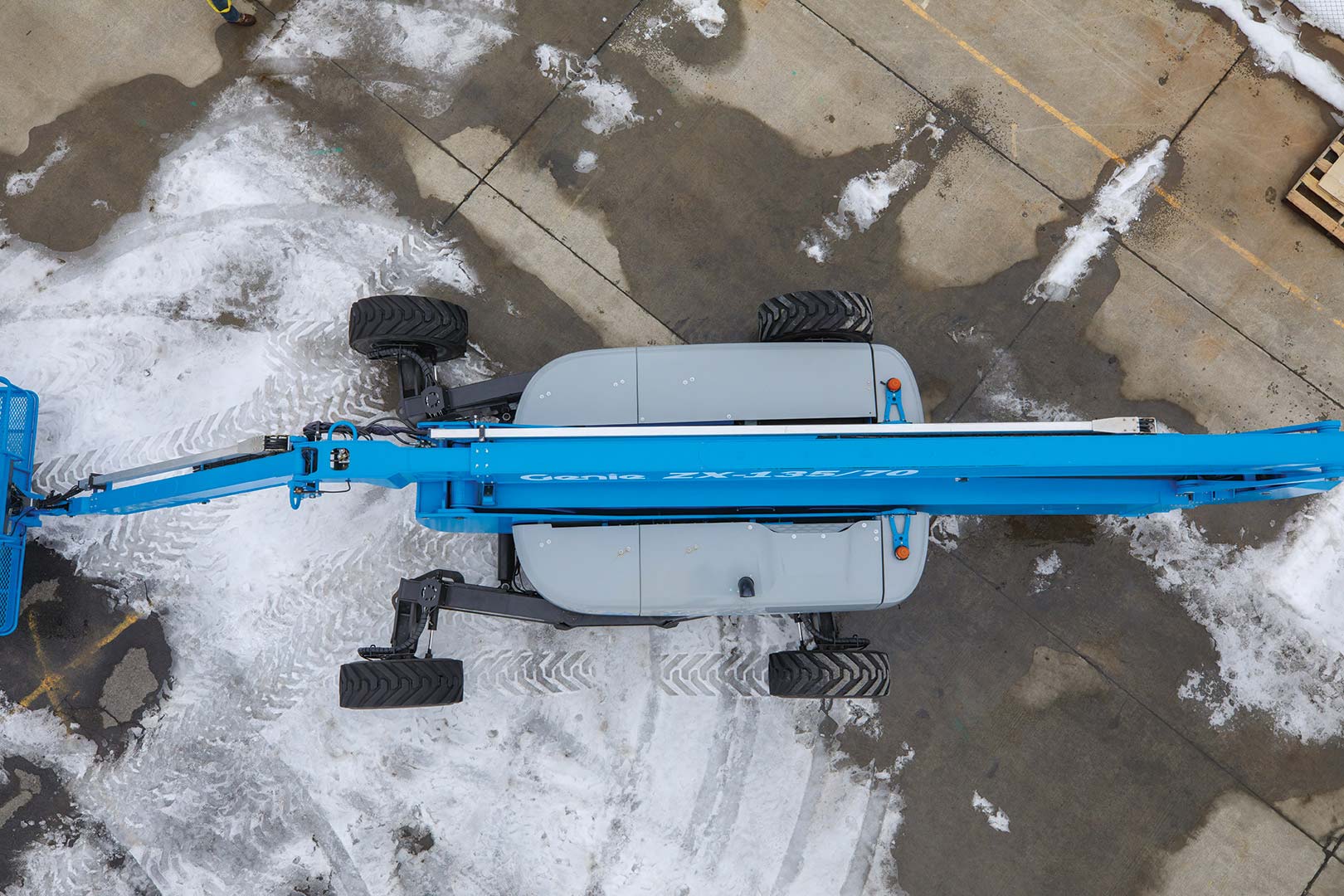

  • Mini Genie X-Chassis™ system extends and retracts to provide both stability on the job and a narrow profile for transport
  • Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion
  • 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
  • Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
  • + Expand All
  • - Close All
  • Options

    Engine Options

    • Diesel intake air pre-cleaner
    • Cold weather recirc kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation and hydraulic tank heater

    Lift/Turntable Options

    • Specialty hydraulic oil  (123 gal - cold weather, fire resistant, biodegradable)
    • Hostile environment kit: cylinder bellows, boom wiper seals, platform control box cover and boom hole covers
    • Deluxe hostile environment kit: hostile environment kit, ring gear guard, air pre-cleaner

    Platforms

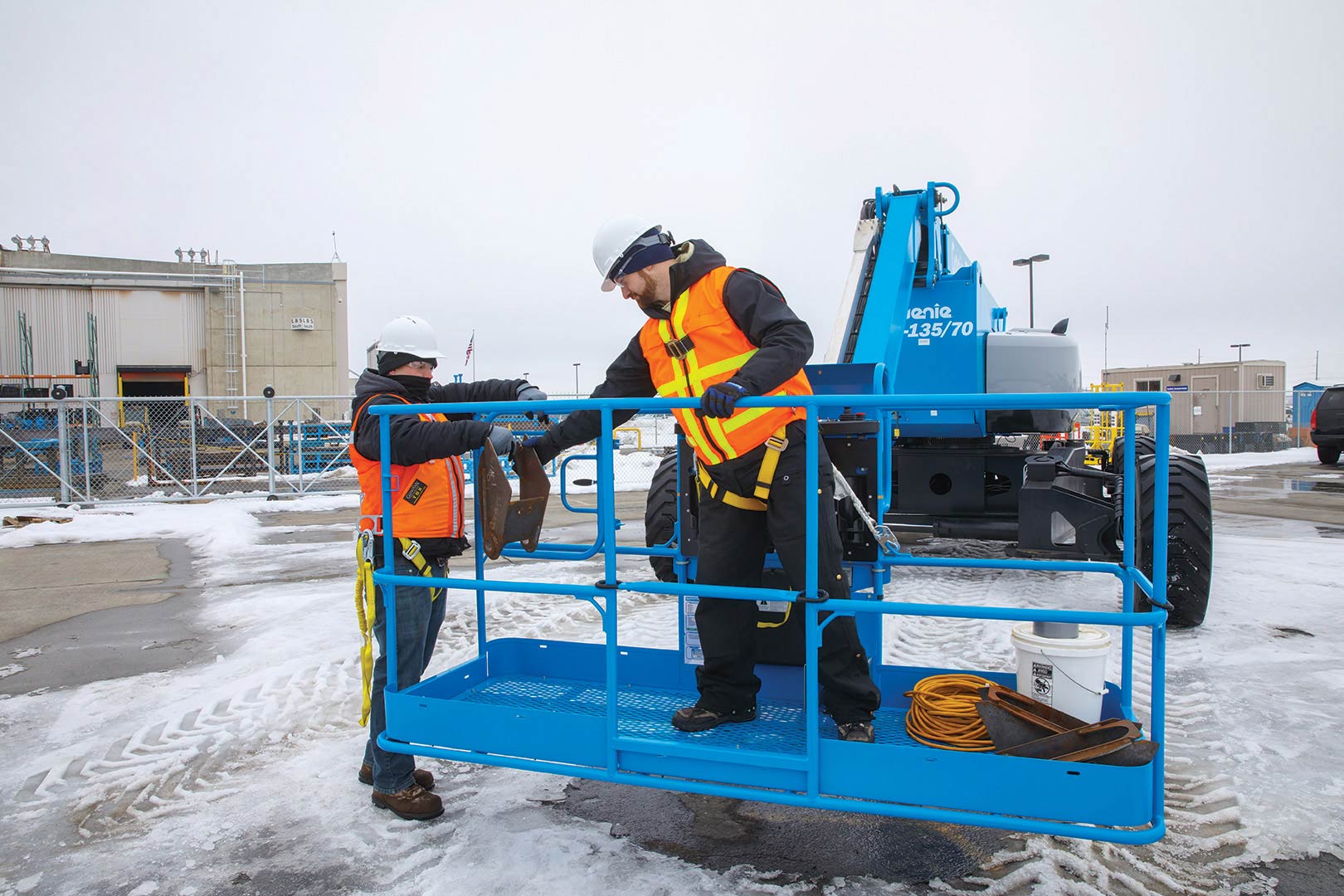

    • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts  and side swing gate
    • 6 ft. dual entry platform with side swing gate

    Platform Options

    • AC generator, 110V/60Hz or 220V/50Hz, 3000W, belt driven
    • Air line to platform: ½ in. inner diameter
    • Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
    • Panel cradle package
    • Platform auxiliary top rail
    • Platform control box cover
    • Thumb rocker steering
    • Welder - Select Lincoln or Miller
    • Welder ready package
    • Traveling fall arrest anchor system: requires 6ft platform
    • Traveling fall arrest anchor system: requires 8ft platform
  • Platform Capacity: 600 lb | 272 kg
  • Below Ground Reach: 19 ft 3 in | 5.87 m
  • Max Up and Over Clearance (riser extended): 75 ft 6 in | 23.01 m
  • Max Horizontal Reach: 69 ft 9 in | 21.26 m
  • Max Working Height: 141 ft | 43.15 m
