Z-60/37 DC and FE

  • Genie
  • Articulated Boom Lift

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

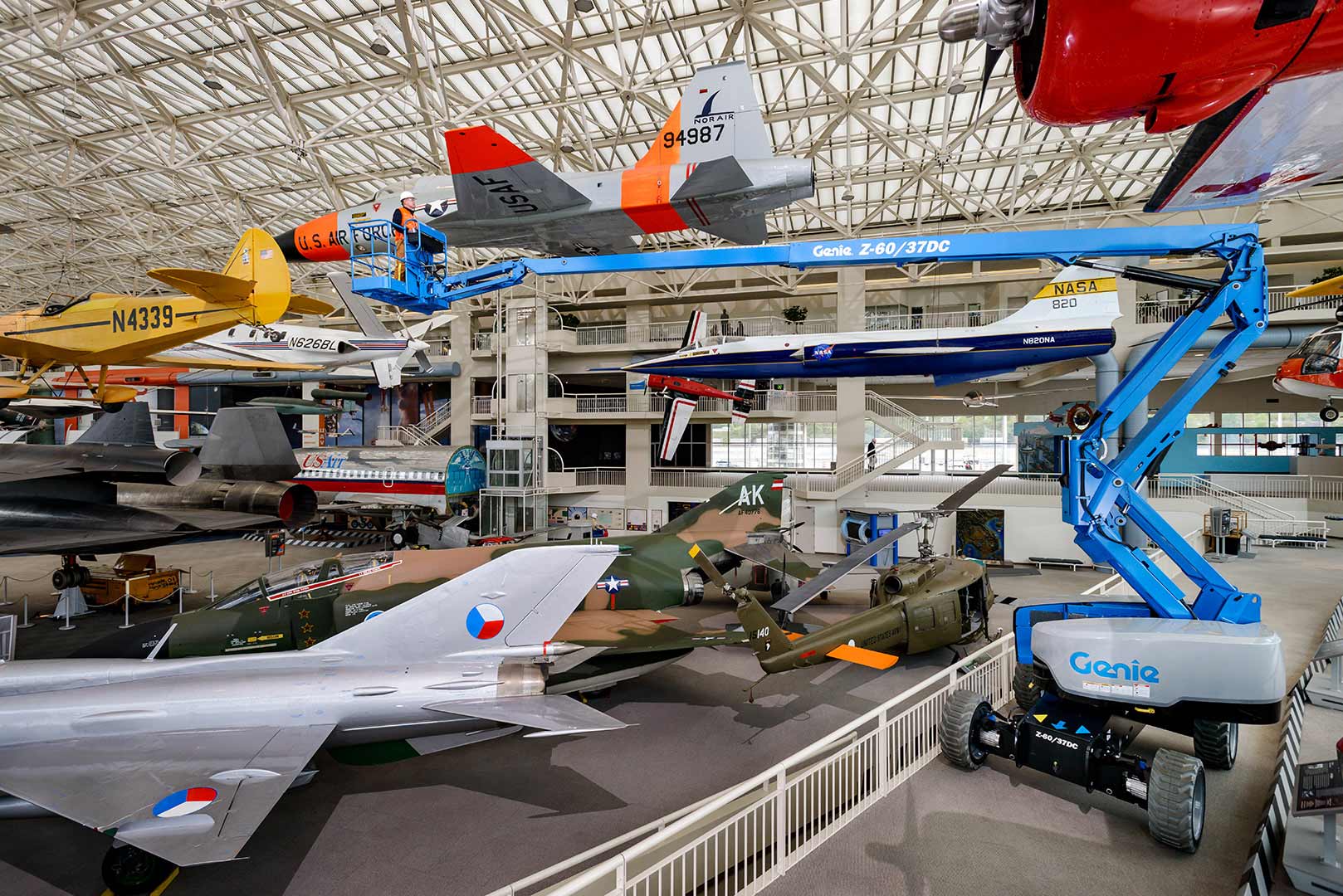

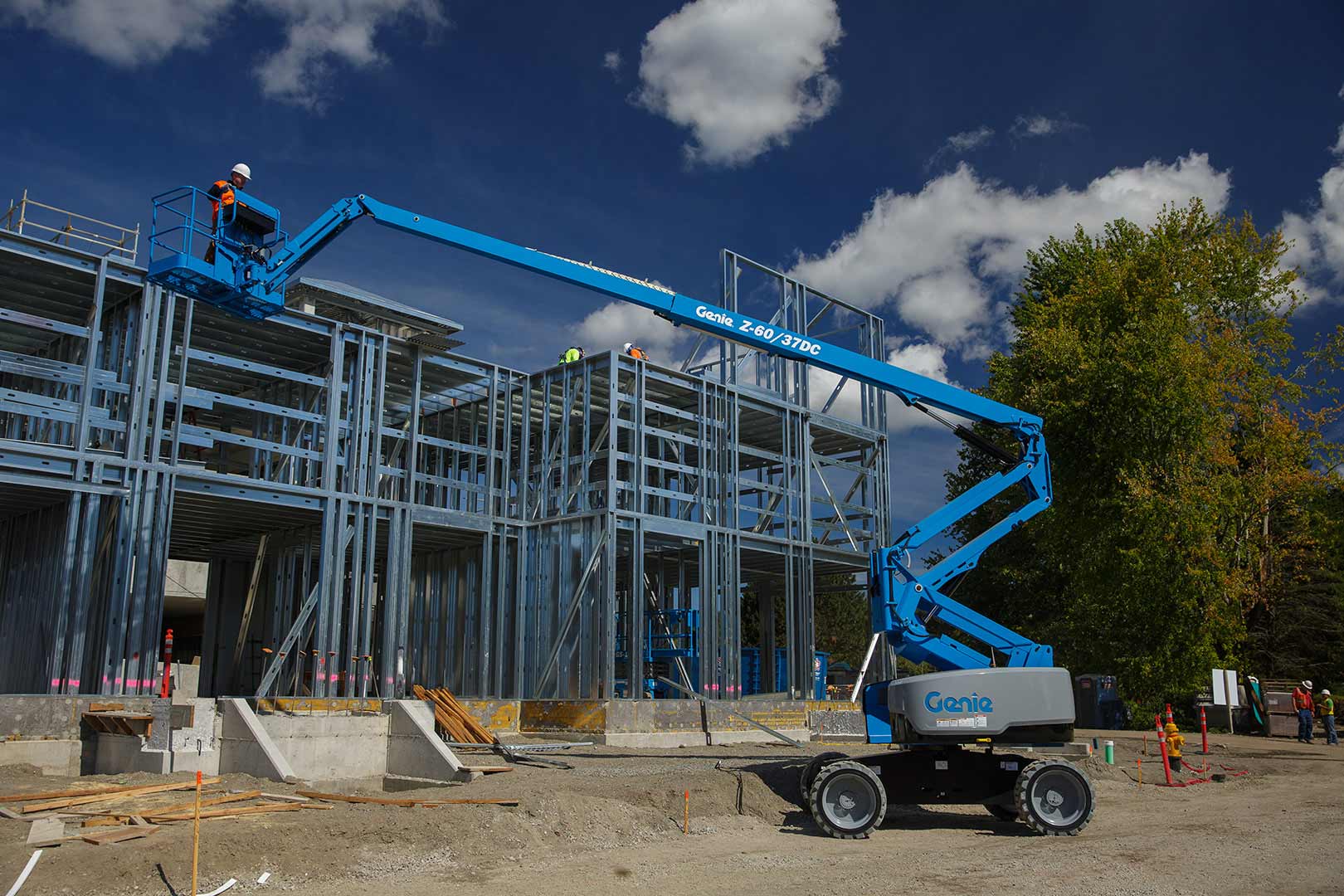

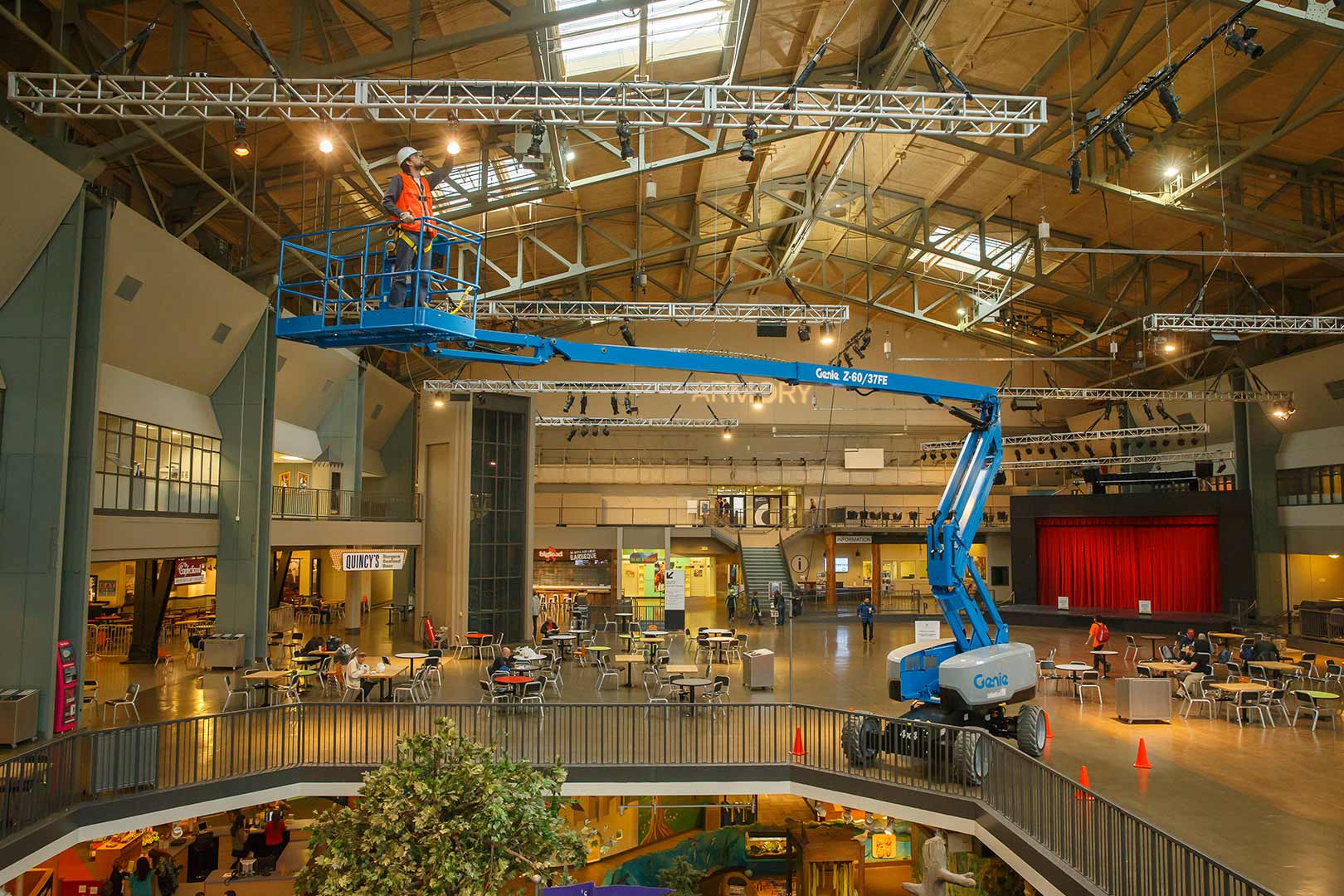

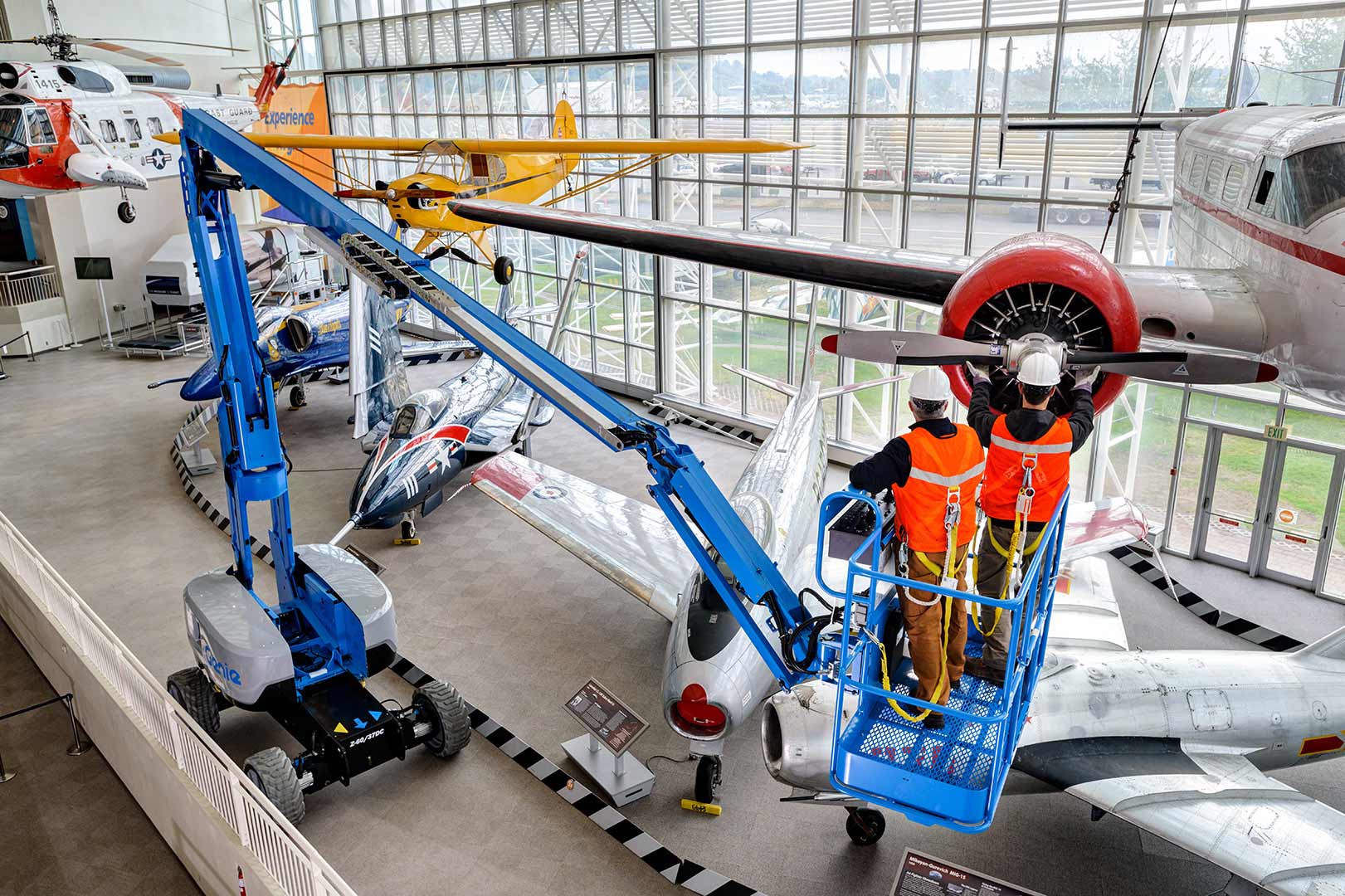

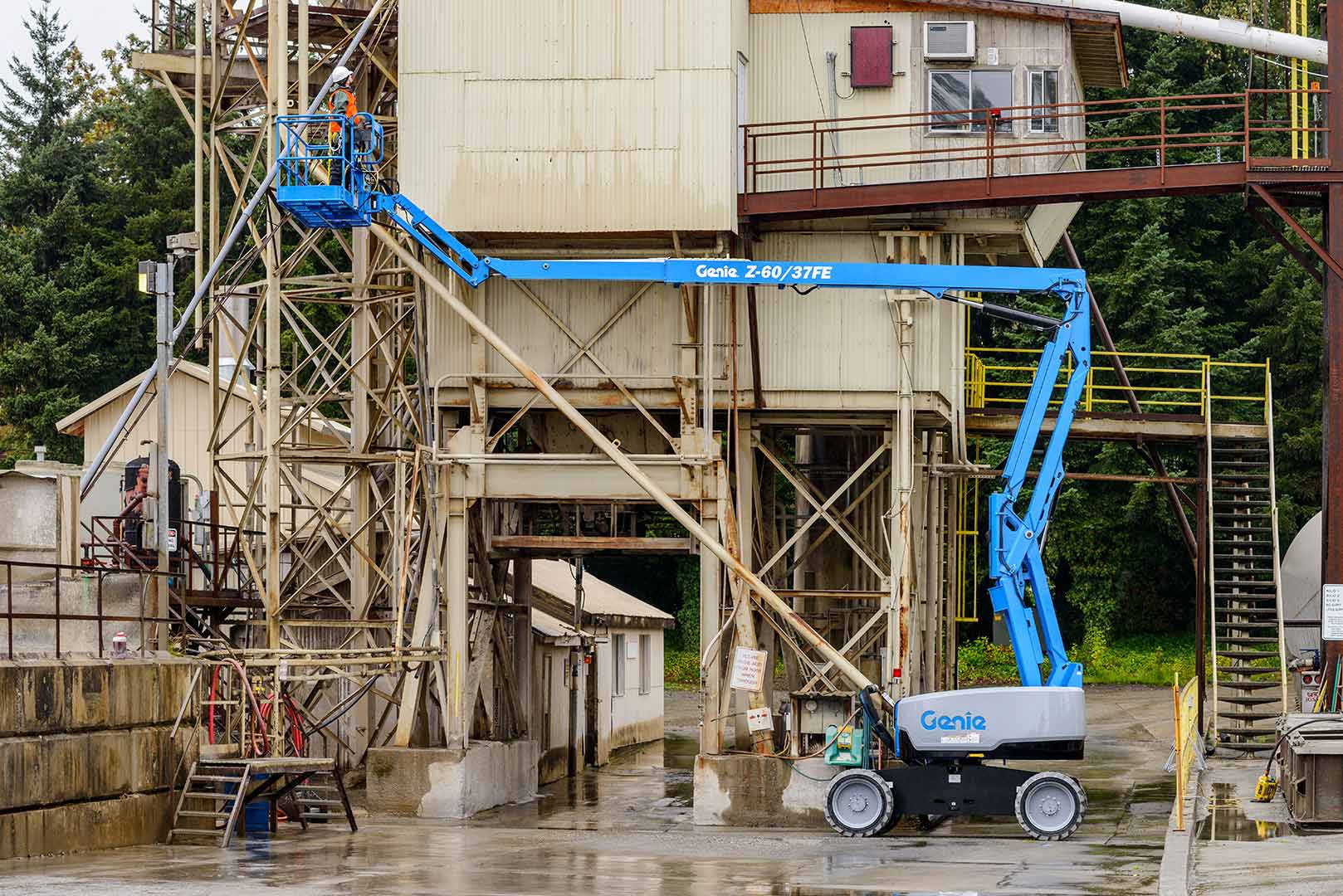

The Genie® Z®-60/37 DC all-electric articulating boom lifts and the Genie® Z®-60/37 FE fuel-electric hybrid articulating boom lifts are ideal for outdoor and indoor applications that demand low noise and clean performance, such as construction sites, sports arenas, malls, facilities, and even challenging pedestrian areas.

Overview

  • The 5-ft (1.52 m) jib features a 135° range of motion to accurately position workers
  • Genie Fast Mast™ boom system allows operators to descend and retrieve materials and to quickly return to work at height
  • 4WD and full-time active oscillating axles provide traction for gradeability up to 45%
  • Proportional control system allows for quick, precise access to work areas for increased productivity
  • + Expand All
  • - Close All
  • Options

    Chassis Options

    • Tow package

    Tires Options

    • Rough terrain foam-filled tires (water based)
    • Foam-tire fill  (petroleum based)

    Engine Options

    • Cold weather kit: 5W-40 synthetic engine oil, battery heater, engine block heater: FE Hybrid only

    Lift/Turntable Options

    • FLA (flooded lead acid) batteries: standard on DC
    • AGM maintenance-free batteries: standard on FE Hybrid
    • Specialty hydraulic oil  (28gal - cold weather, fire resistant,  or biodegradable)
    • Power inverter, 2000W, 120V AC, 60 Hz
    • Hostile environment kit: cylinder bellows, boom wiper seals and control box covers

    Platforms

    • 4 ft. 8 in. front-entry steel platform
    • 8 ft. tri entry platform with side swing gate
    • Platform with ½ height mesh inserts

    Platform Options

    • Air line to platform:  ? in. inner diameter
    • Aircraft protection kit:  platform foam padding and padded disable system
    • Aircraft protection kit: with swing gate
    • Light package: 2 chassis mounted drive lights, 2 platform mounted work lights
    • Lockable platform and ground control box covers
    • Panel cradle package
    • Platform auxiliary top rail
    • Thumb rocker steering
    • Traveling fall arrest anchor system: requires 6ft platform
    • Traveling fall arrest anchor system: requires 8ft platform
  • Max Working Height: 65 ft 7 in | 20.16 m
  • Below Ground Reach: 8 ft 1 in | 2.46 m
  • Max Up and Over Clearance (riser extended): 24 ft 3 in | 7.39 m
  • Platform Capacity: 500 lb | 227 kg
  • Max Horizontal Reach: 36 ft 7 in | 11.15 m
