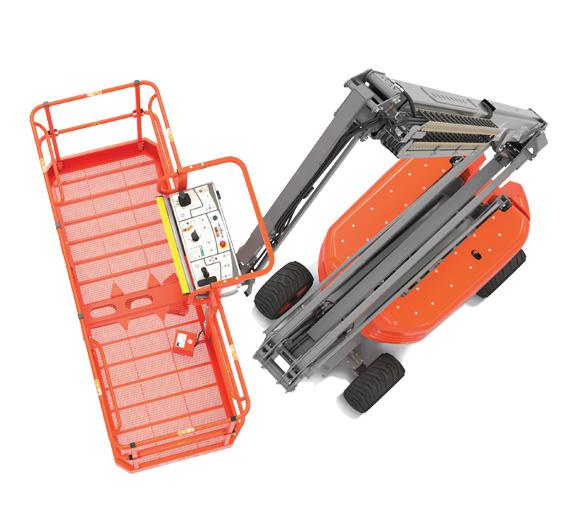

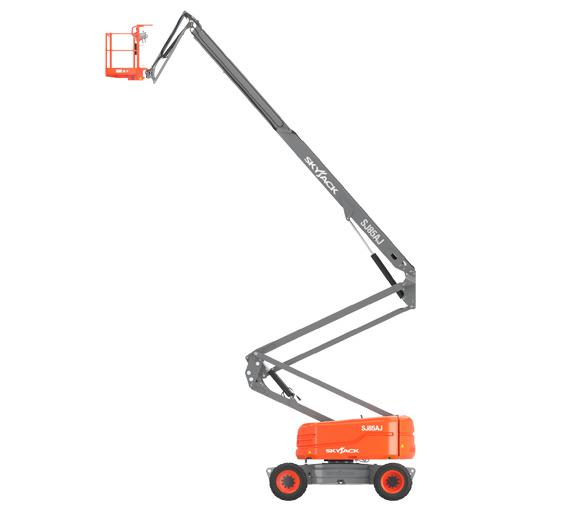

Skyjack SJ85 AJ

Skyjack SJ85 AJ

Skyjack SJ85 AJ

SJ85 AJ

Skyjack
Articulated Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

2 Year Gold Leaf Warranty (5 year structural warranty)
Hourmeter
Telematics ready
Relay based control system
110V AC outlet on platform with GFI
Oscillating axle
Color coded and numbered wiring
All motion alarm
Swing up cowlings
Tri-entry sliding mid-rails
Axle based 4WD system
Swing out engine tray
Tie down/lifting lugs
Operator controlled locking rear differential and limited
18 x 625 grip lug foam-filled tires
Proportional controls
Drivable at full height
Wet disc SAHR brakes (front and rear axle)
slip front differential
45% Gradeability
Operator horn
Modular platform railing system
Secondary Guarding (SGE)
Overload sensing system
Deutz TD2.9L4 diesel engine
360° continuous turret rotation
SkyRiser™ functionality
EasyDrive™ direction sensing drive and steer controls
SpeedyReach™ functionality

Features
Documents

+ Expand All
- Close All

Overall Specifications

Work Height

91' (27.74 m)

Platform Height

85' (25.91 m)

Horizontal Reach

56' (17.07 m)

Up and Over Height

34' (10.36 m)

Platform Size

36” x 96” (0.91 x 2.4 m)

Stowed Width

8’ 2" (2.49 m)

Tailswing

3' (0.91 m)

Stowed Height

8' 9" (2.67 m)

Stowed Length

38’ 2” (11.63 m)

Ground Clearance

13” (0.34 m)

Wheelbase

9’ 4" (2.84 m)

Rotation

360°

Platform Rotation

170°

Jib Length

5’ 6” (1.68 m)

Jib Range +/-

+65° / -60°

Weight

37,400 lbs (16,965 kg)

Gradeability

45%

Turning Radius (Inside)

10’ (3.05 m)

Turning Radius (Outside)

20’ 5” (6.22 m)

Axle Oscillation

4” (10.16 cm)

Drive Speed (High speed)

3 mph (4.8 km/h)

Capacity

500 / 750 lbs (227 / 340 kg)

Maximum # of Persons

2 / 3

Tire Type

Grip lug foam-filled

Tire Size

18-625

Diesel Engine

74 HP

Fuel Tank

30.4 gal. (115 L)

Hydraulic Reservoir

45 gal. (170 L)

Documents

NA_ENG_SJ85AJ.pdf
