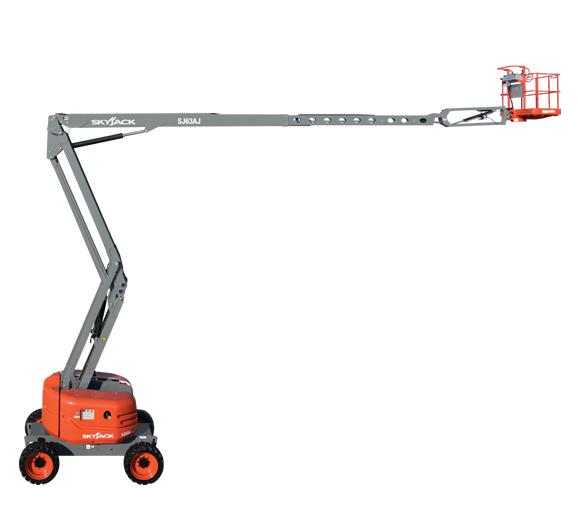

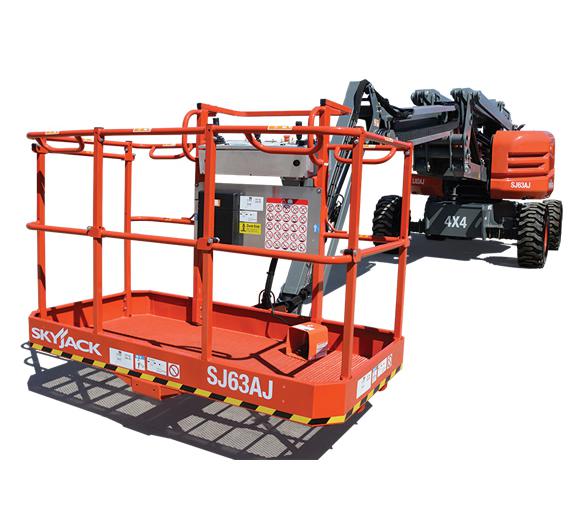

Skyjack SJ63 AJ

Skyjack SJ63 AJ

Skyjack SJ63 AJ

SJ63 AJ

Skyjack
Articulated Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Oscillating axle
Wet disc SAHR brakes (front and rear axle)
Proportional controls
Direction sensing drive and steer controls
Operator horn
Swing out engine tray
All motion alarm
Drivable at full height
Hourmeter
Tie down/lifting lugs
110V AC outlet on platform with GFI
Operator controlled locking rear differential and limited slip front differential
Color coded and numbered wiring
Tri-entry sliding mid-rails
45% Gradeability
Modular platform railing system
Axle based 4WD system
Swing up cowlings
Relay based control system
Telematics ready
Diesel or dual fuel engine
14 x 17.5 grip lug air-filled tires
360° continuous turret rotation

Features
Documents

+ Expand All
- Close All

Overall Specifications

Work Height

69’7” (21.21 m)

Platform Height

63’7” (19.38 m)

Horizontal Reach

40’ (12.19 m)

Up and Over Height

27’6” (8.38 m)

Platform Size

36” x 96” (0.91 x 2.4 m)

Stowed Width

8’ (2.44 m)

Tailswing

Zero

Stowed Height

8’4” (2.54 m)

Stowed Length

30’ (9.14 m)

Ground Clearance

13” (0.33 m)

Wheelbase

8’ (2.44 m)

Rotation

360°

Platform Rotation

170°

Jib Length

5’ 6” (1.68 m)

Jib Range +/-

+65° / -60°

Weight

21,200 lbs (9,616 kg)

Gradeability

45%

Turning Radius (Inside)

7’3” (2.21 m)

Turning Radius (Outside)

17’5” (5.31 m)

Axle Oscillation

4” (10.16 m)

Drive Speed (High speed)

4.5 mph (7.3 km/h)

Capacity

500 lbs (227 kg)

Local Floor Load (With Rated Load)

167 psi (1,151 kPa)

Overall Floor Load (With Rated Load)

245 psf (11.73 kPa)

Maximum # of Persons

2

Tire Type

Grip lug air-filled

Tire Size

14 x 17.5

Diesel Engine

74 HP

Dual Fuel Engine

82 HP

Fuel Tank

30.4 gal. (115L)

Hydraulic Reservoir

30.4 gal. (115L)
