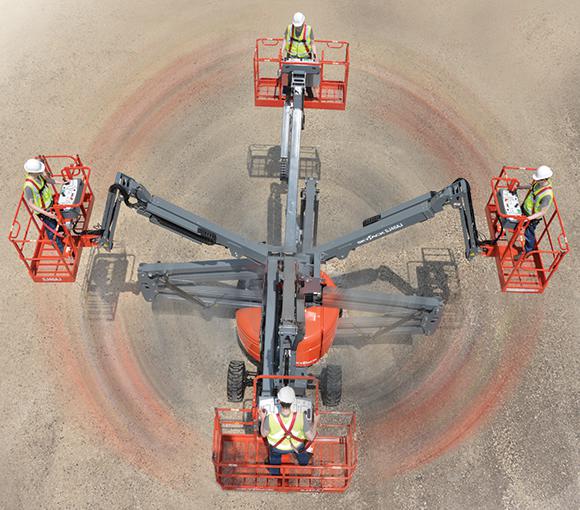

Skyjack SJ46 AJ

Skyjack SJ46 AJ

SJ46 AJ

Skyjack
Articulated Boom Lift

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

110V AC outlet on platform with GFI
Dual-entry sliding mid rails
Drivable at full height
Diesel or dual fuel engine
All motion alarm
Tie down/lifting lugs
Color coded and numbered wiring
Operator horn
Swing out engine tray
Operator controlled locking rear differential and limited slip front differential
12 x 16.5 grip lug air-filled tires
Hourmeter
Wet disc SAHR brakes (rear axle)
Oscillating axle
Telematics ready
Relay based control system
Swing up cowlings
45% Gradeability
Modular platform railing system
Axle based 4WD system
Direction sensing drive and steer controls
Proportional controls
355° Non-continuous turret rotation

Features
Documents

+ Expand All
- Close All

Overall Specifications

Work Height

52’3” (15.93 m)

Platform Height

46’3” (14.10 m)

Horizontal Reach

24’9” (7.54 m)

Up and Over Height

24’5” (7.45 m)

Platform Size

30” x 72” (0.76 x 1.83 m)

Stowed Width

90” (2.29 m)

Tailswing

Zero

Stowed Height

82” (2.06 m)

Stowed Length

21’5” (6.35 m)

Ground Clearance

16” (0.39 m)

Wheelbase

80” (2.03 m)

Rotation

355° NC

Platform Rotation

170°

Jib Length

5’ (1.52 m)

Jib Range +/-

+70° / -75°

Weight

13,300 lbs (6,033 kg)

Gradeability

45%

Turning Radius (Inside)

98” (2.49 m)

Turning Radius (Outside)

178” (4.52 m)

Axle Oscillation

5” (12.70 cm)

Drive Speed (High speed)

4.8 mph (7.7 km/h)

Capacity

500 lbs (227 kg)

Local Floor Load (With Rated Load)

115 psi (793 kPa)

Overall Floor Load (With Rated Load)

200 psf (9.58 kPa)

Maximum # of Persons

2

Tire Type

Air Filled

Tire Size

12 x 16.5

Diesel Engine

48 HP

Dual Fuel Engine

82 HP

Fuel Tank

17 gallon (64 L)

Hydraulic Reservoir

24 gallon (91 L)
